Switcher
GB
User manual

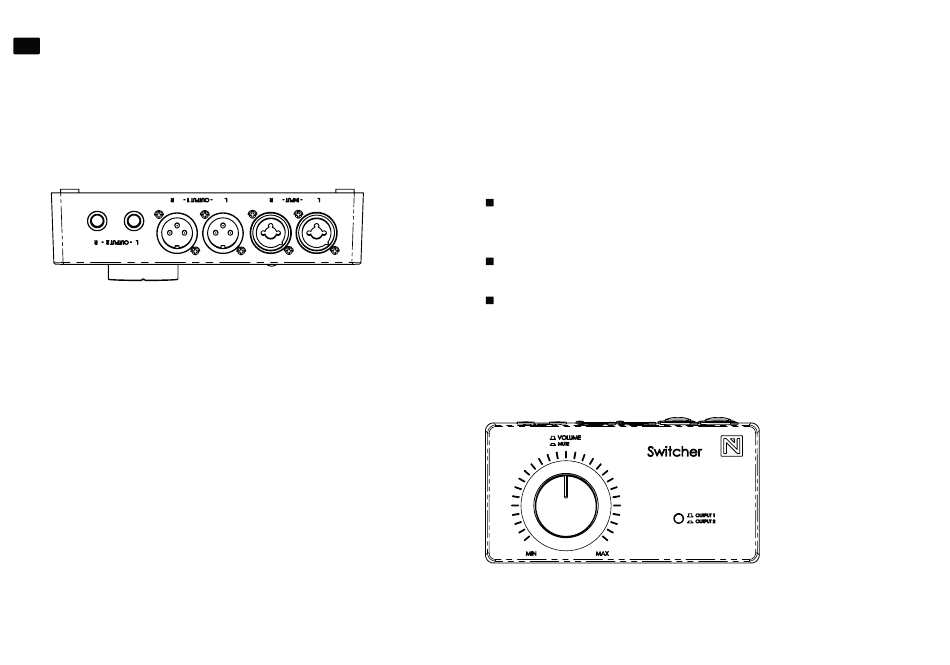

Connectors on the rear panel
You will find the following connectors on the rear panel of Switcher:
INPUT L/R:
You can connect an external audio source (e.g. the summed output
of your mixer or audio interface) to this balanced combo socket using
male XLR or 1/4" TRS jacks. Alternatively, you can plug in an unbalan-
ced source. However, please check whether the output pins are con-
nected properly and consistently. For unbalanced operation with a TS
connector the minus signal is automatically grounded.
OUTPUT 1 L/R:
The OUTPUT 1 L/R connectors are balanced XLR outputs which tap
the INPUT L/R signal behind the volume knob. These outputs are used
for connecting external powered monitors with balanced XLR inputs.
OUTPUT 2 L/R:
The OUTPUT 2 L/R connectors are balanced 1/4" TRS outputs which
tap the INPUT L/R signal behind the volume knob. For unbalanced
operation with a TS connector, the minus signal is automatically
grounded. These outputs are used for connecting external powered
monitors with balanced TRS or with unbalanced TS / RCA inputs.
Cabling
First of all, you must connect your audio source and monitoring sys-
tems with Switcher. Proceed as follows:
Using the appropriate cables, connect your source device (mixing
desk, audio interface, audio output of your computer etc.) to the XLR
or 1/4" TRS sockets INPUT L/R on the rear panel of Switcher.
Fully turn down or press the volume knob on the top panel of
Switcher: this will mute the outputs.
Connect your monitoring system (e.g. powered monitors like Ra-
dioCheck etc.) to the XLR and/or 1/4" TRS sockets OUTPUT 1 L/R and
OUTPUT 2 L/R on the rear panel of Switcher using the appropriate
cables.
Controls on the top panel
After cabling, Switcher is operated via the top panel. The following
controls are available:
