CHIEF RSA Instructions D'installation page 8

RSA Projector Mounts
INSTALLATION
1a
1
X4
2
45mm
(1-3/4")
8
X4
45mm
(1-3/4")
3
4

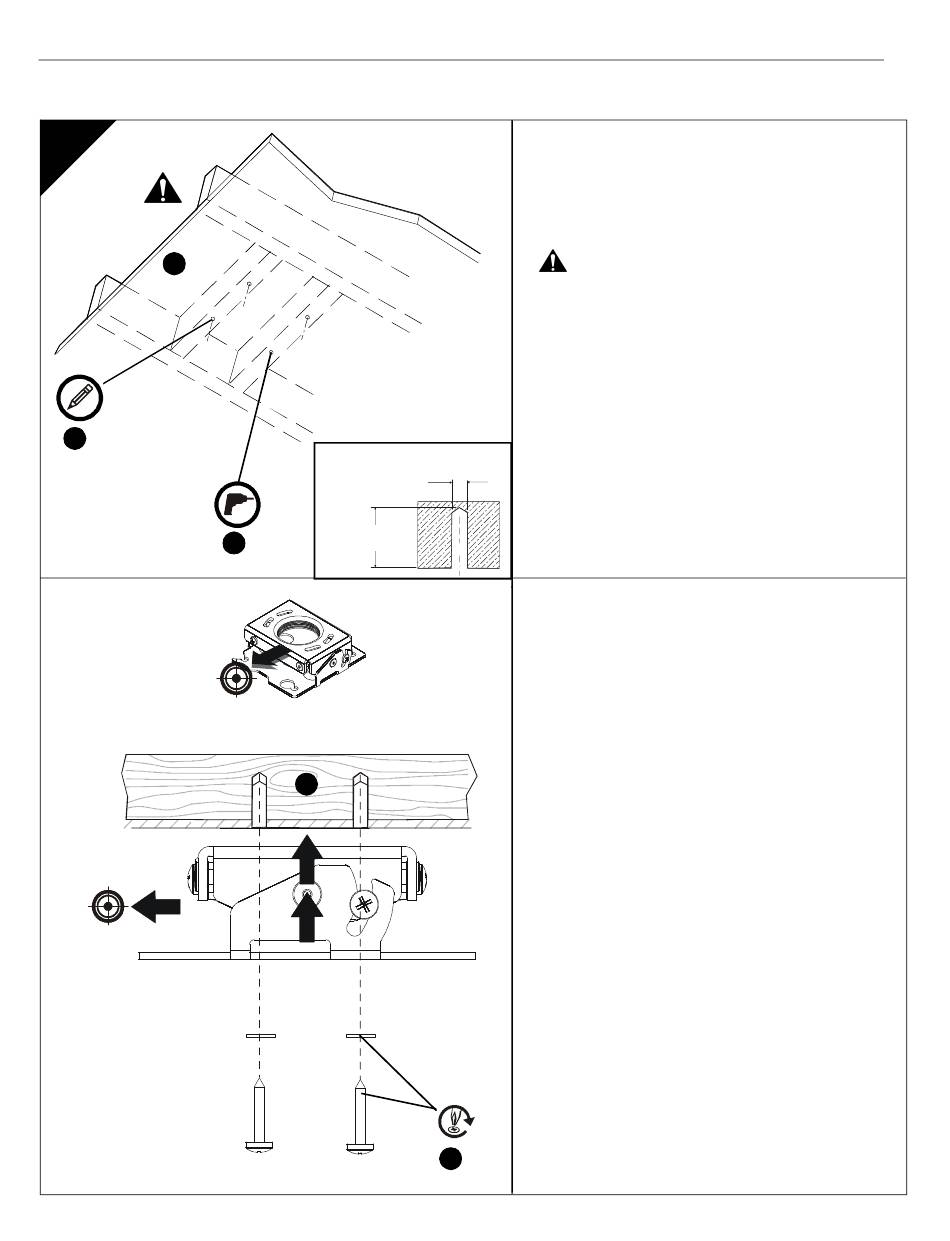

Wood Stud Installation
1. Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications for
details on determining this distance.
WARNING:
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
Ø 2.5mm
2. Using the RSA as a guide, mark four mounting hole
locations with a pencil or similar tool.
3. Drill four 3/32" (2.5mm) dia. pilot holes to a depth of
1-3/4" (45mm) deep.
(Ø 3/32")
Ø 2.5mm
(Ø 3/32")
4. Align four mounting holes in RSA with four pilot
holes.
IMPORTANT ! : Make sure mount is properly
oriented towards target before securing to
structure.
5. Secure RSA to structure using four #10 flat washers
and four #10 x 3" Phillips head wood screws (not
included).
(A)
x 4
5
Installation Instructions
IMPROPER INSTALLATION CAN
