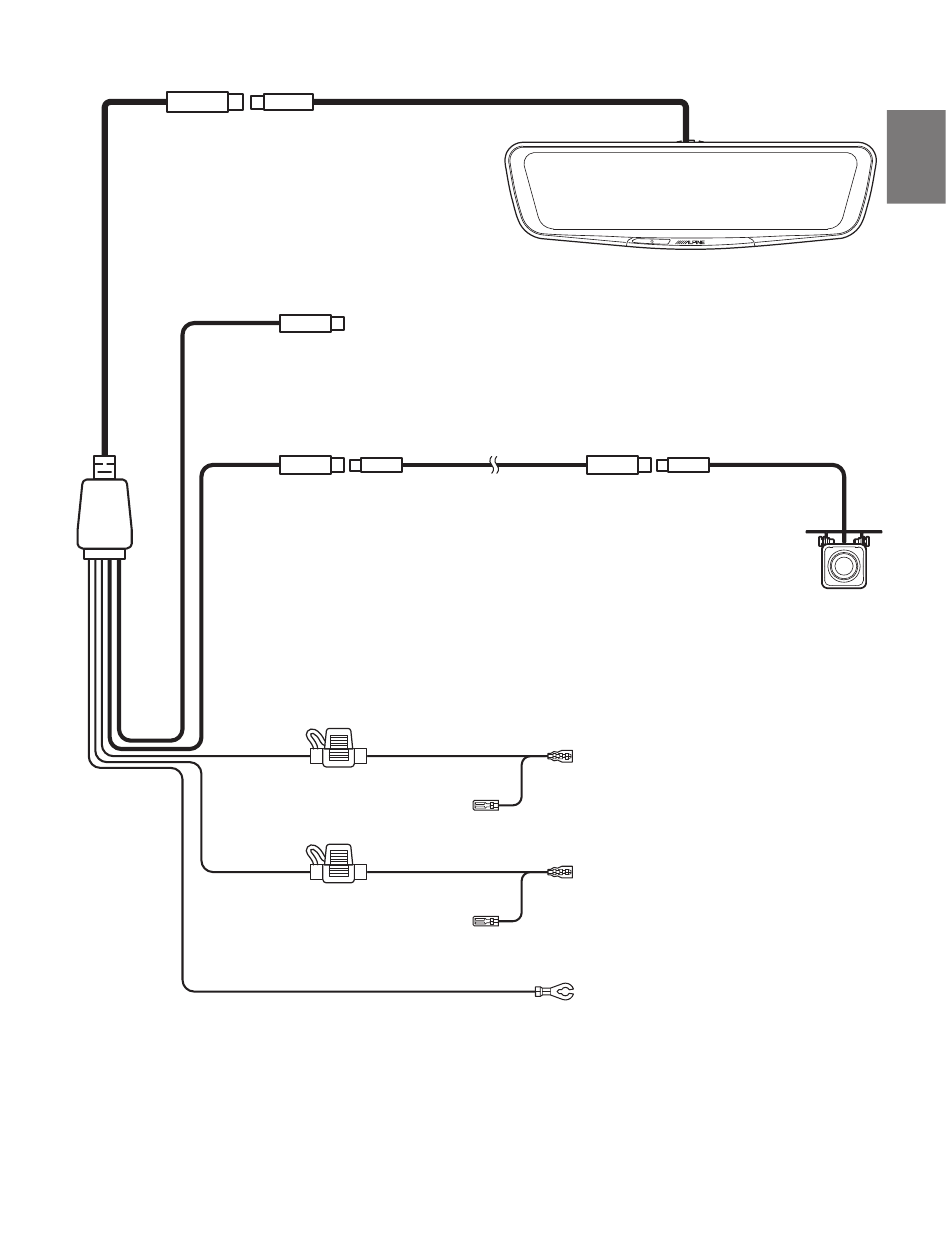

Connections
POWER
F-CAM
Not used
R-CAM
Rear Camera Extension Cable (6 m)
10 m cable optional (KWX-DM01)
Fuse
(3 A)
Fuse
(3 A)
Digital Mirror
Battery Lead: Connect this lead to the posi-
BAT
tive (+) post of the vehicle's battery (+ 12 V).
yellow
Switched Power Lead (Ignition): Connect
this lead to an open terminal on the ve-
ACC
hicle's fuse box or another unused power
red
source that provides (+) 12V only when the
ignition is turned on or in the accessory
position.
Ground: Connect this lead to a good chassis
GND
ground on the vehicle. Make sure the con-
black
nection is made to bare metal and is secure-
ly fastened using a sheet metal screw.
External rear
camera
9
-EN
EN
