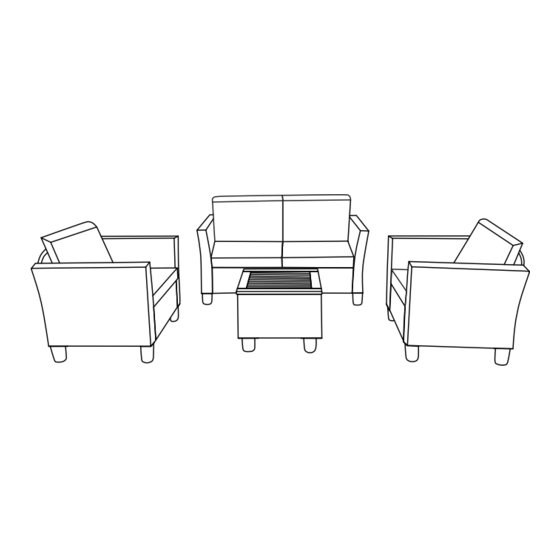

- Page 1 4-Piece Patio Conversation Set Ensemble de Conversation de Patio 4 Pièces HW72334 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 4 EN: Notice ● 50% tighten before fixing all screws. Allen wrench is recommended instead of an electric drill. ● Place the item on a flat ground to adjust and make sure it remains stable. ● Tighten up all screws with tools gradually. ●...
- Page 5 PARTS LIST / LISTE DES PIÈCES Seat frame of armchair Right arm /Cadre de siège du fauteuil /Accoudoir droit B x3 A x2 Left arm Back frame of armchair /Cadre de dossier du fauteuil /Accoudoir gauche C x3 D x2 Seat cushion of armchair Back cushion of armchair / Coussin de siège du fauteuil...
- Page 6 Front frame of table Left frame of table /Cadre avant de la table /Cadre gauche de la table G x1 H x1 Back frame of table Right frame of table /Cadre arrière de la table /Cadre droit de la table J x 1 I x1 Bottom frame of table...
- Page 7 Back frame of bench /Cadre de dossier du banc O x1 Hardware List / Liste des Accessoires M6 x 40mm M6 x 35mm M6 x 30mm Bolt / Boulon Bolt / Boulon Bolt / Boulon M6x14x1mm M4x15mm M8x5x12mm Steel washer Screw / Vis Nut / Écrou /Rondelle en acier...
- Page 8 M6x8x2mm Ring steel washer Allen key /Rondelle en acier /Clé Allen annulaire...
- Page 12 The foot pads can be adjusted, suitable for uneven floors. Les coussinets de pied peuvent être réglés pour s'adapter aux sols irréguliers.
- Page 15 The foot pads can be adjusted, suitable for uneven floors. Les coussinets de pied peuvent être réglés pour s'adapter aux sols irréguliers.
- Page 19 The foot pads can be adjusted, suitable for uneven floors. FR: Les coussinets de pied peuvent être réglés pour s'adapter aux sols irréguliers.
- Page 20 Finished / Terminé...
- Page 21 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 22 USA office: Fontana AUS office: Truganina FRA office: Saint Vigor d'Ymonville GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
