Machine Interface Receptacle with Voltage Divider PCB
Kit 228697 contents (Powermax65 and Powermax85)
Part number
075534
223036
Kit 228884 contents (Powermax105 and Powermax125)
Part number
075534
223263
2
3
1
1 Machine interface receptacle
2 Screws (4)
3 Ground wire to air filter assembly
4 Voltage divider PCB wire
Disconnect the power and gas supply
1. Set the plasma power supply
to OFF (O)
2. Disconnect the power cord
from the power source
3. Disconnect the gas
supply .
3
4
Description
Plastite #6 X 5/16 pan head screw
Machine interface receptacle with cables and voltage divider PCB
Description
Plastite #6 X 5/16 pan head screw
Machine interface receptacle with cables and voltage divider PCB

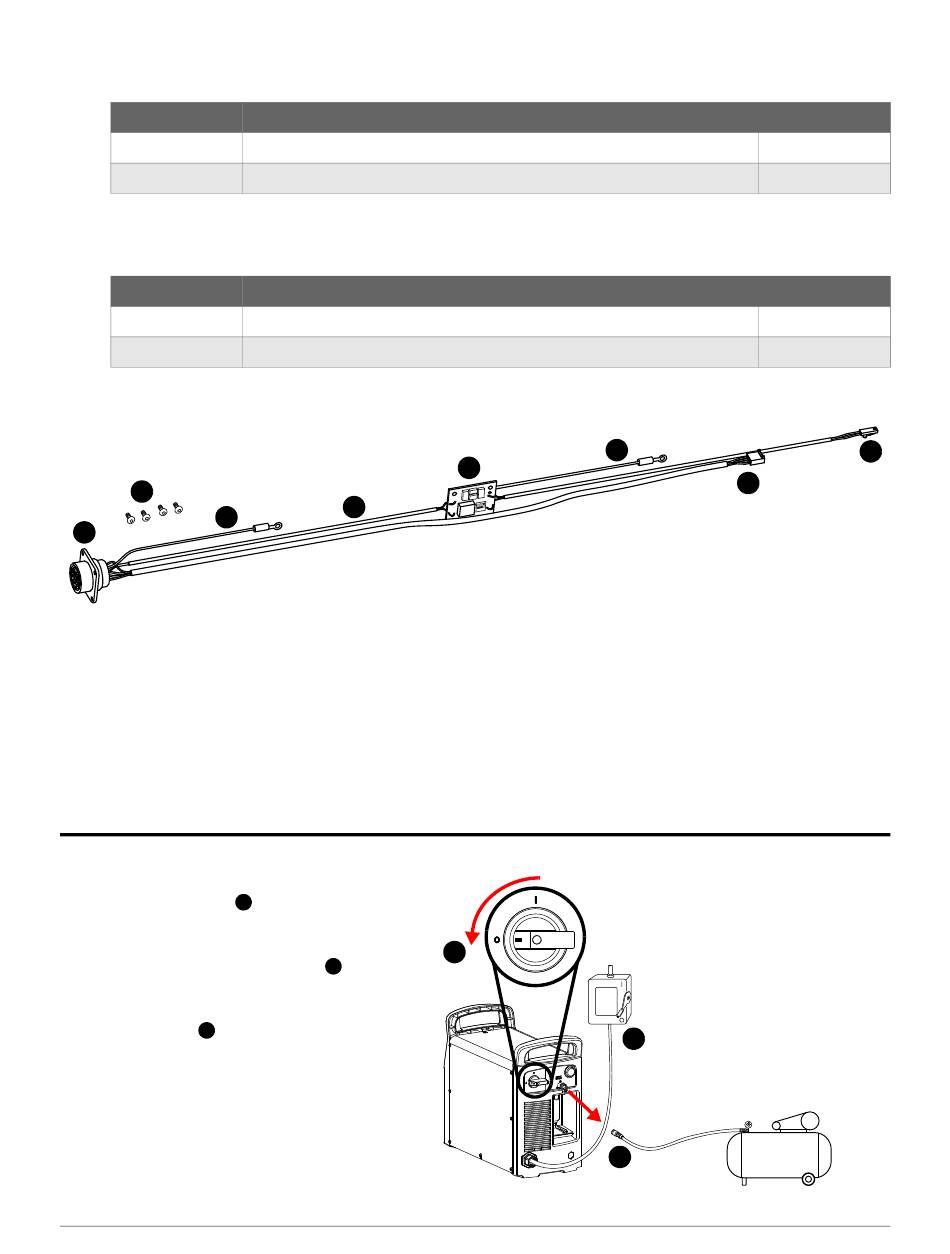

Figure 1 – Kit contents for kits 228697 and 228884
4
.
1
.
2
6
5
5 Voltage divider PCB
6 Ground wire to middle panel
7 Power PCB 4-pin connector
8 Power PCB 2-pin connector
1
2
3
806980 Field Service Bulletin
Quantity
4
1
Quantity
4
1
8
7
Powermax65/85/105/125
