LITTER BOX CaT shelf
support@litterbox.com | 1.877.250.7729 | Mon-Fri, 9am-5pm EST
If you have assembly questions or need a replacement part, please contact Sauder directly at www.sauder.com or 800-445-1527.
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)
Publicité
Sommaire des Matières pour Sauder LITTER BOX 427331

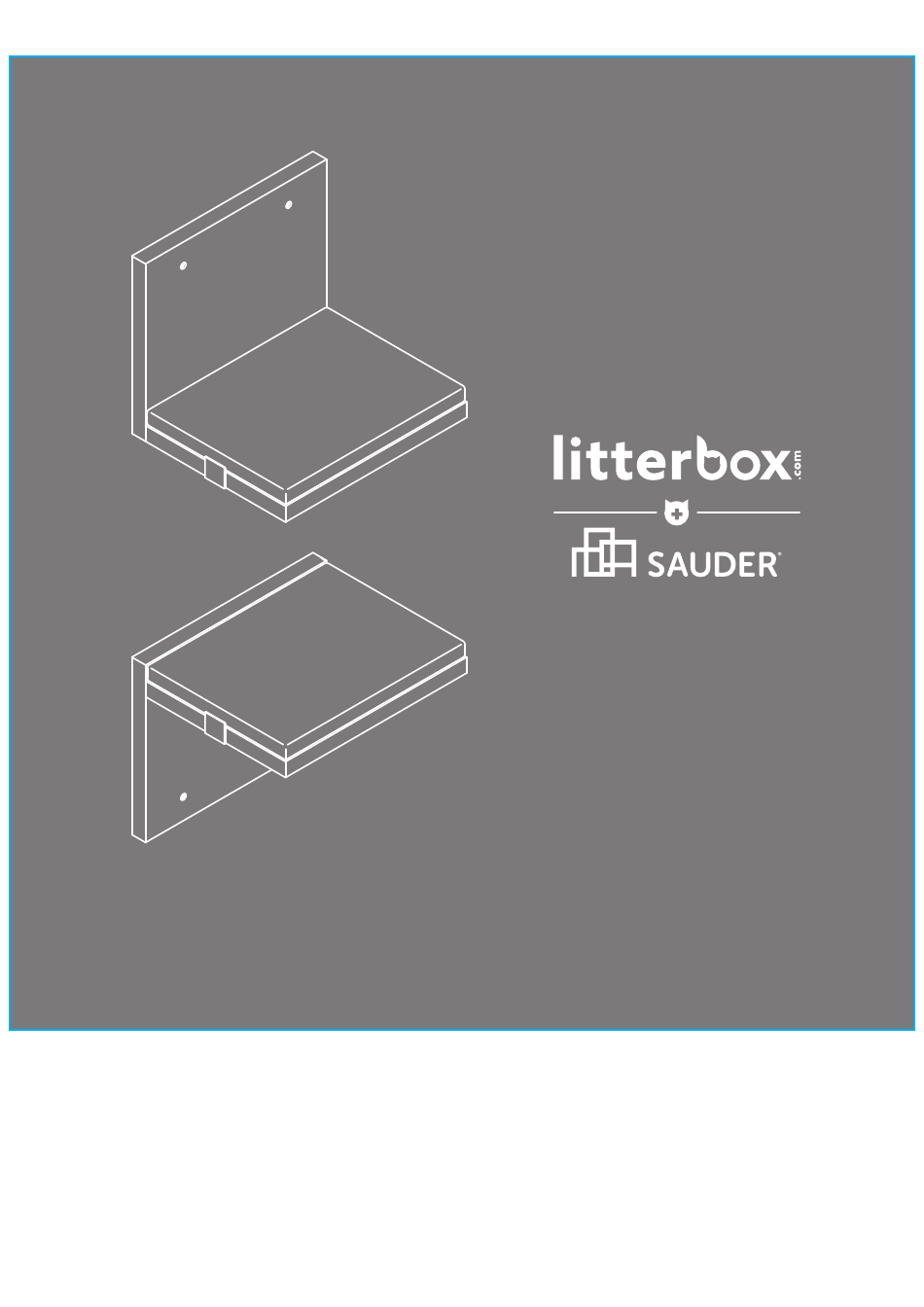

- Page 1 LITTER BOX CaT shelf support@litterbox.com | 1.877.250.7729 | Mon-Fri, 9am-5pm EST If you have assembly questions or need a replacement part, please contact Sauder directly at www.sauder.com or 800-445-1527. Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)
- Page 2 THANK YOU FOR PURCHASING THE LITTER BOX caT shelf! I am thrilled that Litterbox.com and Sauder furniture have partnered together to bring you the highest-quality cat furniture. At Litterbox.com, we believe in offering products that are thoughtfully designed and carefully curated to best meet your needs.
- Page 3 Now you know Part IdentificATION our ABCs. While not all parts are labeled, some of the parts will have a label or an inked letter on the edge å to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. BACK (2) SHELF (2) CUSHION (2)
- Page 4 Step 1 View our assembly video at www.litterbox.com/support You have the option to mount your units as shown in å Option #1 and #2. Steps 1-3 show the assembly with the SHELF above and steps 4-6 show the assembly with the Go on, spoil ' e m a little.
- Page 5 Step 2 1st-Hold your unit level against the wall in its fi nal location. Strike a mark through the holes onto the wall. å 2nd-Place your unit onto the fl oor and drill a 5/16" hole on each mark. å 3rd-While you squeeze the wings together, gently tap four WALL ANCHORS (2) into the holes until they are even with å...
- Page 6 Step 3 Slide the CUSHION (C) onto the SHELF (B) by wrapping the å strap of the cushion around the SHELF. Peel APPLIQUES from the APPLIQUE CARD (3) and stick å them on the screw heads. Option #1 Steps 1-3 Page 6 427331 www.litterbox.com/support...
- Page 7 Step 4 Insert two WOOD DOWELS (1) into the SHELF (B). å Fasten the SHELF (B) to the BACK (A). Tighten three 2-3/8" å HEX HEAD SCREWS (6) with the L-WRENCH (4). Option #2 Steps 4-6 2-3/8" HEX HEAD SCREW (3 used in this step) Thinking outside the litter box.
- Page 8 Step 5 1st-Hold your unit level against the wall in its fi nal location. Strike a mark through the holes onto the wall. å 2nd-Place your unit onto the fl oor and drill a 5/16" hole on each mark. å 3rd-While you squeeze the wings together, gently tap four WALL ANCHORS (2) into the holes until they are even with å...
- Page 9 Step 6 Slide the CUSHION (C) onto the SHELF (B) by wrapping the strap å of the cushion around the SHELF. Peel APPLIQUES from the APPLIQUE CARD (3) and stick them on å Option #2 the screw heads. Steps 4-6 NOTE: Please read the back pages of the instruction booklet for å...
- Page 10 DESCRIPTION QUANTITÉ REFERENCE DESCRIPTION QUANTITÉ conserver le livret pour future référence. Pour contacter Sauder en ARRIÈRE ..........2 CHEVILLE EN BOIS ......4 ce qui concerne cet TABLETTE ...........2 DISPOSITIF D' A NCRAGE MURAL ...8 élément, faire référence au numéro de lot et COUSSIN ..........2...
- Page 11 ÉTAPE 1 ÉTAPE 4 Il est possible de monter vos unités comme indiqué dans les Insérer deux CHEVILLES EN BOIS (1) dans la TABLETTE (B). options # 1 et # 2. Les étapes 1 à 3 montrent l'assemblage avec Fixer la TABLETTE (B) à l' A RRIÈRE (A). Serrer trois VIS TÊTE HEX la TABLETTE ci-dessus et les étapes 4 à...
- Page 12 DORSO ..........2 PASADOR DE MADERA ......4 Si necesita ponerse en ESTANTE ..........2 ANCLAJE DE PARED ......8 contacto con Sauder en cuanto a esta unidad, COJÍN ..........2 TARJETA CON APLICACIONES ....1 refi érase al número LLAVE EN L ..........1 de lote y al número de...
- Page 13 PASO 1 PASO 4 Usted tiene la opción de montar sus unidades como se muestra Inserte dos PASADORES DE MADERA (1) en el ESTANTE (B). en la opción # 1 y # 2. Los pasos 1-3 muestran el ensamblaje con Fij e el ESTANTE (B) al DORSO (A).
- Page 14 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Properly mounting the cabinet to the wall. •...
- Page 15 à Sauder dans les limites de couverture de la mobilier Sauder. Le mot « défaut », tel qu’il est utilisé sous les termes de la présente garantie. La garantie ne peut pas être transférée à des propriétaires ou utilisateurs garantie, comprend les imperfections des pièces qui empêchent substantiellement...
- Page 16 | 1.877.250.7729 | Mon-Fri, 9am- pm EST (except holidays) Learn more at www.litterbox.com/support General Conformity Certificate This certificate applies to the Sauder Woodworking Product identified by this Instruction Book. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
