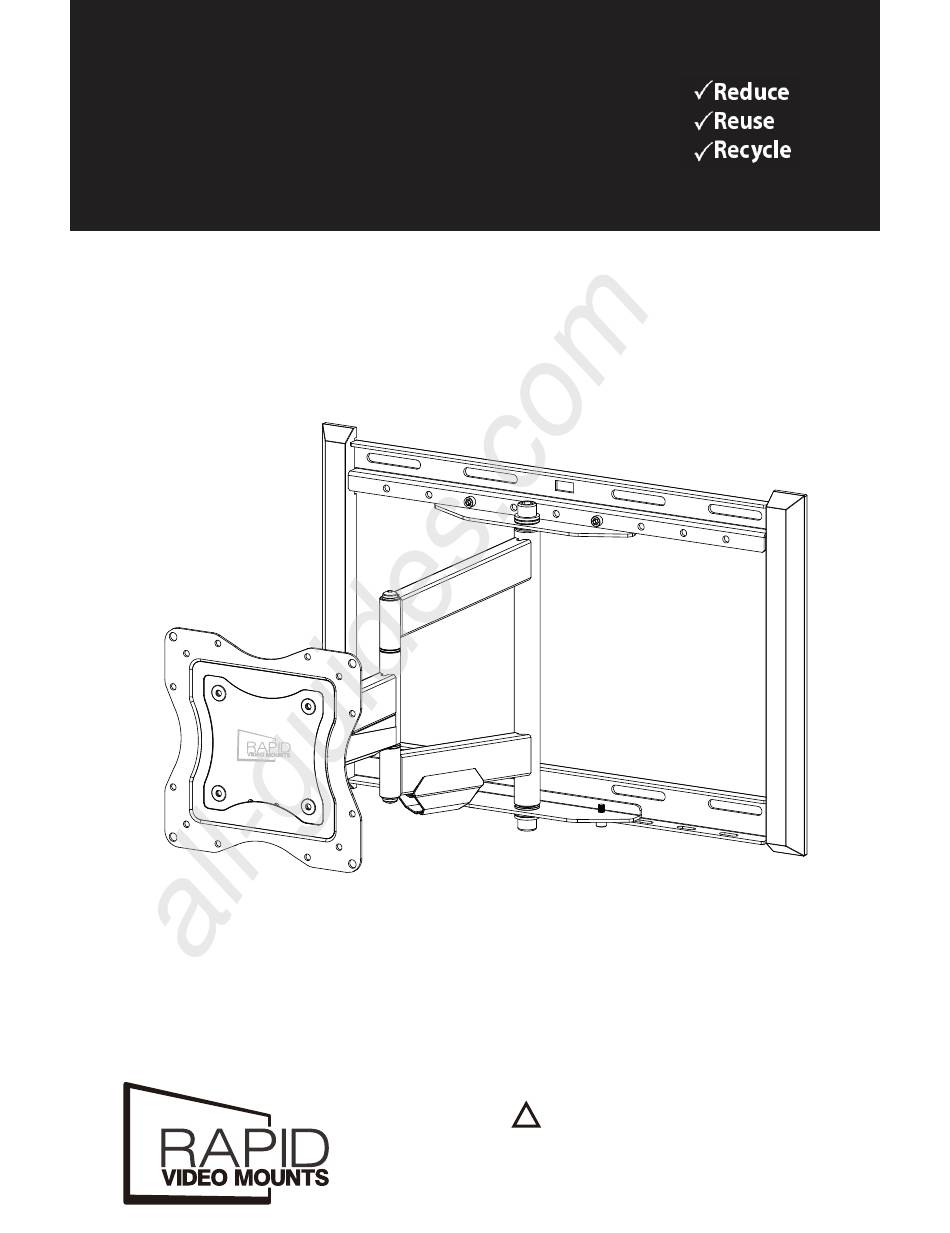

RVM-44FM70D
Medium-Large Full Motion TV Mount
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
All manuals and user guides at all-guides.com
!
CAUTION:
THE MAXIMUM LOADING WEIGHT
IS 70 LBS. USE WITH PRODUCTS HEAVIER THAN
THE MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Max Screen Size: 60"
V1
P 1
Publicité
Manuels Connexes pour Rapid video mounts RVM-44FM70D
Sommaire des Matières pour Rapid video mounts RVM-44FM70D
- Page 1 All manuals and user guides at all-guides.com RVM-44FM70D Medium-Large Full Motion TV Mount INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: THE MAXIMUM LOADING WEIGHT IS 70 LBS. USE WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHT INDICATED MAY RESULT IN INSTABILITY AND POSSIBLE PERSONAL INJURY.
- Page 2 RAPID VIDEO MOUNTS no ofrece ninguna garantía, ni expresa ni implícita, respecto de la información aquí incluida. RAPID VIDEO MOUNTS no se responsabiliza de la precisión de la información provista en este documento, ni tampoco de que sea completa o suficiente.
- Page 3 TOOLS NEEDED All manuals and user guides at all-guides.com Herramientas Necesarias Outils Requis 7/32” 3/8” 5.5 mm 10 mm SYMBOLS 150lbs Socket Wrench Caution Tighten Pencil Mark Screwdriver Drill Level Heavy! Llave española Precaución Ajustar Marque con lápiz MW150F64 Destornillador Agujerear Nivel Tres Lourd!
- Page 4 HARDWARE PRODUCT NUMBERS All manuals and user guides at all-guides.com 10mm SQUARE M8 x 30 M4 x 30 M5 x 30 M6 x 30 M8 x 15 M4 x 12 M5 x 12 M6 x 15 SPACER SPACER WASHER ALLEN WALL LAG BOLT LAG BOLT...
- Page 5 STEP 1- REMOVE MONITOR PLATE FROM MOUNT All manuals and user guides at all-guides.com Remove and save Phillips head screws and washers. Screws and washers will be used to reattach monitor plate in step 6. STEP 2A- MONITOR PLATE ATTACHMENT Connect monitor plate to TV Conecte el adaptador al monitor Connectez l'adaptateur au moniteur...
- Page 6 STEP 2B- MONITOR ADAPTERS ATTACHMENT TO MONITOR PLATE All manuals and user guides at all-guides.com Connect monitor plate with adapters to TV (if necessary) Conecte el adaptador al monitor Connectez l'adaptateur au moniteur Note: See page 3 for other monitor plate configurations. STEP 2C- CURVED BACK TV (MONITOR PLATE) Connect monitor plate to TV Conecte el adaptador al monitor...
- Page 7 STEP 2- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT All manuals and user guides at all-guides.com ARE TOO LONG Diagrams show three possible options for using additional washers if hardware screw are too long to properly tighten into back of TV.
- Page 8 STEP 4A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3B) All manuals and user guides at all-guides.com Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
- Page 9 STEP 4B – SOLID CONCRETE INSTALLATION All manuals and user guides at all-guides.com Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED...
- Page 10 STEP 5 - ATTACH ARM ASSEMBLY TO WALL BRACKET All manuals and user guides at all-guides.com Position Arm Assembly to desired lateral position on wall bracket for opti- mum placement of TV. Secure Arm Assembly to Wall plate using screws removed from Step 3.
- Page 11 STEP 7- ADJUST TILT TENSION/ POST INSTALLATION LEVEL All manuals and user guides at all-guides.com Locking mechanism Mecanismo de fijación Mécanisme de verrouillage a) Rotate handle clockwise Secure Monitor Plate to Arm TV can be leveled (+/-3 as far as possible. using 2 Phillips head screws degrees) as needed.
- Page 12 Esta garantía se aplica a los residentes de los Estados Unidos que realizaron la compra en un distribuidor autorizado de RAPID VIDEO MOUNTS. Esta garantía cubre los productos RAPID VIDEO MOUNTS de los defectos de materiales y de mano de obra por un periodo de 5 años. RAPID VIDEO MOUNTS, a su exclusivo criterio, reparará o reemplazará...
