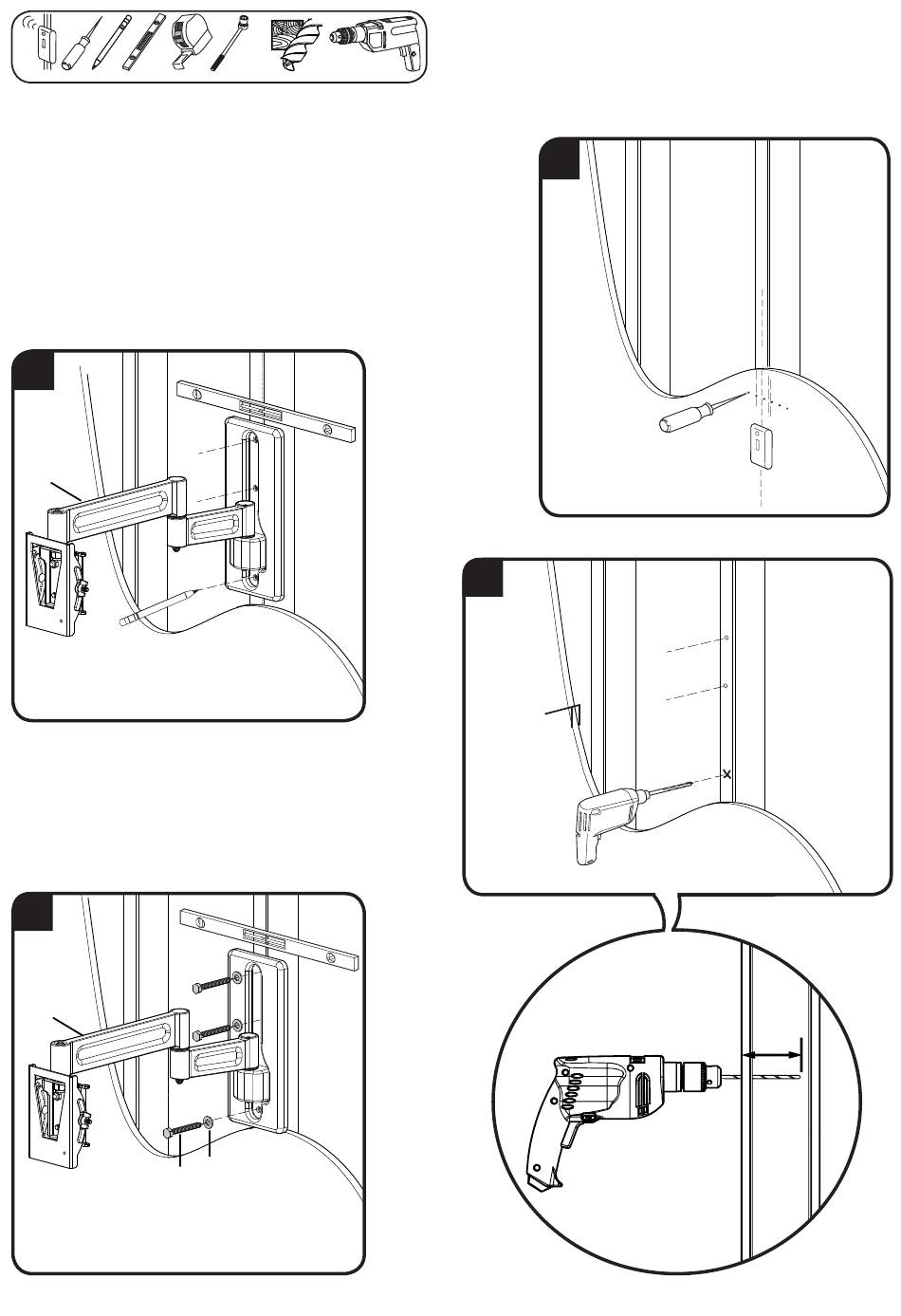

Wood Stud Wall Mounting – See Cautions in Step 2.
1.
Locate stud. Verify the center of the stud with an awl or thin nail or use
an edge to edge stud fi nder.
2.
Level the wall plate [04] and mark the hole locations.
3.
Drill pilot holes as illustrated.
4.
Tighten the lag bolts [08] only until the washers [09] are pulled fi rmly
against the wall plate [04].
2
[04]
4
[04]
[08]
6903-002002 <01>
13mm
5.5 mm
(1/2 in.)
(7/32 in.)
[09]
1
3
< 16 mm
(5/8 in.)
2-1
75mm
3 in.
13
