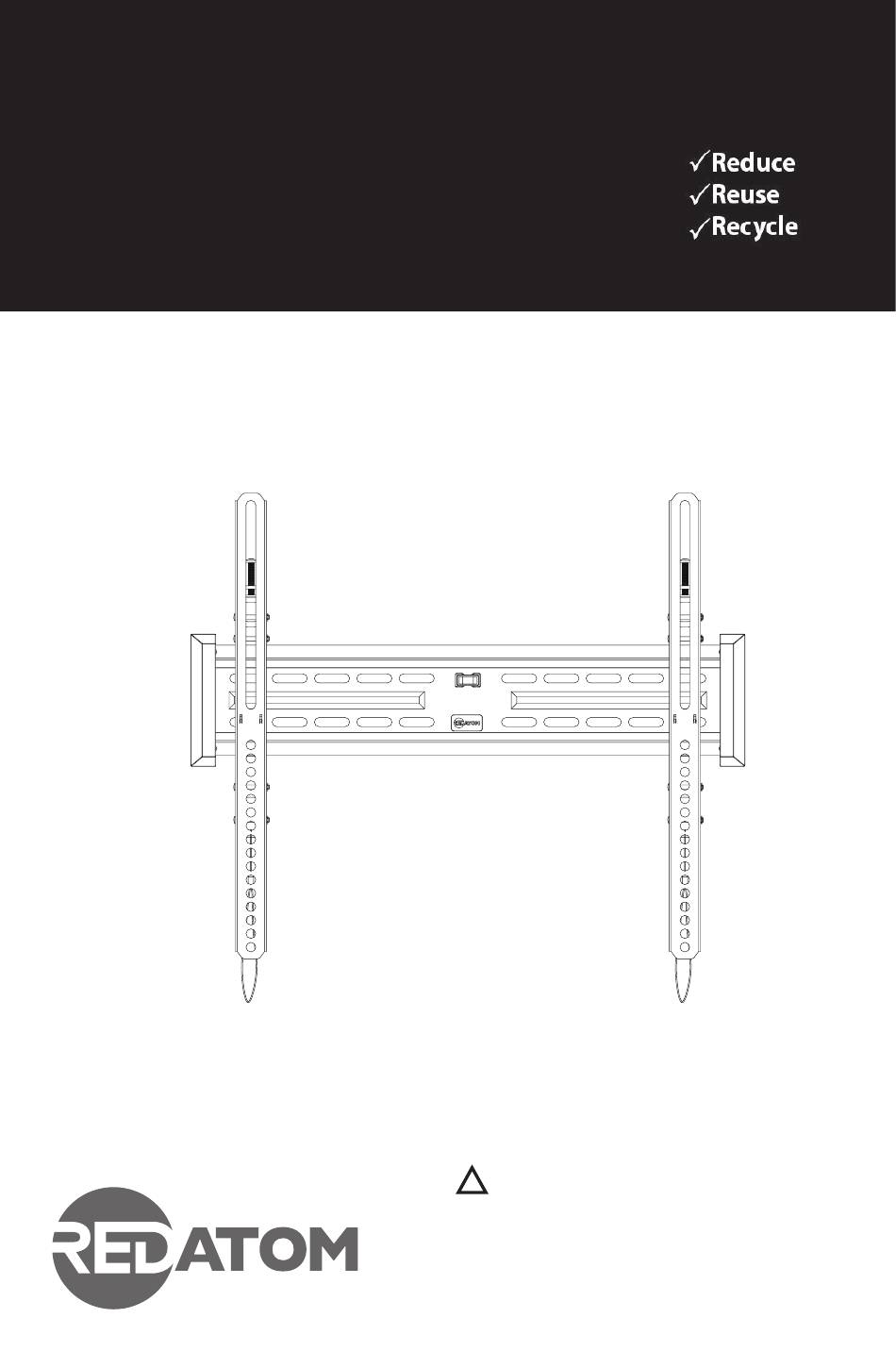

Large & Extra Large Fixed Flat Panel Mount
REDLFHD120P
REDXLFHD175P
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
All manuals and user guides at all-guides.com
LBS FOR LARGE MOUNT AND 175LBS FOR EXTRA LARGE
MOUNT. USE WITH PRODUCTS HEAVIER THAN THE
MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Max Screen Size: 60"(L) / 90"(XL)
!
CAUTION:
CAUTION: DO NOT EXCEED MAXIMUM
THE MAXIMUM LOADING WEIGHT IS 120
LISTED WEIGHT CAPACITY. SERIOUS
INJURY OR PROPERTY DAMAGE MAY
OCCUR!
Large Full Motion Mount
Max Screen Size: 70"
Max weight: 125lbs
V4
V1
P 1
Publicité
Manuels Connexes pour RED ATOM REDLFHD120P
Sommaire des Matières pour RED ATOM REDLFHD120P
- Page 1 All manuals and user guides at all-guides.com Large & Extra Large Fixed Flat Panel Mount REDLFHD120P REDXLFHD175P INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: CAUTION: DO NOT EXCEED MAXIMUM THE MAXIMUM LOADING WEIGHT IS 120 LISTED WEIGHT CAPACITY. SERIOUS...
- Page 2 DISCLAIMER – WARNING INFORMATION Disclaimer –. RED ATOM has extended every effort to ensure to accuracy and completeness of this manual. However, RED ATOM does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, RED ATOM makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.
- Page 3 HARDWARE PRODUCT NUMBERS All manuals and user guides at all-guides.com M4 x 12 M5 x 12 M6 x 15 M8 x 15 M5 x 25 M6 x 25 M8 x 25 M4 x 25 SQUARE WASHER SPACER STEEL WASHER STEEL WASHER 8 mm LAG ANCHOR BOLT...
- Page 4 STEP 1A - FLAT BACK FLAT PANEL (UNIVERSAL VERTICAL RAILS) All manuals and user guides at all-guides.com Connect Universal Vertical Rails to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1B - CURVED BACK FLAT PANEL (UNIVERSAL VERTICAL RAILS) Connect Universal Vertical Rails to flat panel Spacers can also be used to Conecte el adaptador al monitor...
- Page 5 STEP 1C - USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT All manuals and user guides at all-guides.com ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television.
- Page 6 STEP 2 - WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO STEP 3) STEP 2- CENTER UNIVERSAL MONITOR PLATE All manuals and user guides at all-guides.com Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre.
- Page 7 STEP 2C - MOUNT WALL PLATE TO WALL All manuals and user guides at all-guides.com Mount wall plate Coloque la placa de pared Montez la plaque murale 16” STUD (Large Fixed Mount) 16” or 24” STUD (Extra Large Fixed Mount)
- Page 8 STEP 3 - SOLID CONCRETE INSTALLATION All manuals and user guides at all-guides.com Use wall plate to mark mounting locations/drill pilot holes Use la placa de pared para marcar el lugar donde se realizará la instalación Utilisez la plaque murale pour marquer l'emplacement de montage Level Solid Concrete Drill Bit...
- Page 9 STEP 3C - SOLID CONCRETE INSTALLATION. All manuals and user guides at all-guides.com Mount wall plate Coloque la placa de pared Montez la plaque murale Insert wall anchors gently into concrete wall with hammer if necessary Hammer STEP 4A - ATTACH PANELTO WALL PLATE & ADJUST TILT ANGLE Hang Vertical Rails with monitor attached Cuelgue con el monitor adherido.
- Page 10 STEP 4B - ADJUST THE SCREWS ON THE VERTICAL RAILS TO LEVEL THE FLAT PANEL All manuals and user guides at all-guides.com Maximum leveling adjustment 0.5”...
- Page 11 STEP 4C - ADDITIONAL SECURITY FEAUTURE (OPTIONAL) All manuals and user guides at all-guides.com Option Opcione Option Vertical Rails Flat Panel Wall Plate Vertical Rails have 7mm hole located at the bottom for placement of pad lock for additional theft security (pad lock not included)
- Page 12 Para obtener el servicio de garantía, comuníquese con el servicio de Atención al cliente de RED ATOM. Escribanos an info@redatomproducts.com. Deberá proporcionar el recibo original. Si fuera necesario enviar el producto a RED ATOM para revisarlo, los gastos de envío correrán por su cuenta. El producto de reemplazo que se le envíe se le devolverá...
