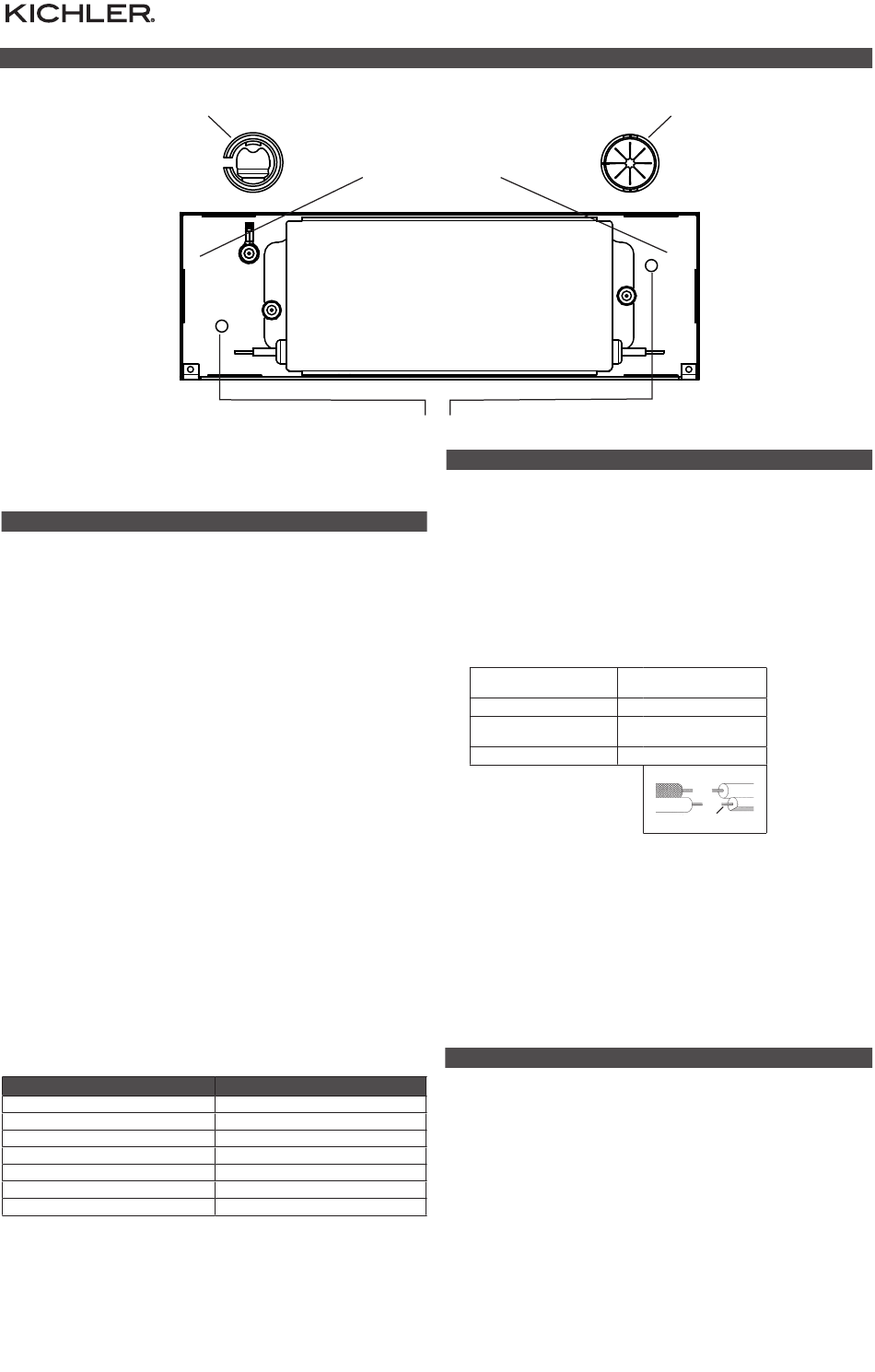

FIXTURE DIAGRAM
PRIMARY SIDE CABLE
Kichler® Power Supplies
4TD12V060BKTv2, 6TD24V060BKTv2, 6TD24V096BKTv2
Installation Instructions
CAUTIONS
CAUTION – RISK OF SHOCK:
Disconnect Power at the main circuit breaker panel or main fusebox before
starting and during the installation.
WARNING:
This fixture is intended for installation in accordance with the National Electrical
Code (NEC) and all local code specifications. If you are not familiar with code
requirements, installation by a certified electrician is recommended. Failure
to adhere to these codes and instructions may result in serious injury and/or
property damage and will void the warranty.
CAUTION:
To reduce the risk of fire, do not install closer than 1 inch to cabinet wall or in
compartment smaller than 12 inches by 12 inches by 12 inches.
CLEANING:
• Always be certain that electric current is turned off before cleaning.
• Only a soft damp cloth should be used. Harsh cleaning products may damage
the finish.
IMPORTANT SAFETY INSTRUCTIONS
a) Read all instructions.
b) Do not conceal or extend exposed conductors through a building wall, floor or
ceiling.
c) Install this system in dry or damp locations only.
d) To reduce risk of fire and burns, do not install this lighting system where
the exposed bare conductors can be shorted or contact any conductive
materials.
e) To reduce the risk of fire and overheating, make sure all connections are tight.
f) Do not install any luminaire closer than 6 inches (15.25cm) from any curtain, or
similar combustible materials.
g) Power supply has two distinct sections:
o line voltage (AC Input), black and white
o low voltage (DC Output), red and black
It is important to keep the line voltage and the DC voltage wires separate.
SAVE THESE INSTRUCTIONS
NOTE: Kichler 4TD-Series and 6TD-Series are compatible with wide variety of
dimmers in the market, including but not limited to:
MANUFACTURER:
Lutron
Lutron
Lutron
Lutron
Lutron
Legrand
Legrand
REV 30-AUG-2021
CONNECTOR
PRIMARY SIDE WIRE
COMPARTMENT
MODEL NUMBER:
AYCL-153P
SCL-153P
CTCL-153P
DVCL-153P
MACL-153M
ADPD453LW2
ADTP703TUM4
For warranty information please visit: kichler.com/warranty
SECONDARY SIDE
WIRE COMPARTMENT
MOUNTING SCREW
INSTALLATION INSTRUCTIONS
1. Turn off power.
2. Determine desired location for mounting power supply. Power supply should be located within 25'
of first luminaire.
3. Secure power supply using provided mounting screws. Secure into wall studs if possible,
otherwise, use appropriate anchors rated for proper wall material and hanging weight (not
included).
4. Using the pre-punched knock-outs in the metal enclosure, route the 120V line voltage to the
primary side (AC Input) of the power supply.
NOTE: A proper UL listed cable connector must be used in the knock-out to provide strain
relief and wire protection (cable connector provided). In addition, all unused knock-outs shall be
covered.
5. Make grounding connection (connector provided).
6. Make wire connections (connectors are provided). Reference chart below for connections and
wire accordingly.
Connect Line (Black
Supply Wire) to:
Black
*Parallel cord (round &
smooth)
Clear without tracer
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
7. The total load connected to the power supply should not exceed the rated Wattage of the power
supply. In the event that the connected LED's (load) exhibit an overload condition consisting of
blinking LEDs and or a restart of the system, it is suggested that the load should be set to not
exceed 80 to 85% of the rated wattage.
NOTE: After determining the layout of the system, add the wattage of each luminaire/fixture
together to calculate the total system consumption. The calculated total system consumption
should be equal or less than the Class 2 power supply rating that is being used.
8. Using the pre-punched knock-outs in the metal enclosure, route and connect the lighting system
leads to the secondary side low voltage (DC output) of the power supply.
NOTE: Connect positive to the red wire and negative to the black wire using the supplied wire
nuts or other UL approved connectors. Do not exceed manufacturers' wiring combination
specifications for size and quantity of conductors.
NOTE: A proper UL listed cable connector must be used in the knock-outs to provide wire
protection (cable connector provided).
NOTE: Ensure cover is closed and secured before applying power.
FCC INFORMATION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
SECONDARY SIDE
CABLE CONNECTOR
Connect Neutral (White
Supply Wire) to:
White
*Parallel cord (square &
ridged)
Clear with white tracer
Neutral Wire
IS-4TD12v2-6TD24v2-US
