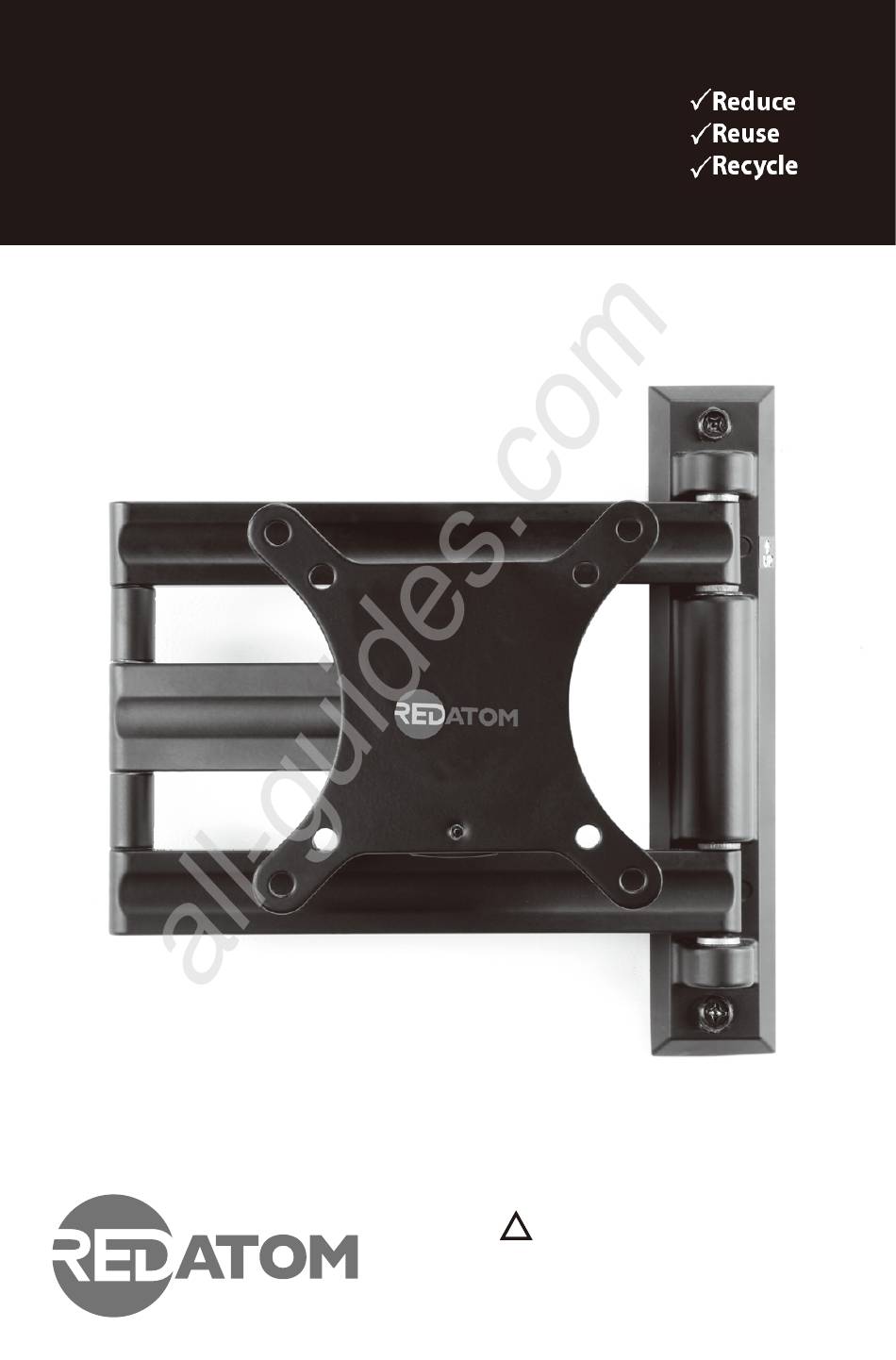

SMALL FULL MOTION MOUNT
REDSC35
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
All manuals and user guides at all-guides.com
!
CAUTION:
THE MAXIMUM LOADING WEIGHT
IS 35 LBS. USE WITH PRODUCTS HEAVIER THAN
THE MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Max Screen Size: 37"
V4
V1
P 1
