Step 10

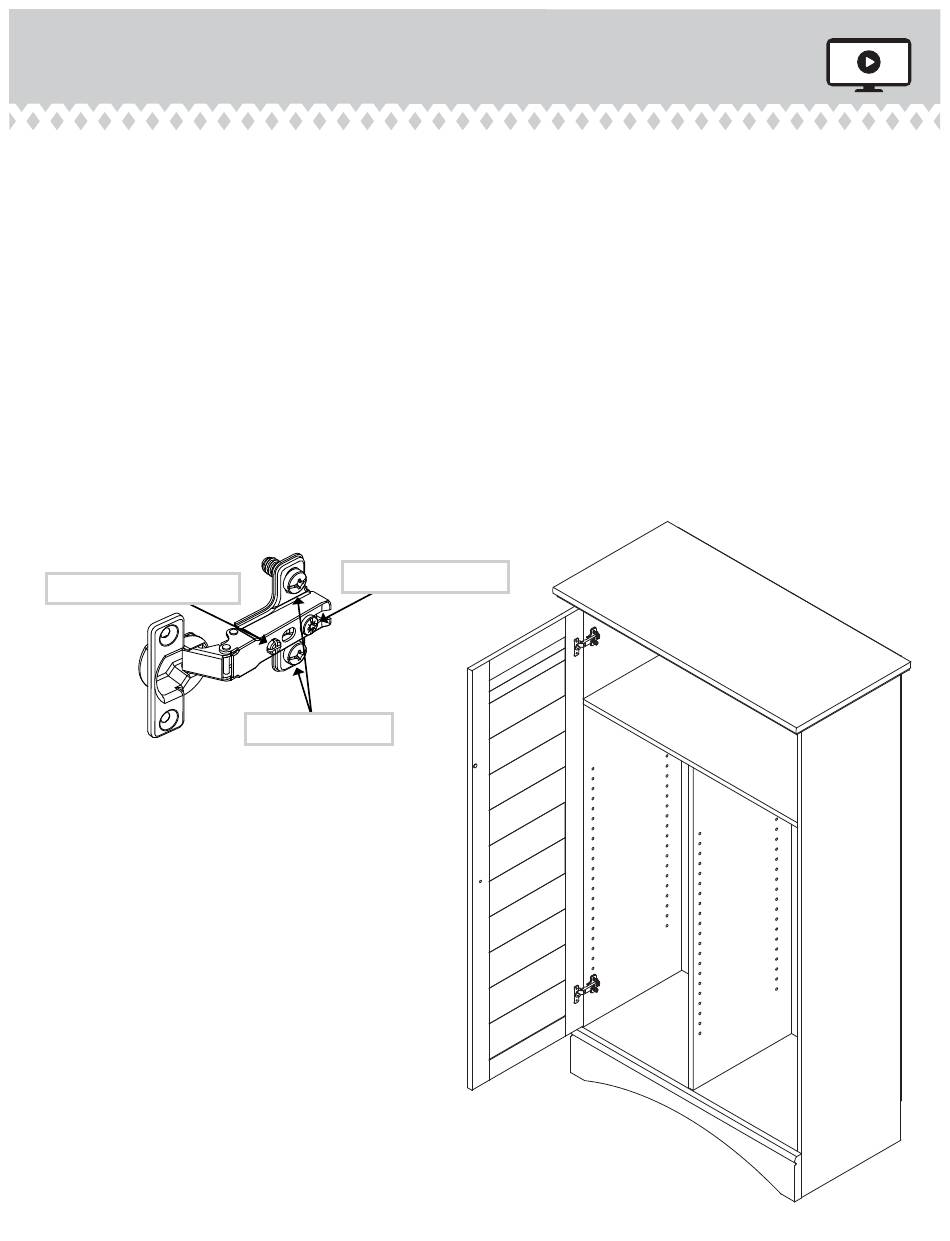

Refer to the enlarged diagram to identify the parts on the HINGES.
å
The DOORS may need some adjustments. Follow the text below to
å
make needed adjustments.
DOOR ADJUSTMENTS:
å
To adjust the DOORS from side to side (horizontal), turn the adjusting
screw in or out.
To adjust the DOORS up and down (vertical), loosen both vertical
å
adjustment screws. Move the DOORS up or down to the desired location.
Tighten the screws after making adjustments.
To adjust the DOORS in or out (depth), loosen the mounting screw one
å
turn and move the DOORS in or out, as needed. Tighten the mounting
screw after making adjustments.
Adjusting screw (horizontal)
Page 14
Mounting screw (depth)
(vertical adjustment)
