SLW-6612-1.5, SLW-6610-1.5
Two Handle Widespread Lavatory Faucet
Operation & Maintenance Manual
Model Numbers

SLW-6612-1.5
Unity Two Handle Widespread Lavatory Faucet

SLW-6610-1.5
Unity Two Handle Widespread Lavatory Faucet
Less Rod & 50/50 Drain Assembly
Modifications
-0.5
0.5 gpm (1.9 L/min) aerator
 CG
-1.0 1.0 gpm (3.8 L/min) aerator
 CG
-Delete 2.2 gpm (8.3 L/min) aerator

Suffix
1.5
-STN
Satin Nickel finish

Note: Append appropriate -suffix to model number.
Compliance
-NSF/ANSI 372, NSF/ANSI 61.9
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)

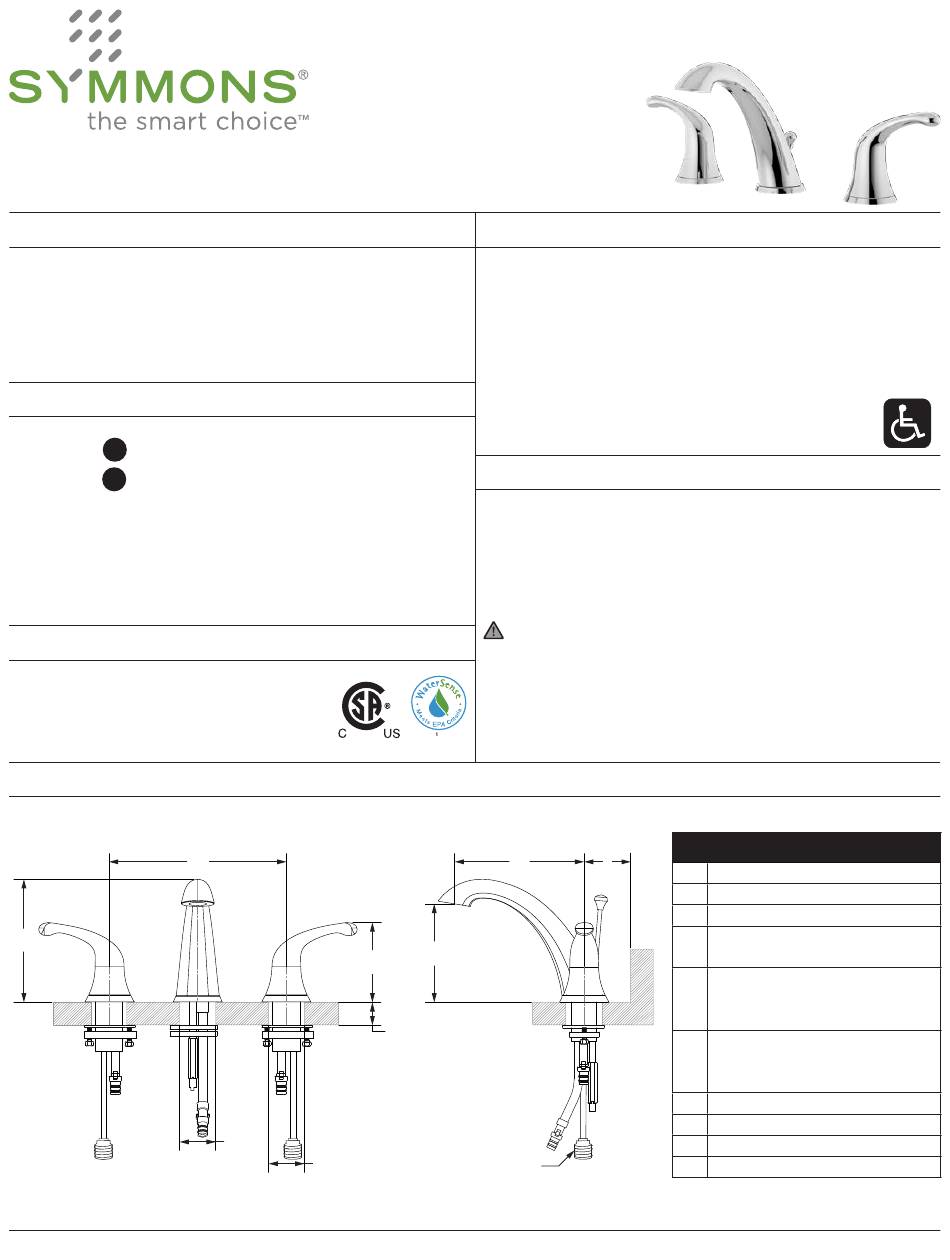

Dimensions
B B
Note: Dimensions subject to change without notice.
Unity
A A
C
E E
F F
®
Specification
Two handle widespread lavatory faucet featuring an 8" to
16" mounting configuration. Includes ceramic cartridges,
1/4" copper supply lines, 1/2" IPS inlet connections, 50/50
drain assembly and standard 1.5 gpm (5.7 L/min) aerator.
Components made from brass and nonmetallic materials
plated in standard polished chrome finish.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Certi ed by
CSA Group
H
G
D
J
Measurements
I
A 8", 203 mm
B 5", 127 mm
C 3 3/16", 81 mm
Deck Thickness Ref.
D
Max. 1 3/8", 35 mm
E Min. Ø 1 3/8", 35 mm
Max. Ø 1 5/8", 41 mm
(2x) Hole Size
F Min. Ø 1 1/4", 32 mm
Max. Ø 1 1/2", 38 mm
G 3 15/16", 100 mm
H 5 1/16", 129 mm
I Min. 2", 51 mm
J 1/2-14 NPSM
Hole Size
