Delta AIREYE Guide D'installation

Consult the complete Installation Guide for all other aspects of fan installation and safety guidelines.
Parts and Hardware
A. Lower Pedestal Mount
B. Pedestal Base
C. Upper Pedestal Mount
D. (2) 1/4-20 x 1/4" Square Head Screws

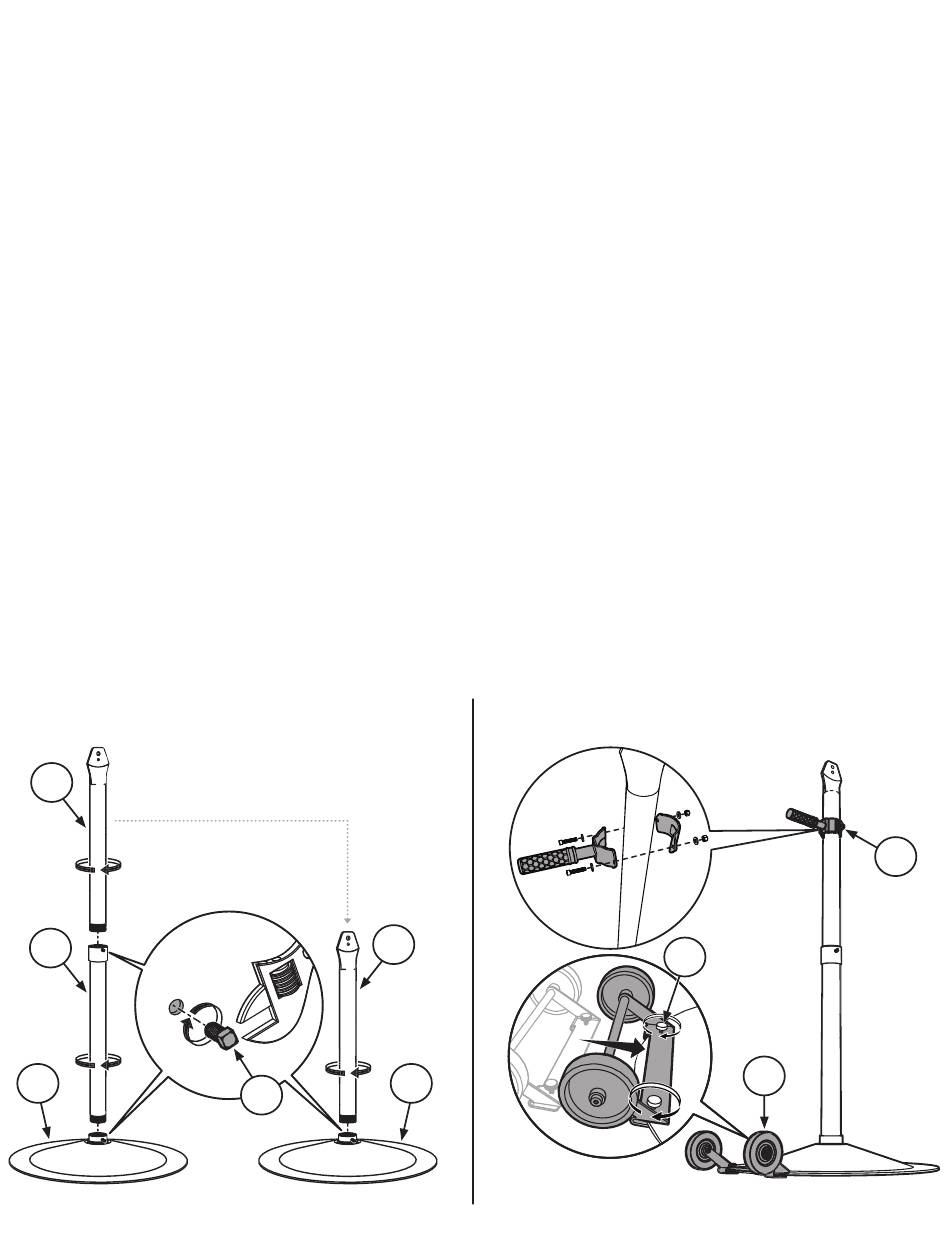

Assembly
1. Attach pedestal(s) to base
Option 1: Screw lower pedestal mount (A) into pedestal base (B). Screw upper pedestal mount (C) into lower
pedestal mount (A).
Option 2: Screw upper pedestal mount (C) into pedestal base (B).
2. Tighten set screw(s)
Insert 1/4-20 x 1/4" square head screw(s) (D) into opening(s) and tighten.
3. Attach handle and wheel kit (optional)
Attach handle (E) near top of upper pedestal mount (C) behind motor. Align wheel kit (F) with handle (E) and
attach to pedestal base (B). Fully tighten hand screws (G).
Option 1
C
A
B
AIREYE PEDESTAL MOUNT
®
E. Handle
F. Wheel Kit
G. Hand Screws
Option 2
C
D
© 2021 DELTA T LLC ALL RIGHTS RESERVED.
B
AIE-INST-370-MUL-01
G
F
REV. A 04/22/2021
E
