Models And Part Identification - Fulgor Milano F4GK24 1 Série Manuel D'utilisation Et D'entretien

24"
A
2
1

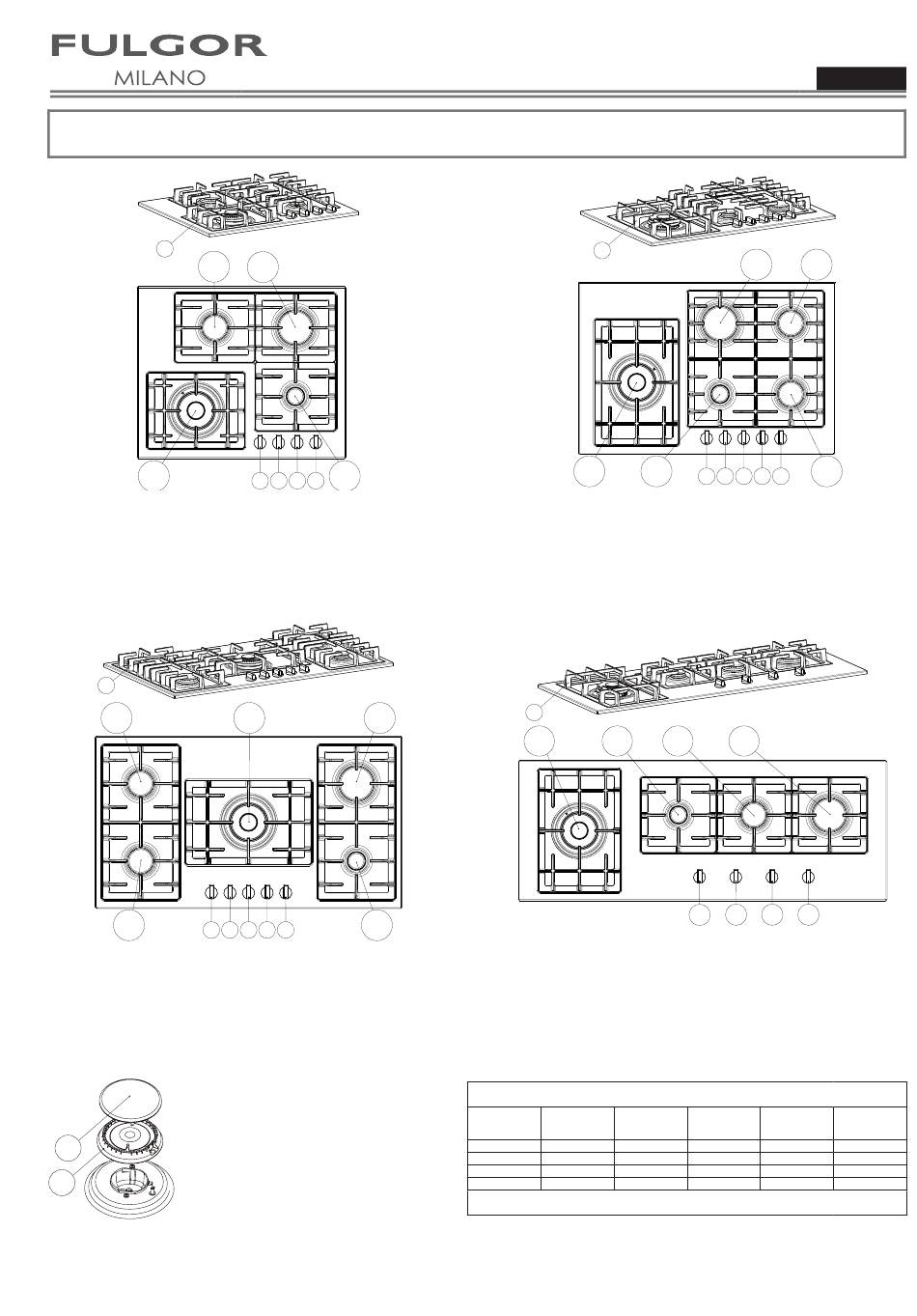

1. DOUBLE CROWNS (700 to 18000 Btu/h burner & control
knob)
2. SR (1,300 to 6,300 Btu/h burner & control knob)
3. R (2,200 to 12,000 Btu/h burner & control knob)
4. AUX (1,000 to 4,000 Btu/h burner & control knob)
36"
A
2
1
1
1. SR (1,300 to 6,300 Btu/h burner & control knob)
2. SR (1,300 to 9,000 Btu/h burner & control knob)
3. DOUBLE CROWNS (700 to 18000 Btu/h burner & control
knob)
4. R (2,200 to 12,000 Btu/h burner & control knob)
5. AUX (1,000 to 4,000 Btu/h burner & control knob)
A. Grates
B
B. Burner Cup
C. Burners Gas Spreader
C
6

Models and Part Identification

3
4
2 3 4
1
3 4
5
2 3 4 5
30"
A
1
1. DOUBLE CROWNS (700 to 18000 Btu/h burner & control
knob)
2. AUX (1,000 to 4,000 Btu/h burner & control knob)
3. R (2,200 to 12,000 Btu/h burner & control knob)
4. SR (1,300 to 9,000 Btu/h burner & control knob)
5. SR (1,300 to 6,300 Btu/h burner & control knob)
42"
A
1 2
1. DOUBLE CROWNS (700 to 18000 Btu/h burner & control
knob)
2. AUX (1,000 to 4,000 Btu/h burner & control knob)
3. SR (1,300 to 9,000 Btu/h burner & control knob)
4. R (2,700 to 15,000 Btu/h burner & control knob)
Appliance installed over 2,000 feet (610mt) De-rate effect
Nominal values Elevation
Cook top
Btu/h from from 2,000 (610)
0 to 2,000 (610) to 4,000 (1220)
24" 4 burners 40,300 37,076
30" 5 burners 49,300
45,264
36" 5 burners 49,300 45,264
42" 4 burners 46,000 42,320
(De-rated 4% per 1000 feet)
Use & Care Manual
ENGLISH
3 4
2 5
1 2 3 4 5
3 4
2 3 4
1
Elevation Elevation
from 4,000 (1220) from 6,000 (1829)
to 6,000 (1829) to 8,000 (2438)
34,109 31,381
41,643 38,311
41,643 38,311
38,934 35,820
Elevation
from 8,000 (2438)
to 10,000 (3048)
28,870
35,246
35,246
32,954
