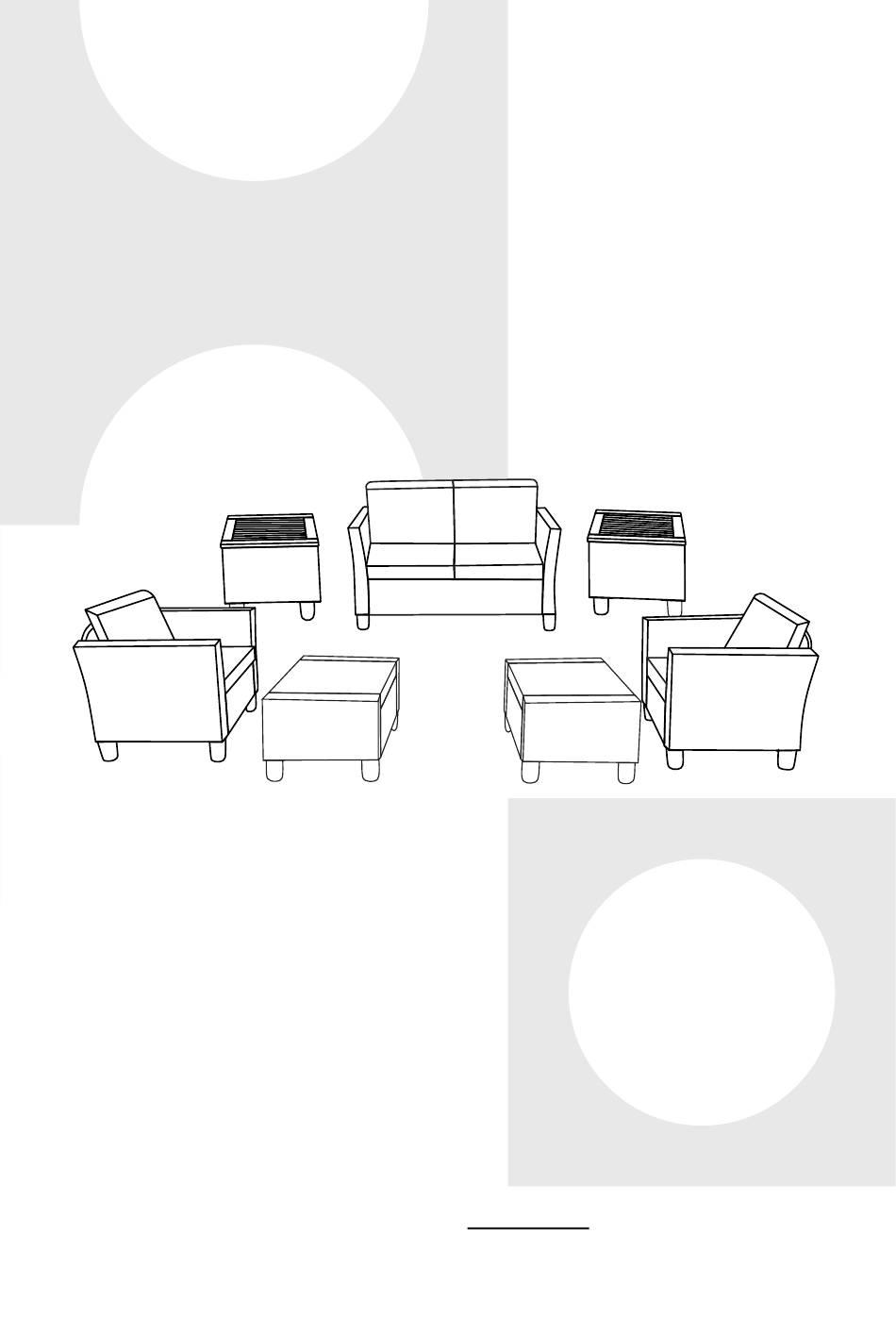

- Page 1 7-Piece Patio Conversation Set Ensemble de Conversation de Patio 7 Pièces HW72713 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 4 0% g e be o e instead of an electric drill. ● Place the item on a flat ground to adjust and make sure it remains stable. ● Tighten up all screws with tools gradually. ● If the screws are not aligned with holes during assembly, please loosen all the other screws to 50% and continue the assembly process.
- Page 5 PARTS LIST/ LISTE DES PIÈCES Seat frame of armchair Right arm /Cadre de siège du fauteuil A x2 B x3 Left arm Back frame of armchair /Accoudoir gauche /Cadre de dossier du fauteuil C x3 D x2 Seat cushion of armchair Back cushion of armchair / Coussin de siège du fauteuil /Coussin de dossier du fauteuil...
- Page 6 Front frame of table Left frame of table /Cadre avant de la table /Cadre gauche de la table G x2 H x 2 Back frame of table Right frame of table /Cadre arrière de la table /Cadre droit de la table J x 2 I x2 Bottom frame of table...
- Page 7 Seat frame of Stool Back frame of bench /Cadre de siège du tabouret P x2 Seat cushion of Stool Stool arm / Coussin de siège du /Bras de tabouret tabouret T x 2 Q x4 Hardware List / Liste des Accessoires M6 x 40mm M6 x 35mm M6 x 30mm...
- Page 8 Gas bar Gas bar support Wrench /Barre à gaz /Support de barre à gaz /Clé M6x8x2mm M8x16x2mm Steel washer Ring steel washer Allen key /Rondelle en acier /Rondelle en acier /Clé Allen annulaire...
- Page 12 The foot pads can be adjusted, suitable for uneven floors. Les coussinets de pied peuvent être réglés pour s'adapter aux sols irréguliers.
- Page 15 The foot pads can be adjusted, suitable for uneven floors. Les coussinets de pied peuvent être réglés pour s'adapter aux sols irréguliers.
- Page 18 The foot pads can be adjusted, suitable for uneven floors. FR: Les coussinets de pied peuvent être réglés pour s'adapter aux sols irréguliers.
- Page 21 The foot pads can be adjusted, suitable for uneven floors. Les coussinets de pied peuvent être réglés pour s'adapter aux sols irréguliers.
- Page 22 Finished / Terminé...
- Page 23 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 24 AUS office: Truganina FRA office: Saint Vigor d'Ymonville GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
