OPERATING INSTRUCTIONS
ECO-TOUCH PROGRAMMABLE TOUCH SCREEN WALL CONTROL
®
USE & OPERATION
MANUAL OPERATION
There are simply two (2) selections required to
operate your ventilation system – Ventilation Mode
selection and Fan Speed selection. These can be
selected either manually, via the manual section of
the touch screen, or automatically by activating the
ECO mode.

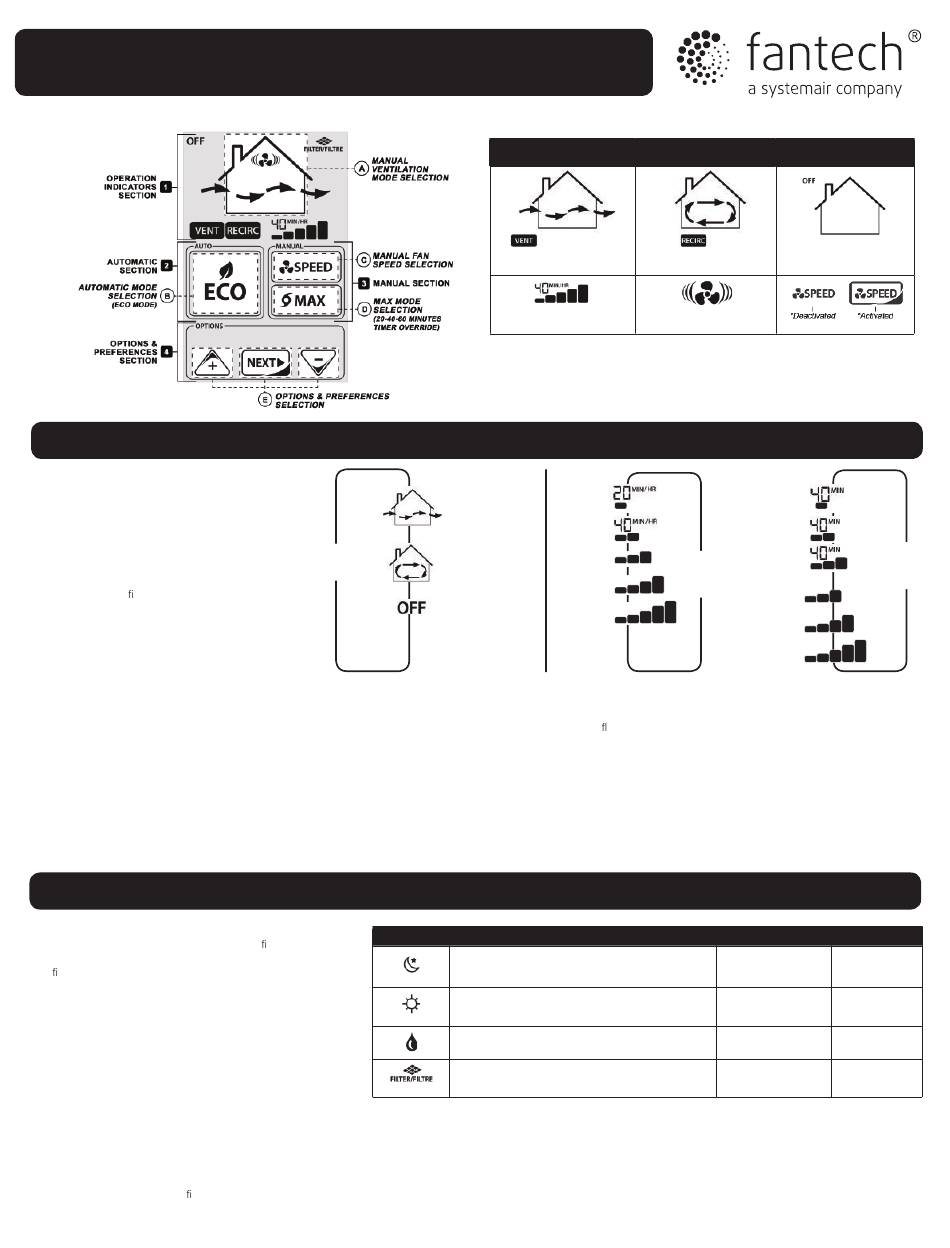

To select a speci c mode or speed, simply press
the corresponding Touch Area, indicated in the above
diagram. A blue backlight activates each time a touch
area is pressed.
AUTOMATIC OPERATION (ECO MODE)
Pressing the ECO mode touch area enables the AUTOMATIC operation of the ventilation
system to optimize its performance. It uses the indoor and outdoor conditions and the user
preferences to automatically select the proper Ventilation Mode and Fan Speed. You can
customize the operation of ECO mode to meet your individual needs using the OPTIONS &
PREFERENCES menu.
OPTIONS & PREFERENCES
The OPTIONS menu enables you to customize the operation of your
wall controller. To enter the menu, you need to rst press anywhere in
the bottom portion of the OPTIONS screen section. The icon NEXT will
rst appear with a 5 second countdown timer. If you wish to continue
and change the available options, press the NEXT button before the
timer reaches 0 (zero).
Once in the OPTIONS menu, you will have the possibility to change
the options listed on the right. To change the values of each option,
use the up or down arrow buttons. To navigate to the next available
option, press the NEXT button . When doing so, any changes made to
the values of the previous option will be automatically saved and will
then become your own personal operating preferences.
To exit the OPTIONS menu and return to normal operation, use the
NEXT button to advance to the original 5-second timer. The controller
will resume its operation with your new preferences once the time
has elapsed.
If for any reason you cannot nd the 5 second timer, the controller
will automatically exit the OPTIONS menu after 1 minute of inactivity.
Ventilation system
exchanges indoor
air for outdoor air.
The indoor air is
Ventilation Mode
circulated within the
Selection
house.
The ventilation
system is on
stand-by.
PARAMETERS OPTION
Night Preferences
Ventilation mode and fan speed during night
Day Preferences
Ventilation mode and fan speed during day
Relative Humidity
Desired indoor relative humidity selection
Maintenance Reset
*See Maintenance Section for details.
MAINTENANCE REMINDER
The Maintenance Icon will display every 3 months (90 days) of runtime as a reminder that maintenance to the
ventilation system is recommended. Refer to ventilation system maintenance instructions. In order to reset the
Maintenance timer, enter the OPTIONS menu and advance to the Maintenance Reset option, which will be indicated
by a blinking Maintenance icon. To reset the Maintenance reminder, hold the NEXT button for 3 seconds until the
controller returns to its normal operation.
OPERATION INDICATORS
Air Exchange Recirculation
mode Animation mode Animation
Fan operation
Fan speed level
Animation
and timer
1 Reduced
20 min/hr
1 Reduced
40 min/hr
Exchange
Reduced
Fan Speed
Selection
Medium
Normal
1
The unit will ventilate for 20 or 40 minutes, then go into Stand-by for the rest of the
hour.
When the VENT icon ashes and the RECIRC icon is displayed the unit will ventilate for 20
2
minutes then recirculate for 40 minutes at the selected speed.
20-40-60 MINUTES TIMER OVERRIDE
You can activate an internal timer to force the ventilation system to run at the maximum
speed by pressing the MAX button. When MAX mode is activated, the ventilation system
will exchange indoor air with outdoor air for a period of 20, 40 or 60 minutes, which will be
indicated above the Fan speed level indicator. Repeatedly pressing the MAX button will cycle
through the time periods.
System stand-by
Icon activation
2 Reduced
2 Medium
Recirculation
Fan Speed
2 Normal
Selection
Reduced
Medium
Normal
POSSIBLE VALUES DEFAULT VALUE
Air Exchange
Ventilation Mode /
Mode & Medium
Fan Speed Level
Speed
Air Exchange
Ventilation Mode /
Mode & Reduced
Fan Speed Level
Speed
30 to 80 % 45%
Reset Timer & Icon n/a
Display
