English
Included material:
1. 1x VDF204-II
2. 2x D912 M6x20
3. 2x D912 M6x60
4. 1x D912 M5x12
Note:
All fixing screws shall be tightened to the
torques specified in the table below.
Standard quality:
8.8
Recommended torque for screws and bolts
Tightening torque [Nm]
Diameter
Class 5.8
M2
0.22
M3
0.77
M4
1.8
M5
3.6
M6
6.1
M8
15

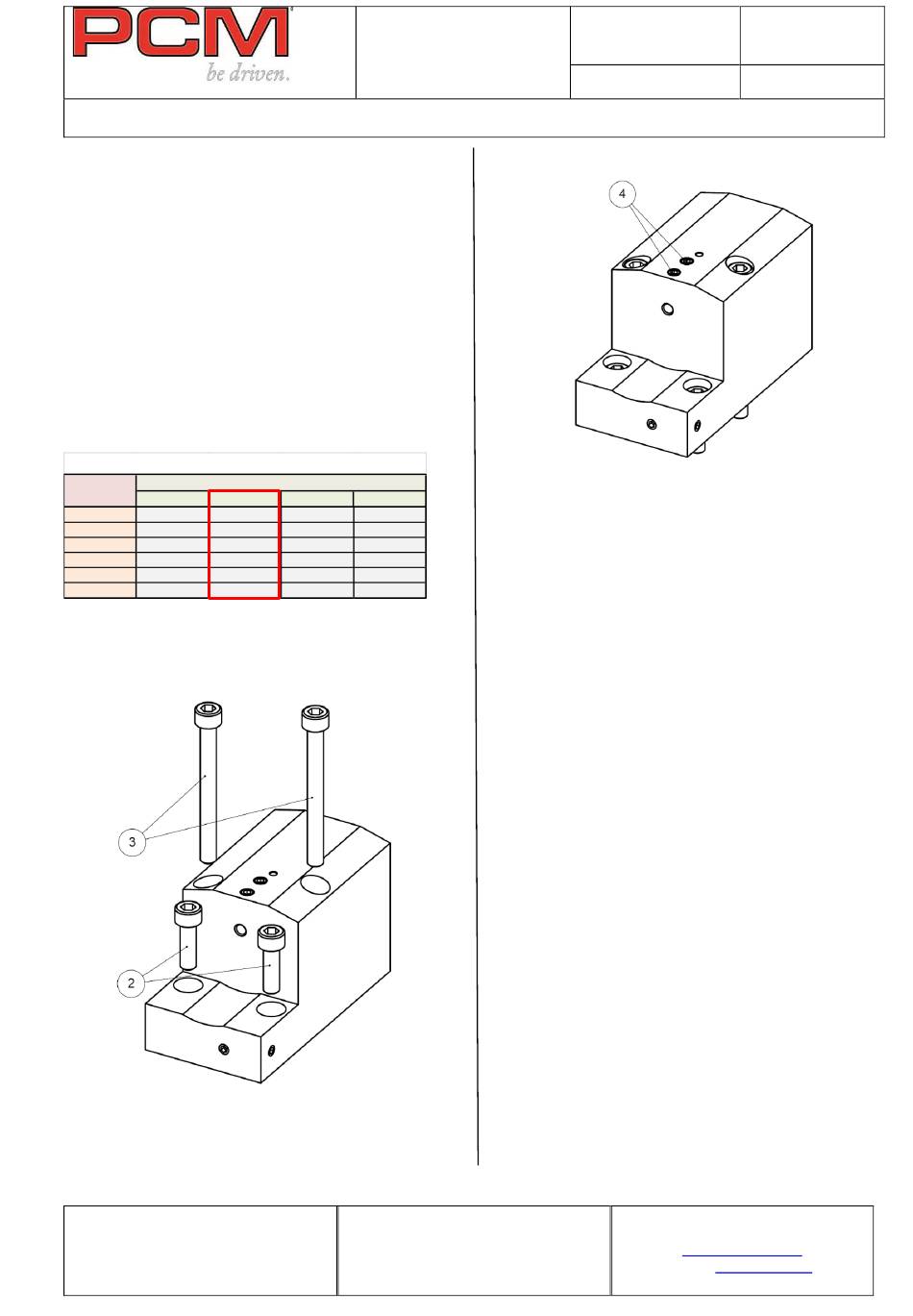

Fixing the tool holder on the machine
To fix the tool holder center the pins in the
machine. Tighten the 4 M6 screws (2 and 3).
Zone industrielle C
Rte du Grammont 101
CH-1844 Villeneuve
Operating instructions
Tool holder
Screw M6x20
Screw M6x60
Screw M5x12
Class 8.8
Class 10.9
Class 12.9
0.35
0.49
0.58
1.2
1.7
2.1
2.9
4
4.9
5.7
8.1
9.7
9.8
14
17
24
33
40
Figure 1
PCM Precision Tooling SA
Copyright © PCM Precision Tooling
Mode d'emploi
Betriebsanleitung
VDF204-II
Slightly tighten the fixing screws (4).
Use
1. Settle the offsets of the position.
SWISS MADE
SA.
Garant:
BT
Validation : 18.02.2025
Figure 3
Tél ++41 21 967 33 66
Fax ++41 21 960 38 95
http://www.pcm.ch
email:
sales@pcm.ch
Document :
VDF204-II Mode
d'emploi.docx
Page : 2 de 3
