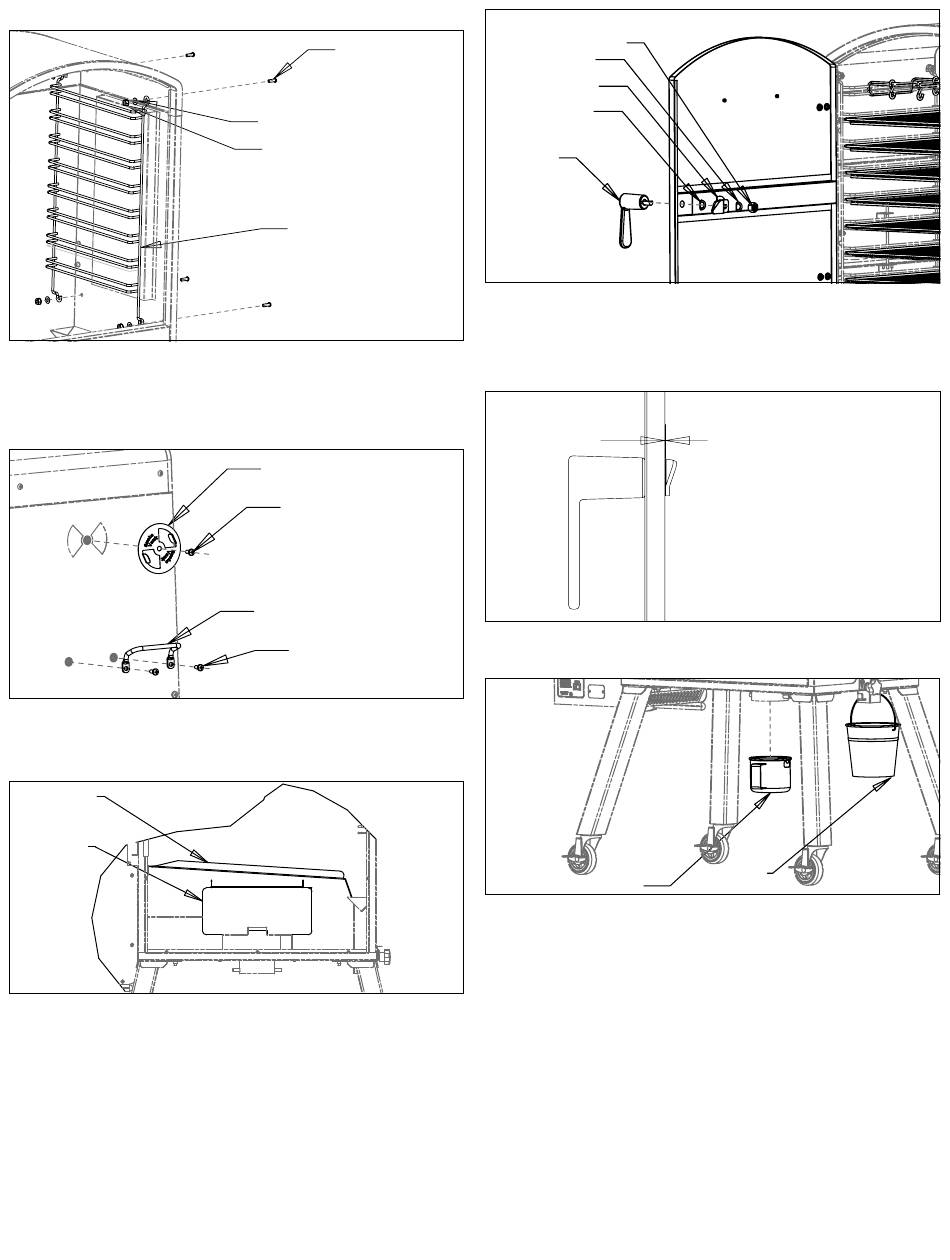

15. Install Qty (2) wire rails as shown. See FIG. 12
16. Install the damper vent on the side of the smoker
assembly using Qty (1) M6 shoulder bolt. See FIG. 13
17. Install SMV wire handle by using Qty (2) M6 x 15 bolts.
See FIG. 13
17. Install Heat Deflector on the Heat Deflector Bracket.
18. Install Drip Tray.
18. Install heat deflector on the heat deflector bracket.
See FIG. 14
19. Install drip tray. See FIG. 14
Drip Tray
Heat Deflector
FIG. 14
20. Install racks in the smoker assembly. See FIG. 15
21. Re-mount the door panel by sliding the door's hinge pins
into the cabinet's hinge seats.
See FIG. 15
22. Assemble the door handle as shown using the handle,
Qty (2) wave washers, and Qty (2) M12 lock nuts. See
FIG. 15.
M6 X 20 Bolt
M6 Flat Washer
M6 Keps Nut
Wire Rail
FIG. 12
M12 Lock Nut (2)
Wave Washer (1)
Door Lock
Wave Washer (1)
Door Handle
Damper Vent
M6 Sholder Bolt
SMV Wire Handle
M6 x 15 Bolt
FIG. 13
M12 Lock Nut (2)
Wave Washer (1)
Door Lock
Wave Washer (1)
Door Handle
FIG. 15
23. Tighten handle nut until the latch barely clears the door
15. Install the Damper Vent on the side of the smoker assembly
using Qty (1) M6 Shoulder Bolt.
flange. If nut is overtightened handle will be difficult to
rotate. In this case loosen nut 1/4 turn maximum. See
16. Install SMV Wire Handle by using Qty (2) M6 x 15 bolts.
Fig. 16.
24. Install grease bucket. See FIG. 17
25. Install ash cup. See FIG. 17
FIG. 17
Ash Cup
Burner Clean-out
Before each use the burner should be cleaned out by lifting
the pullout lock and pulling the clean-out port knob on the
right side of the smoker to open the burner clean-out. This
will allow the ash from previous use to fall into the cup
under the smoker. The cup should be removed and emptied
and then reinstalled before each use.
After cleaning out the burner make sure to close the burner
clean-out by pushing the clean-out port knob in on the
right side of the smoker. Make sure to lift the pullout lock
and push the clean-out port knob all the way in and lock in
place with the pullout lock. Every 50 hours of use, remove
the smoker grates, grease tray, and heat deflector and clean
.025 MAX GAP
FIG. 16
Ash Cup
Grease Bucket
Grease Bucket
