P88105LF-SD
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need
Usted puede necesitar
Articles dont vous pouvez avoir besoin
?
800-438-6673
www.peerlessfaucet.com
All manuals and user guides at all-guides.com
102045
Water supply hook-ups:
Choose hook-ups for 1/2" I.P.S.
connections: Ball nose riser (3/8" O.D.
copper tubing), or 1/2" I.P.S. faucet
connector.
Suministros de agua:
Escoja conexiones para I.P.S. de 1/2":
Tubos montante bola-nariz (tubería de
cobre de 3/8" D.E.), o conector de llave
I.P.S. de 1/2".
Raccords :
Choisissez des raccords compatibles 1/2
po IPS.
Tubes-raccords à portée sphérique (tube
en cuivre 3/8 po d.e.) ou raccords de
robinet 1/2 po IPS.
SINGLE LEVER PULL DOWN KITCHEN FAUCETS
PALANCA DESLIZABLE PARA LLAVES DE
COCINA
ROBINETS MONOCOMMANDE À BEC-
DOUCHETTE RÉTRACTABLE POUR ÉVIER DE
CUISINE
Sink Hole Dimensions
Dimensiones del Hoyo Fregaderos
Dimensions des orifices de I'évier
1-3/8" Dia.
(34.9 mm)
NOTICE
This faucet should not be used with portable dishwashers.
AVISO
Esta llave no se debe usar con maquinas lavaplatos portatiles.
AVIS
Ce robinet ne doit pas servir à alimenter un lave-vaisselle.
1
8"
(203 mm)
1-1/2" Max.
(38 mm)
102045
1/5/18 Rev. A
Publicité
Manuels Connexes pour PEERLESS P88105LF-SD
Sommaire des Matières pour PEERLESS P88105LF-SD

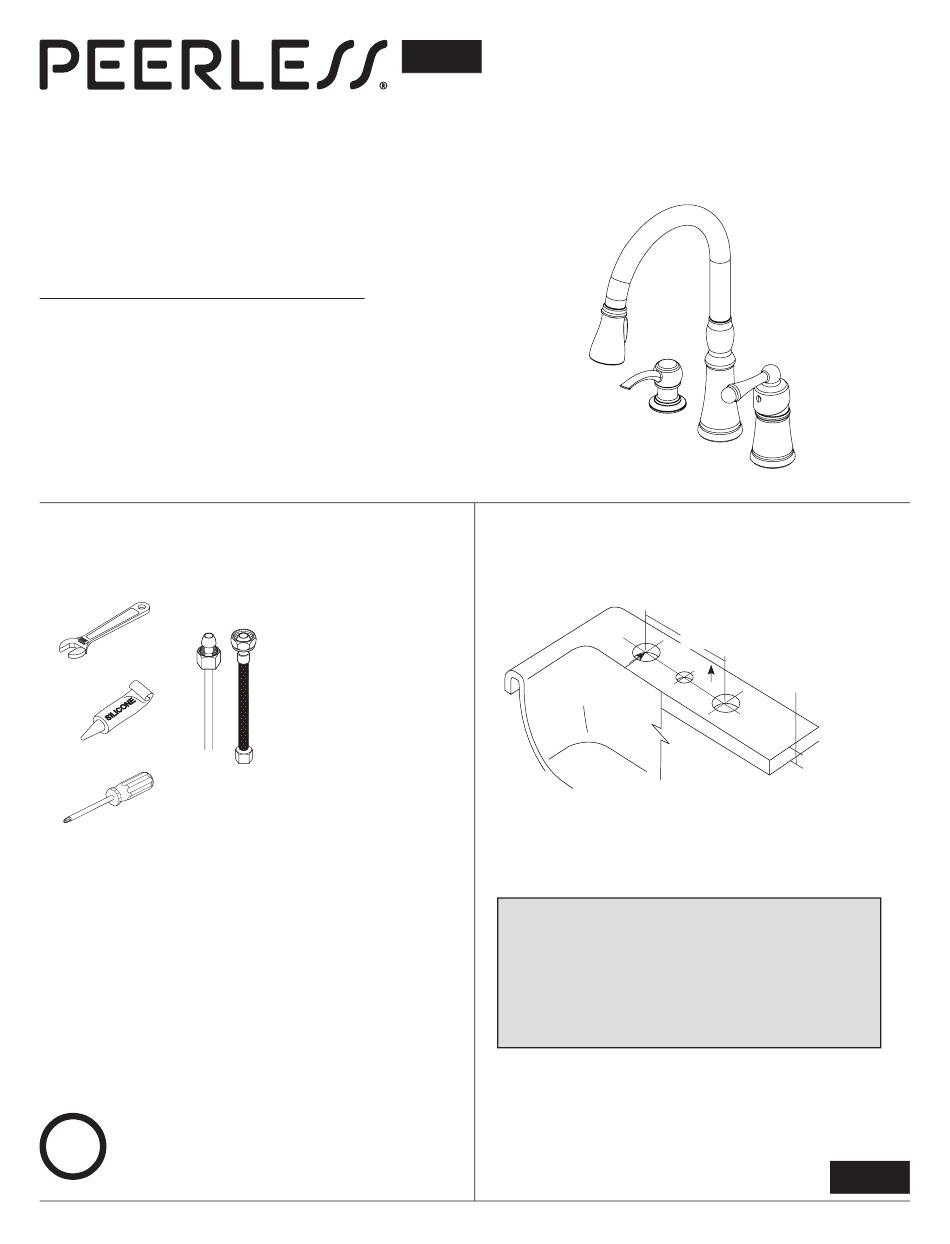

- Page 1 SINGLE LEVER PULL DOWN KITCHEN FAUCETS 102045 PALANCA DESLIZABLE PARA LLAVES DE COCINA Models/Modelos/Modèles ROBINETS MONOCOMMANDE À BEC- P88105LF-SD DOUCHETTE RÉTRACTABLE POUR ÉVIER DE Series/Series/Seria CUISINE Write purchased model number here. Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici.
