7.
To operate the appliance with LP gas, the regulator must be changed to operate at 10" WC. To do this,
remove the converter cap and pin from the regulator, invert the pin and reinstall it into the cap. Replace the
cap on the regulator, ensuring that the gasket is intact and in place on the cap. (See images below.)
Gas Pressure Regulator
Regulator Cap
8.
Prior to connecting the regulator, check the incoming line pressure, as the regulators can only withstand
a maximum pressure of ½ PSI (13" WC). If the line pressure is beyond this limit, a step down regulator is
required. The arrow on the bottom of the regulator body shows the gas flow direction and should point
downstream to the appliance.
9.
Check for gas leaks using a soapy water solution. DO NOT use matches, candle flames or other sources of
ignition.
10.
Replace the grates.
11.
Affix the conversion rating plate adjacent to the original rating plate on the rear of the unit. Fill in the
details required on the installation plate and fix it to the rear of the unit.
SETTING THE PILOT BURNER
When changing from natural gas to LPG,
it is necessary to adjust the pilot light as
well. This is done in the following steps:
1.
Remove the control knobs from the
front of the unit. Loosen the screws
holding the front panel and remove.
2.
The pilot burner valve is positioned
to the right of the control valve and
a small adjustment screw is located
on the front face of the valve body.
The adjustment screw can be turned
in or out with a small flat head
screwdriver.
3.
Adjust the screw in small increments
while the pilot flame is burning
until a ¼" stable flame is achieved.
4.
Replace the front panel and secure with the screws. Reattach the control knobs.

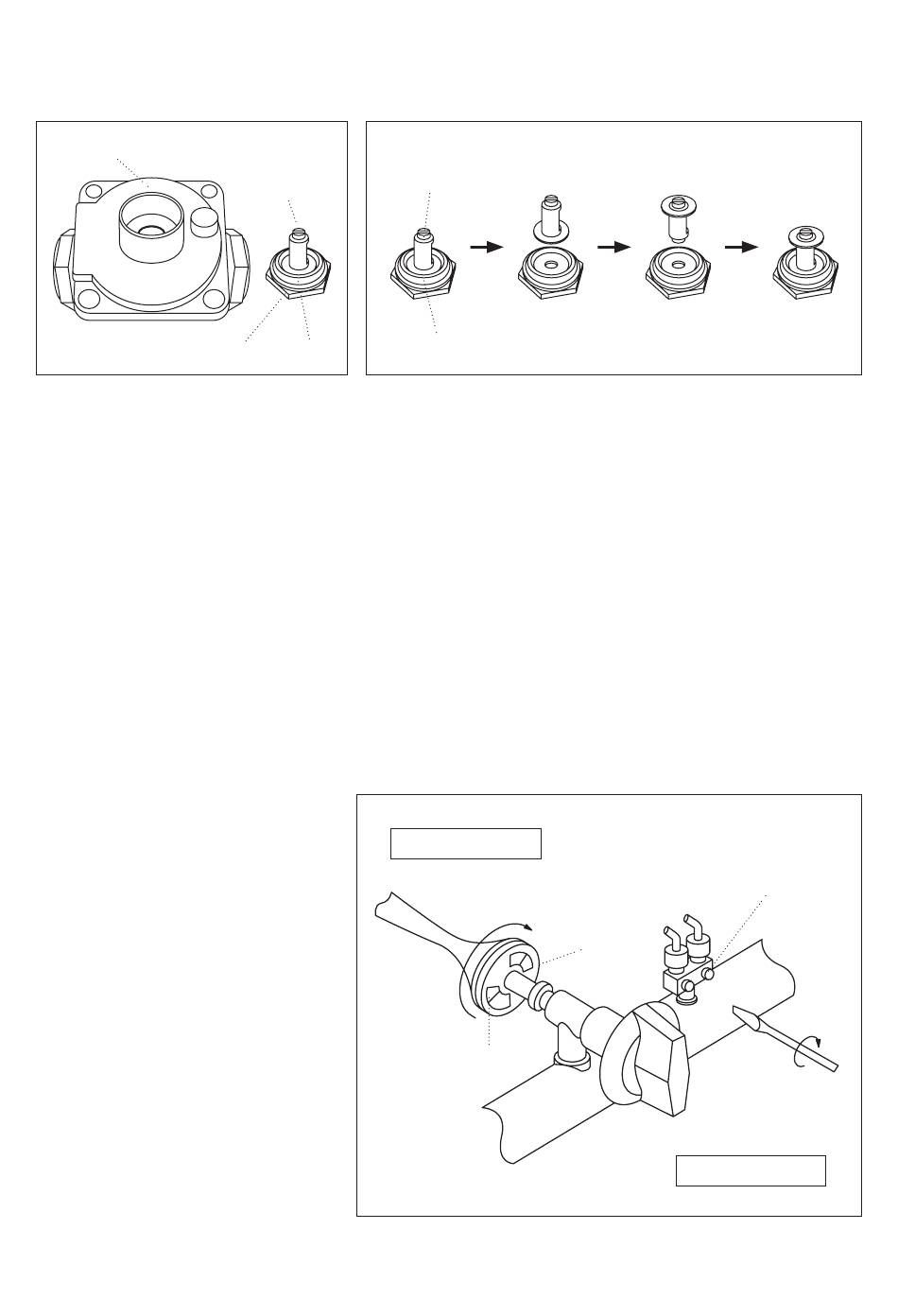

Figure 1
Retainer Pin
Retainer Pin
Regulator Cap
Gasket
Burner Flame Adjust
More Air
NG
Less Air
Shutter
Locking Screw
4
Figure 2
LP
Figure 3
Pilot Flame Adjust
Less
Flame
More
Flame
Pilot Flame Adjust
