Mounting the pump
Two DDC pumps or one Alphacool Ice Station DDC including Alphacool Laing DDC-1T can be
mounted on the pump plug-in unit. Alternatively, an Alphacool Ice Station DC-LT including
Alphacool DC-LT 2600 Ultra Silent. Depending on what is needed for a pump capacity.
Laing DDC-Pump 12V Installation
All manuals and user guides at all-guides.com
Alphacool ES 4U - 19" – ServerRack - Watercooling ready - English
Yellow Mounting holes for Laing DDC pump bracket
Red
Green
Blue

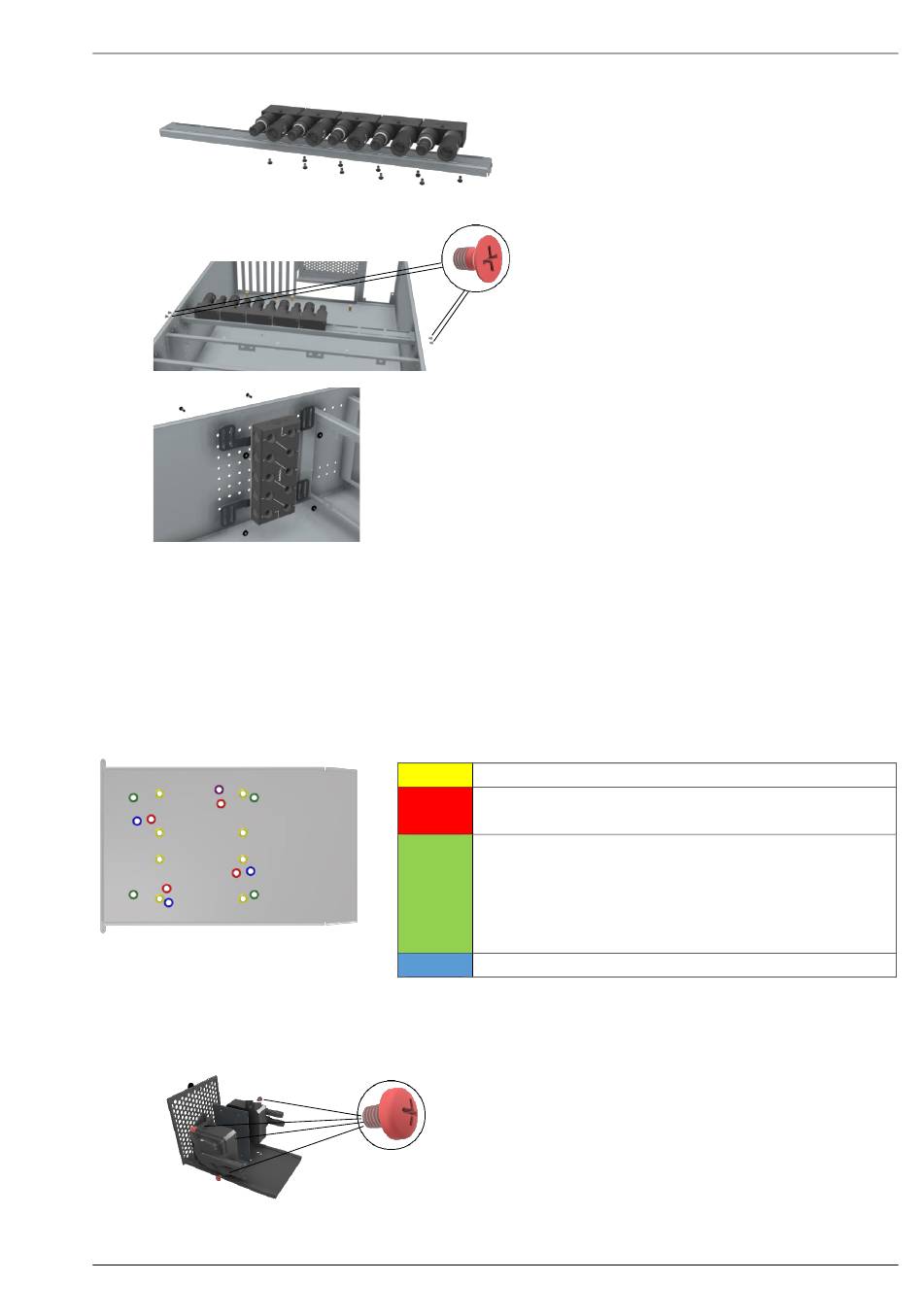

Mount the optionally available
distributors as shown in the picture. The
slotted holes allow the distributors to be
positioned freely.
Fasten the distributor bar again with the
screws marked in red at a free place in
the housing.
Alternatively, an Alphacool ES Distro
Plate C5 can be mounted on the side or a
fan location. Use here for optionally
available M3x10 screws and M3 nuts.
Mounting holes for Alphacool ES reservoir 2U -
DDC version
Mounting holes for
• 2.5-inch holder for Alphacool ES
reservoir 1U - DDC version
• Alphacool Ice Station DDC incl.
Alphacool Laing DDC310
Mounting holes Alphacool Eisdecke DDC series
Mount the Laing DDC pump 12V DDC-1T
or similar, as shown in the picture. Up to
two pumps can be mounted. Use the red
marked screws.
