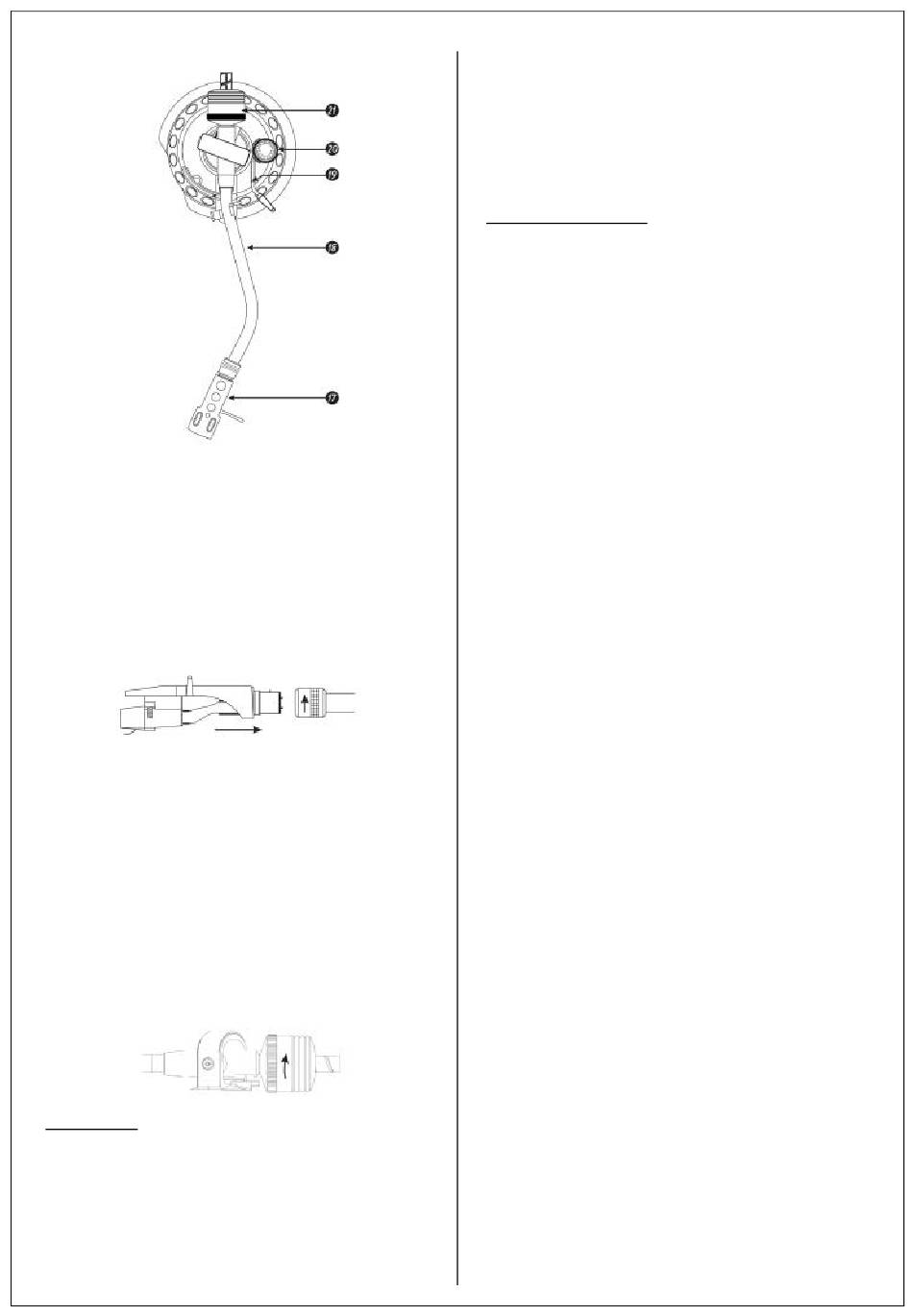

TONE ARM DESCRIPTION
17. HEADSHELL + CARTRIDGE
This part is composed of :
-
A headshell
A cartridge
-
-
A stylus
To install the cartridge, you can read the cartridge' s owner
manual. Connect the lead wire to the cartridge terminals.
The terminals of most cartridges are color-coded.
Connect each lead wire to the terminal of the same color.
White (L+) : left channel +
Blue (L-) : left channel -
Red (R+) : right channel +
Green (R-) : right channel -
18. TONE ARM
The arm is an important part of the turntable. it supports the
headshell and the counterweight. It' s necessary to position it
over the record and to lift it down and make the stylus touch
the record and so the playing starts.
19. CUEING LEVER
This system enables you to lift the arm up or down smoothly.
20. ANTI-SKATING ADJUSTEMENT
This wheel is used to adjust the anti-skating.
This adjustment can only work with the counter weight
adjustment.
21. COUNTER-WEIGHT
Slide counter weight onto the rear of the tone arm
Twist the counter weight counter-clockwise and it will screw
onto the rear of the tone arm.
PRECAUTION :
Read the manual carefully before operation
-
-
Do not remove cover or back to prevent electrical
shock. NO USER REPLACEABLE PARTS INSIDE.
-
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
-
Use the unit on a flat surface
-
Be sure not to connect the power or cables before
moving the unit.
Do not use chemicals solvents on the unit.
-
Locate the turntable as far away from the speaker
-
as possible and isolate the unit from sound
radiation.
The interference may happen when a radio is
-
placed too close to the turntable an both radio and
turntable are playing.
ASSEMBLY AND SET-UP :
Installation of the platter :
-
Place the belt on the platter
Place the slipmat
-
Installation of headshell :
Insert the headshell into the front end of the tubular
-
tone arm.
-
Turn the locking nut counter-clockwise while the
headshell is firmly held horizontally.
Installation of counter weight :
Slide counter weight onto the rear of the tone arm
Twist the counter weight counter-clockwise and it will screw
onto the rear of the tone arm.
Adjustment of horizontal zero (0) balance and stylus
pressure :
If
your
-
protection, remove it and be careful not to touch
the stylus tip.
-
Release the arm clamp and lift the tone arm from
the arm rest.
Turn
counterweight
-
clockwise
horizontally as floating freely. During adjusting the
horizontal zero (0) balance, be careful that the
stylus tip does not contact the turntable mat or
turntable base.
After the tone arm is horizontally zero (0)
-
balanced temporaly, place the tone arm on the
arm rest and lock it with the arm clamp.
While rotating the stylus-pressure ring, hold the
-
counterweight steady with one hand until " 0" on
the ring aligns with center line on the tone arm
rear shaft. Now the adjustment of the horizontal
zero (0) balance should be completed.
After adjusting the horizontal zero (0), turn the
-
balanced counterweight counter-clockwise to get
the proper stylus pressure as the cartridge
manufacturer' s recommendation when it meets
center line on the tone arm rear shaft.
WARRANTY CONDITIONS
BST equipment is covered by a 1-year warranty on parts and
labour except for Crossfaders (90 days).
The following rules apply from the day the equipment leaves the
factory:
The date on the invoice is considered to be the date the warranty
begins.
Only companies approved by BST are allowed to work on the
equipment. Warranty becomes void when other service
technicians open the equipment.
During warranty period, defective equipment must be sent by pre-
paid mail in the original box.
BST will return the goods by pre-paid mail during the first year of
warranty; thereafter the mailing cost is to be paid by the recipient
Potentiometers have a limited lifetime and are not covered by the
manufacturer for more than normal use.
For all service enquiries, refer to your local distributor, as he is
best able to help you.
4
cartridge
has
a
detachable
clockwise
or
until
the
tone
arm
is
stylus
counter-
balanced
