Orion Tri-Scanner ORLASER103 Manuel De L'utilisateur

ORLASER103 – Tri‐Scanner RGB

Vivid Standalone Laser Tunnel / Scanner Effect

Hundreds of Patterns, Traces an Effects

Dramatic Centerpiece Unit for Any Lighting Array
(Especially when used with Smoke Machines or Hazers)

Extremely Wide Scanner Angles

DMX, Audio Chase or Automatic Operation

Integrated Microphone for Audio Chase
General Information:
Orion ORLASER103 Tri‐Scanner laser is designed for indoor use only; the unit should never be exposed
to rain or excess moisture. Although properly vented and cooled, this laser effect should always be
used in a ventilated space, away from external heat sources.
Like all Class III A lasers, never look directly at the laser emitter as serious eye injury can occur. Unit
should never operate for more than two hours (continuous) without a brief cool down period to save
heat stress damage to laser diodes.
Do not insert anything into laser aperture as it may damage mirrors or cause motors to become
misaligned. Do not power up laser if aperture is obstructed in any way.
The ORLASER103 should never be connected to any kind of external AC dimmer, and operate only at
intended voltage. There are no user serviceable parts inside. Should the Scanner fail, it should be
referred to qualified service technician for repair.

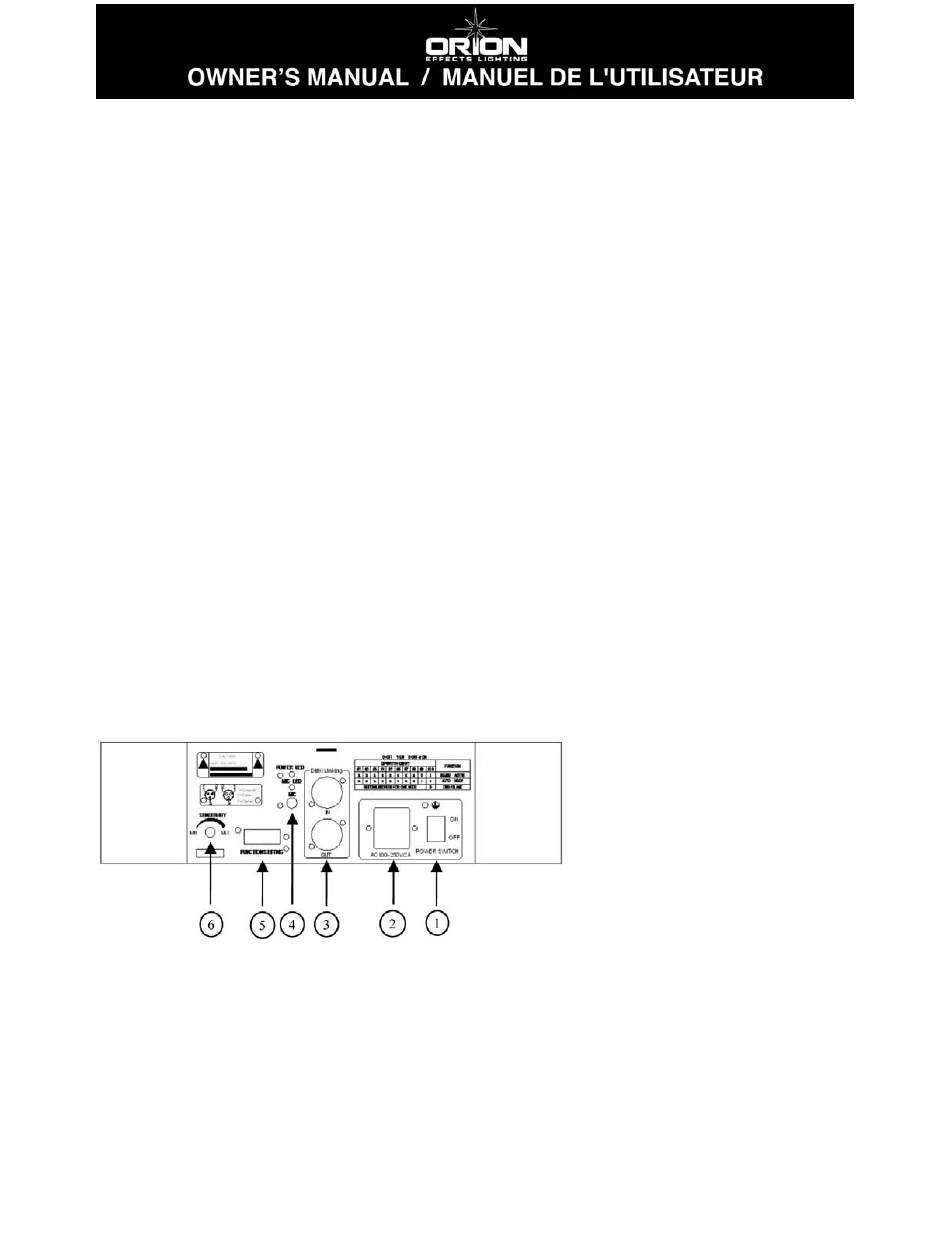

ORLASER103 Back Panel
1 – Power Switch
2 – AC Input
3 – XLR DMX/Link Input / Output
4 – Mic & LED Indicators (Sound Active Mode)
5 – DIP Switches
6 – Audio Sensitivity Knob
