INSTRUCTIONS TO REPLACE #2 CHAIN
INSTALL #2 CHAIN
REQUIRED MATERIAL:
COMPLETE REPLACEMENT: 2
OR
CHAIN EXTREMITY REPLACEMENT: NO. 40 CHAIN LINK KIT (I-BMDPL908)

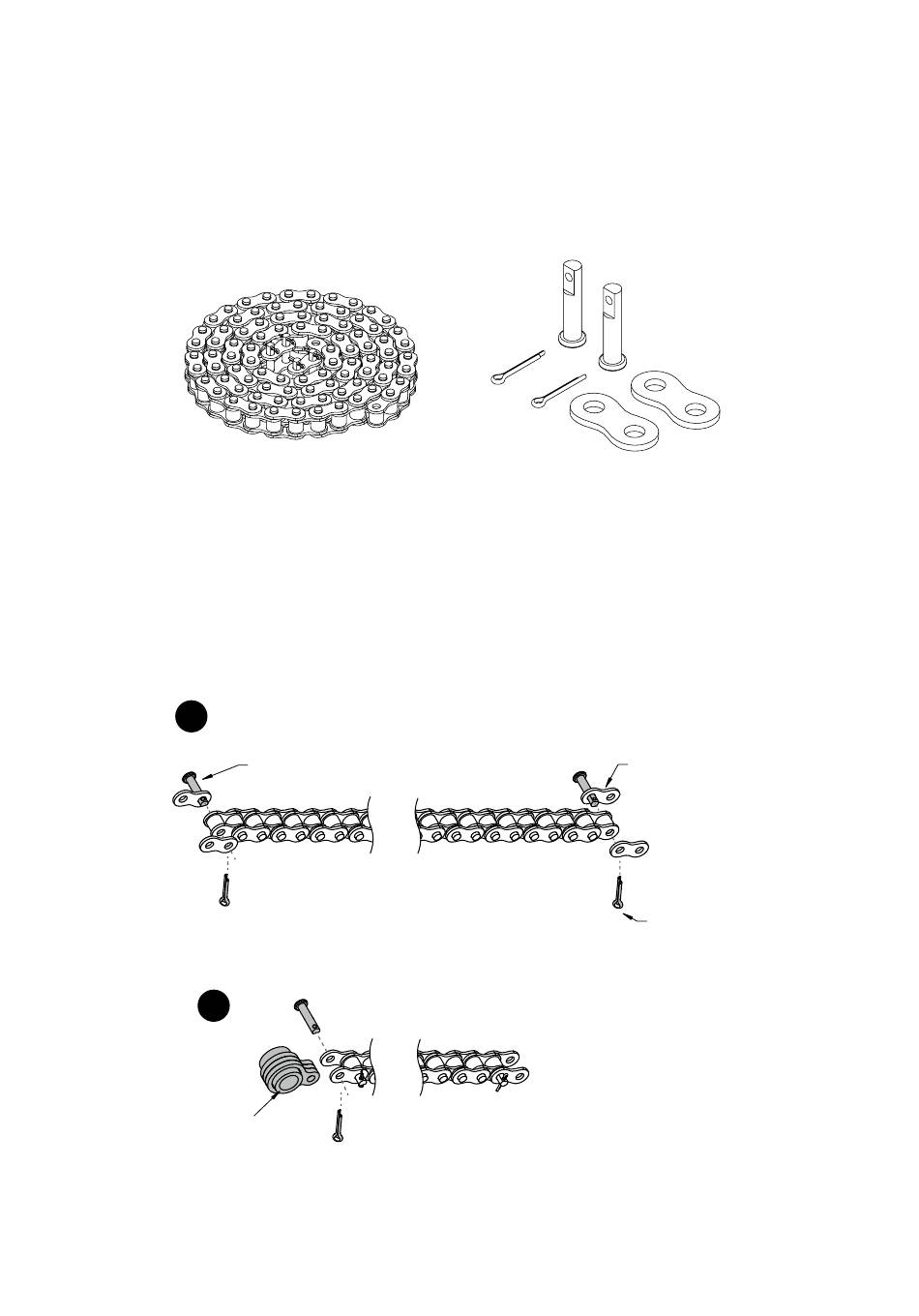

1. Attach a pair of chain plates at each end of #2 chain with a pin and a cotter pin as shown below.
Bend the cotter pin.
2. Attach one end of #2 chain to the chain no.40 support part with a pin and a cotter pin. Bend the cotter pins
1
CHAIN NO.40
SUPPORT
8
All manuals and user guides at all-guides.com
MAST CHAIN KIT (I-BMDPL912)
ND
I-BMDPL912
PIN
2
I-BMDPL908
CHAIN PLATES
COTTER PIN
