Read and understand these instructions before installing luminaire.
Use only with reflectors and accessories compatible with this series and provided by Signify. Use of other
manufacturers products may void the Underwriters Laboratories listing and could constitute a fire hazard.
Lens
holder
Accessory holder
2/27/2020
page
1
www.lightolier.com
Retain these instructions for maintenance reference
Caution (RISK OF FIRE)
Adjustable
luminaire
Hexagonal louver
Accessory holder
Snoot
IS-C3CAH
ACCENT
ACCESSORY HOLDER
Cylinder SKU Series
C3CSA, C3CPSA

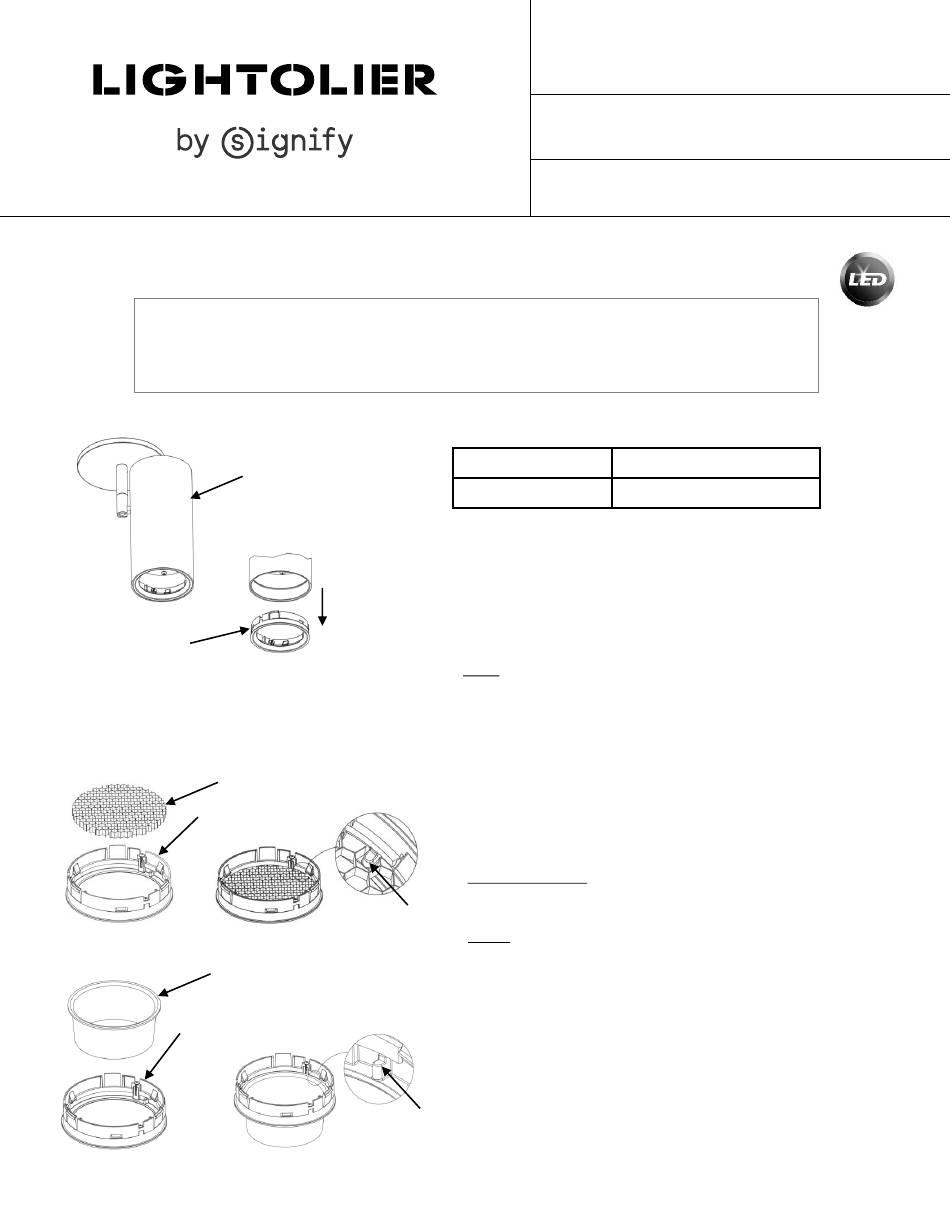

Step 1
-Remove the Lens Holder from the Adjustable Luminaire.
Note:
Keep Lens Holder for further usage.
Step 2
-Insert the Hexagonal Louver or the Snoot inside the Accessory
Holder.
Hexagonal Louver:
Position the Tab inside open cell of the Hexagonal Louver.
Tab
Snoot:
Position the Snoot flange on the Tab.
Tab
Use with Accessory Holder
C3CAH_-SERIES
