OPER ATION MANUAL E X ZELLENZ HDMI WIRELESS
Package contents:
• 1 x wireless HDMI transmitter
• 1 x wireless HDMI receiver
• 1 x IR transmitter
• 1 x IR receiver
• 2 x 5 V/1 A power supply units with Micro B plugs | Model S006AKV0500100
CONNECTION & OPERATION
IR TX
Quelle/Source
CONNECTION

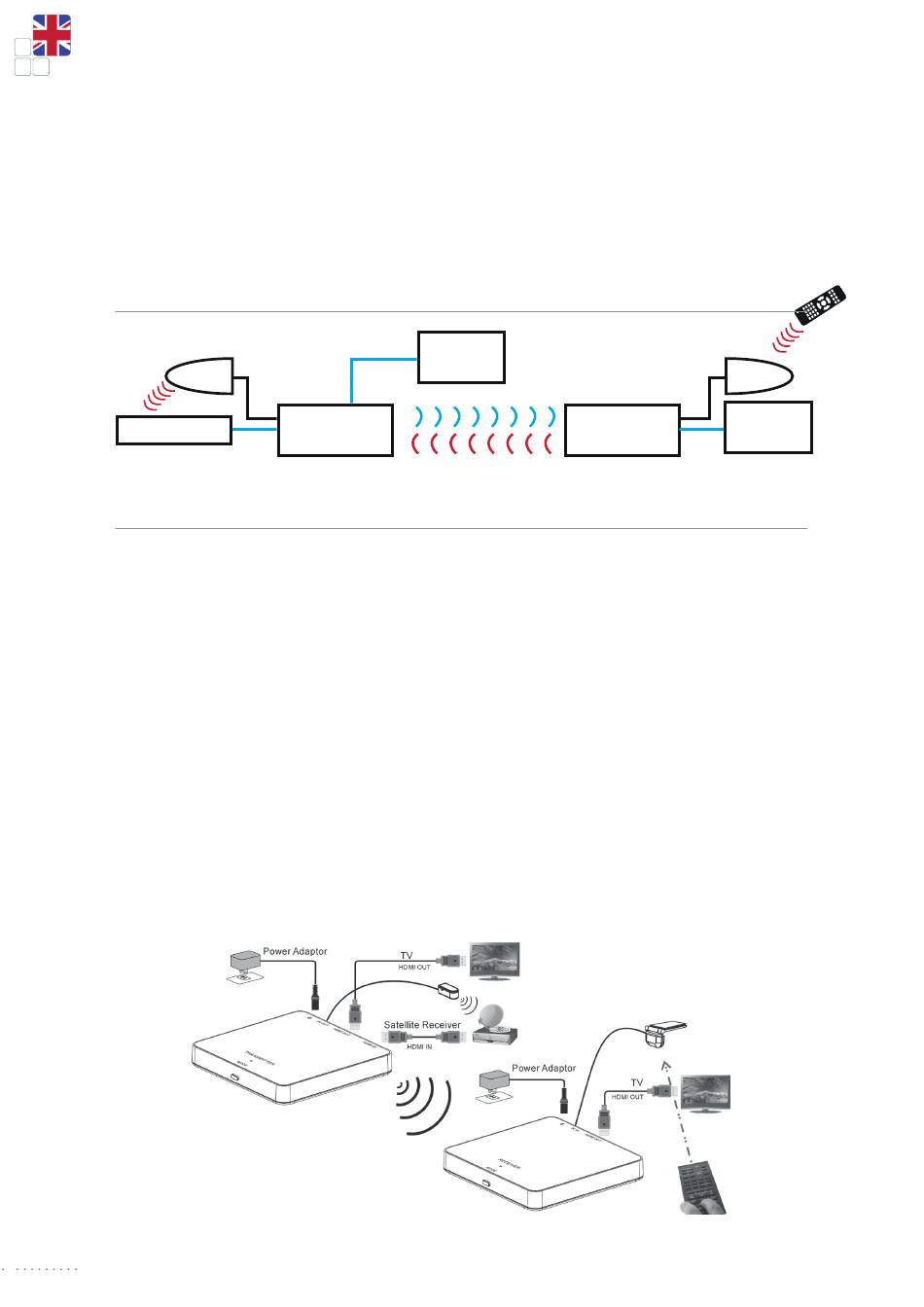

Step 1: Use HDMI cable to connect the HDMI IN of Excellence HDMI Transmitter to a Source device (DVB-
T/C/S, BD player, PS3/4, XBox...), if you want to watch the source program on the same time , you can use
another HDMI cable connected the HDMI OUT to display (HDTV).
Step 2: Use HDMI cable to connect the HDMI OUT of the receiver to a display device (HDTV, Projector...)
Step 3: Connect the IR emitter to the Transmitter. And then place the emitter probe in front of the source
device's IR receiver. Connect the IR receiver to the receiver. And then place the receiver probe in front . (If you
do not need the IR extending function, please skip step 3)
Step 4: Connect a DC 5V/1A power adaptor to the Power Jack (MicroUSB) of the Transmitter.
Step 5: Connect another DC 5V/1A power adaptor to the Power Jack (MicroUSB) of the Receiver.
Step 6: Connection Finish. If you can not get image on your display device, please pairing the TX and RX first.
Press the MODE key of RX box and then press the MODE key of TX box.
10
TV 1
HDMI
Transmitter
IR RX
HDMI
TV 2
Receiver
