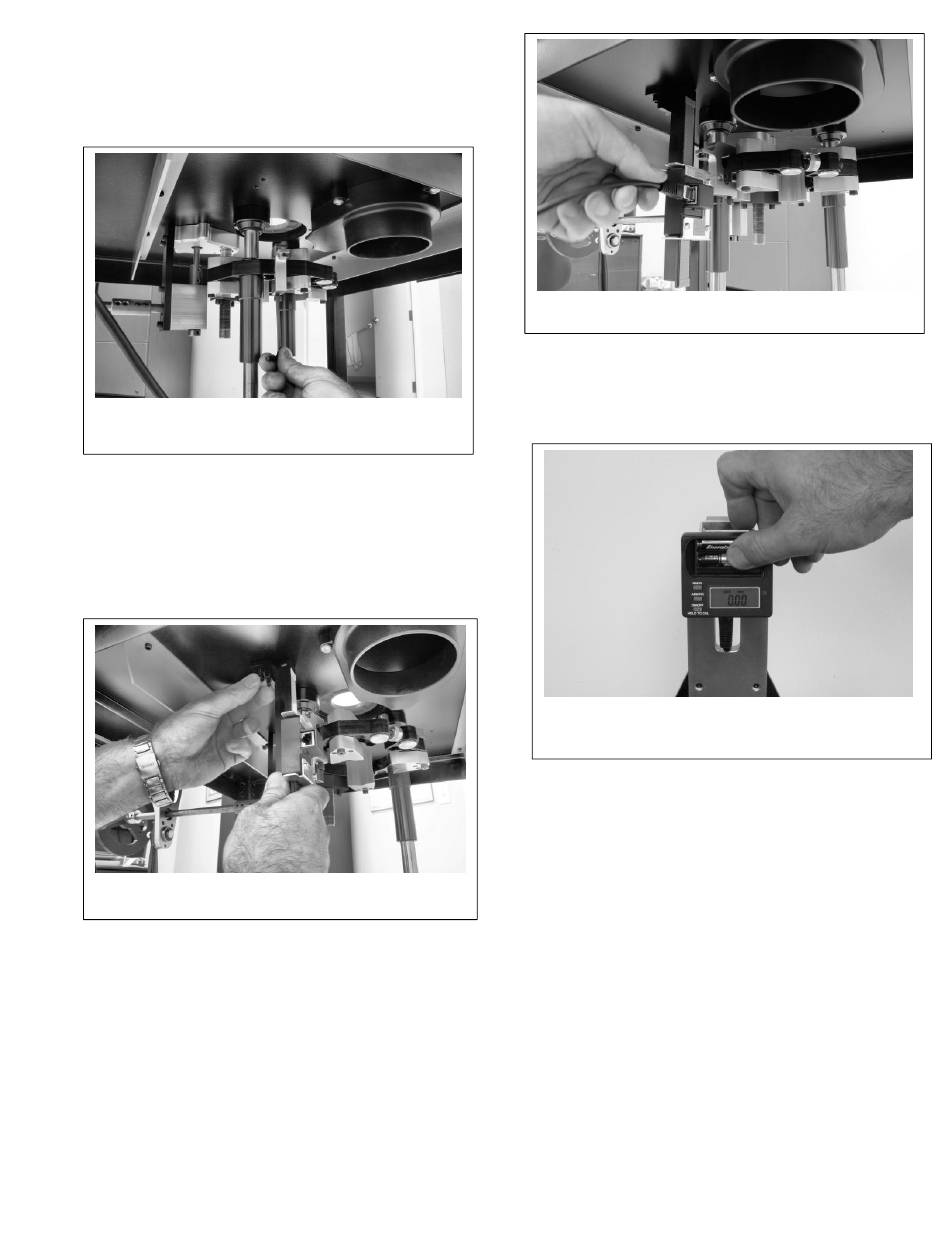

Step 3: Attach the Magnet Clamp Assembly to
the carriage. Note the position in Figure 3 and
tighten the ¼-20 Cap Screws with the 3/16
hex key.
Figure 3
Step 4: Mount the Scale and Sensor Assembly
to the underside of your Excel II table by aligning
the two tapped holes predrilled in the Excel II
and secure the bar with the ¼-20 cap screws.
(Figure 4)
Figure 4
Step 5: Plug in the other end of the CAT 5E
Shielded Cable into the Digital Readout Sensor.
(Figure 5) .
All manuals and user guides at all-guides.com
Figure 5
Step 6: Install two (2) "AAA" Batteries (not
included) into the display. (Figure 6)
