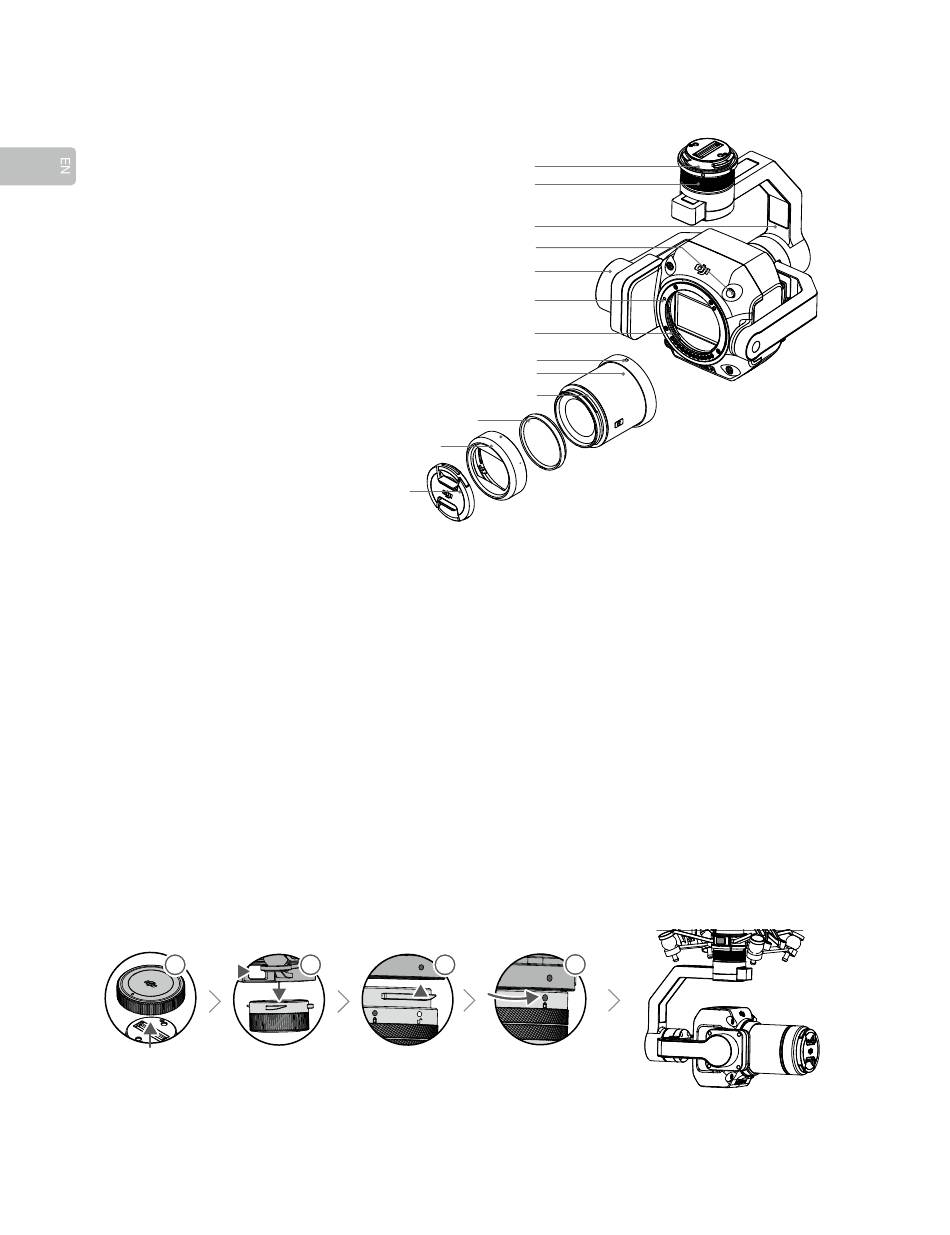

Overview
1. Gimbal Connector
2. Pan Motor
3. Roll Motor
4. Lens Release Button*
5. Tilt Motor
6. Lens Mounting Index
7. Lens Mount
8. Lens Mounting Index
9. Lens**
10. Lens Hood Mounting Index
11. Balancing Ring
12. Lens Hood
13. Lens Cap
* DO NOT press the lens release button while attaching the lens.
** The DJI DL 35mm F2.8 LS ASPH Lens is included with the Zenmuse P1. Contact local dealers for more
information on how to purchase other compatible lenses. Refer to Specifications to check supported lens
models.
Installation
1. Remove the gimbal cap.
2. Press the button on the aircraft used for detaching the gimbal and camera. Rotate the gimbal cap on
the aircraft to remove.
3. Align the white dot on the gimbal with the red dot on the aircraft and insert the gimbal.
4. Rotate the gimbal lock to the locked position by aligning the red dots.
1 1
4
11
12
13
2
3
1
2
3
4
5
6
7
8
9
10
4
