3. Identifying the Parts

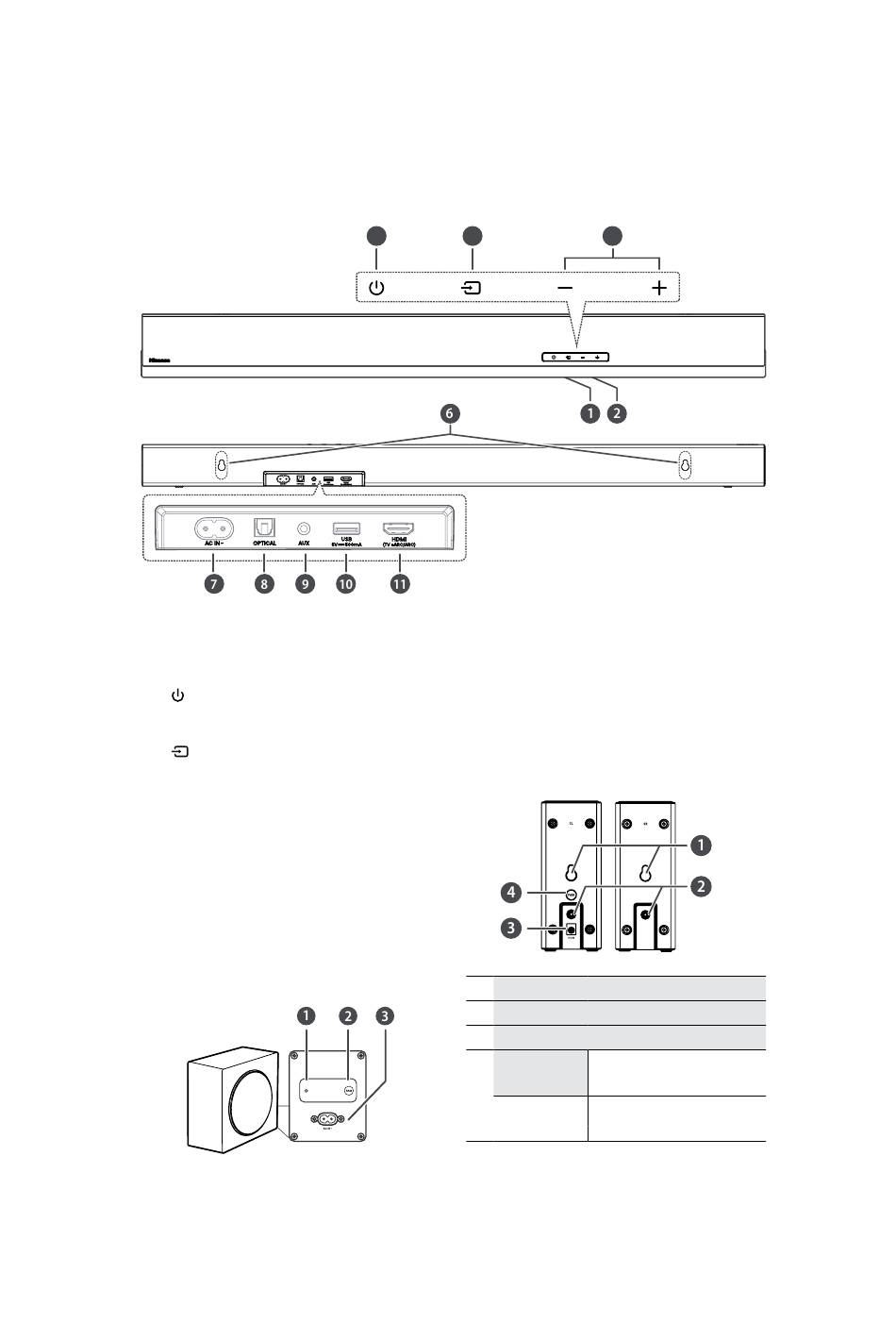

3.1 Soundbar

TOP
BACK
1 Remote Control Sensor
Receive signal from the remote control.
2 Display Window
Show the current status.
(ON/OFF) button
3
Switch the soundbar between ON and
Standby mode.
(SOURCE) button
4
Select the play function.
+/−( VOL) buttons
5
Increase/decrease the volume level.
6 Wall bracket screws
AC IN ~ Socket
7
Connect an AC power cord.
OPTICAL Socket
8
AUX Socket
9
10 USB Socket
Insert the USB device to play music.
11 HDMI (TV eARC/ARC) Socket
Connect to a TV via HDMI cable.
6
3 4

3.2 Wireless Subwoofer

1 Pairing Indicator
Light stops blinking once the subwoofer is
paired with the soundbar.
PAIR button
2
Activate the pairing function between
the soundbar and subwoofer.
AC IN~ Socket
3
Connect an AC power cord.

3.3 Surround Speakers

1
Wall bracket slot
2
Surround (left / right) Socket
3
DC IN Socket
PAIR
4
button/Indicator
• Fast blink
• Constant on
• Slow blink
5
Activate the pairing function
between the main unit and the
surround.
Surround in pairing mode
Connected / Paired successful
Connection / Pairing Failed
