5.3.4 Install Hub 2000
Tips:
• Please install the Hub 2000 in a place out of direct sunlight.
• The length of our solar cables are 3 meter（need to be purchased
additionally）, so before confirming the location of the Hub 2000's installation,
please measure the distance from Solar connector of solar panel to Solar
connector of Hub 2000.
• The Hub 2000 does not come with a Wi-Fi antenna installed. Please install the
Wi-Fi antenna on the Smart PVHub before mounting it on the wall.
1
3
1
2
4

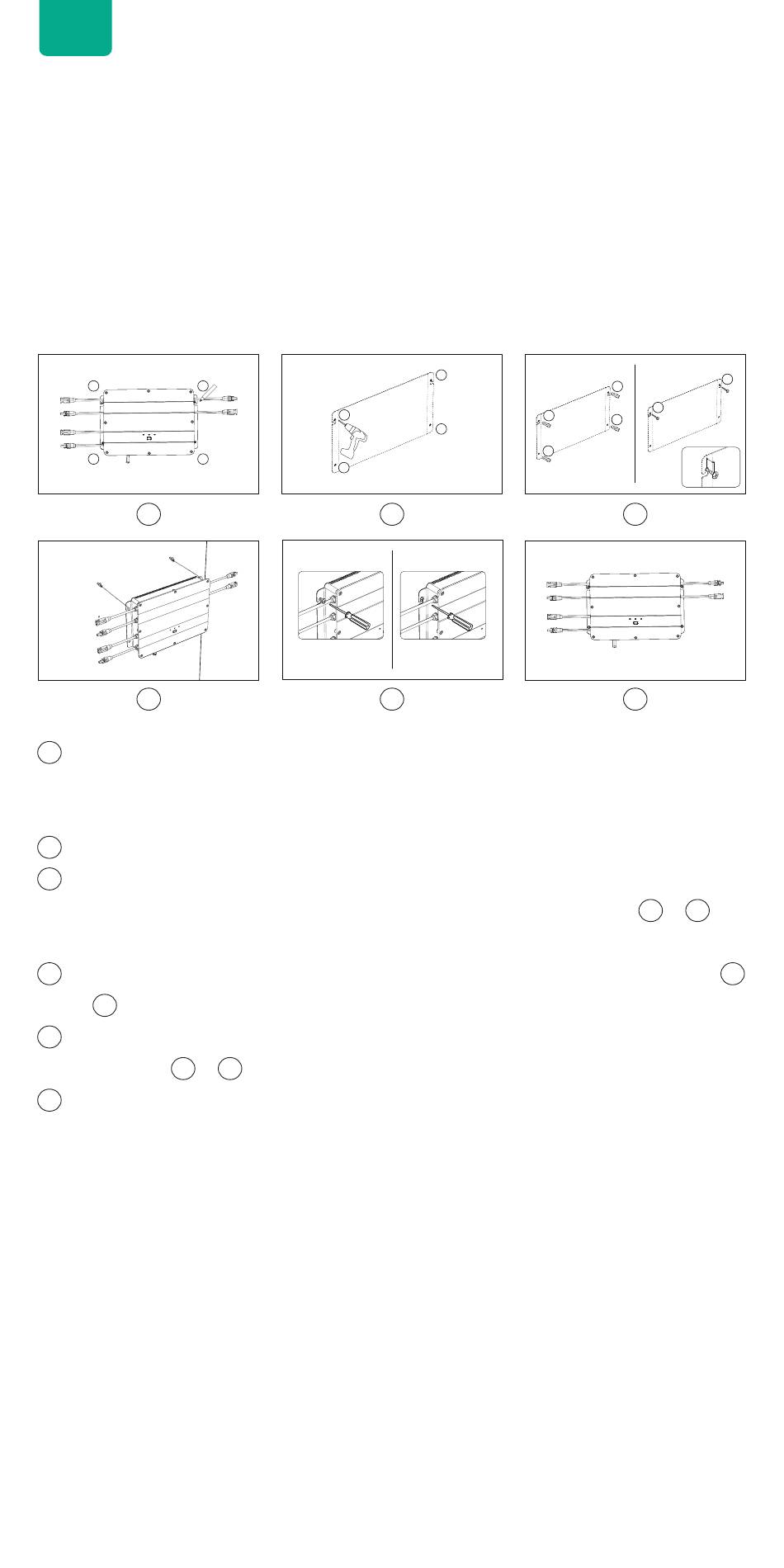

Mark Location, Find a wall you plan to install, one person fixes the Hub 2000
1
on the wall with his hands, and the other person marks the positions of the
four screw holes of the Hub 2000 with a marker.
Drilling,drill four diameter 8mm mounting holes at the four marked positions.
2
Installing screws,first Respectively Install the yellow plastic expansion screw
3
tube into the 4 holes which step 3 drilling,then screw 2/3 of the
screws into the yellow plastic expansion tube.
Hang Hub 2000, please hang the Hub 2000 on exposed part of the screw
4
&
.
2
One person fixes the Hub 2000 with both hands, and the other one screws
5
the rest of
1
Install another two screws, screw 3 and 4 into the yellow plastic expansion
6
tube and completely into the wall.In this way, you have completed the
installation of Hub 2000.
5.3.5 Install Microinverter
Tips:
The method of assembly is subject to the instructions of the Microinverter.
• In order to less connections, it is recommended that Microinverter is installed
between Hub 2000 and home socket, close to the PV Hub.
• Ensure a distance of at least 50mm between the Hub 2000 and the
Microinverter to dissipate heat.
12
2
1
4
3
3
&
screw into the wall completely.
