Connection scheme
The power cable must be separated from the signal cable as per regulations
The shield of the signal cables (On/Off and 0-10Vdc or Modbus) must be connected to the gnd on the control
unit side and not to earth.
Tighten the M4 screws of the terminal block cover with a torque of 3 Nm.
6.3 Alarm
The following table shows the identification codes of the possible alarms that the device can generate:

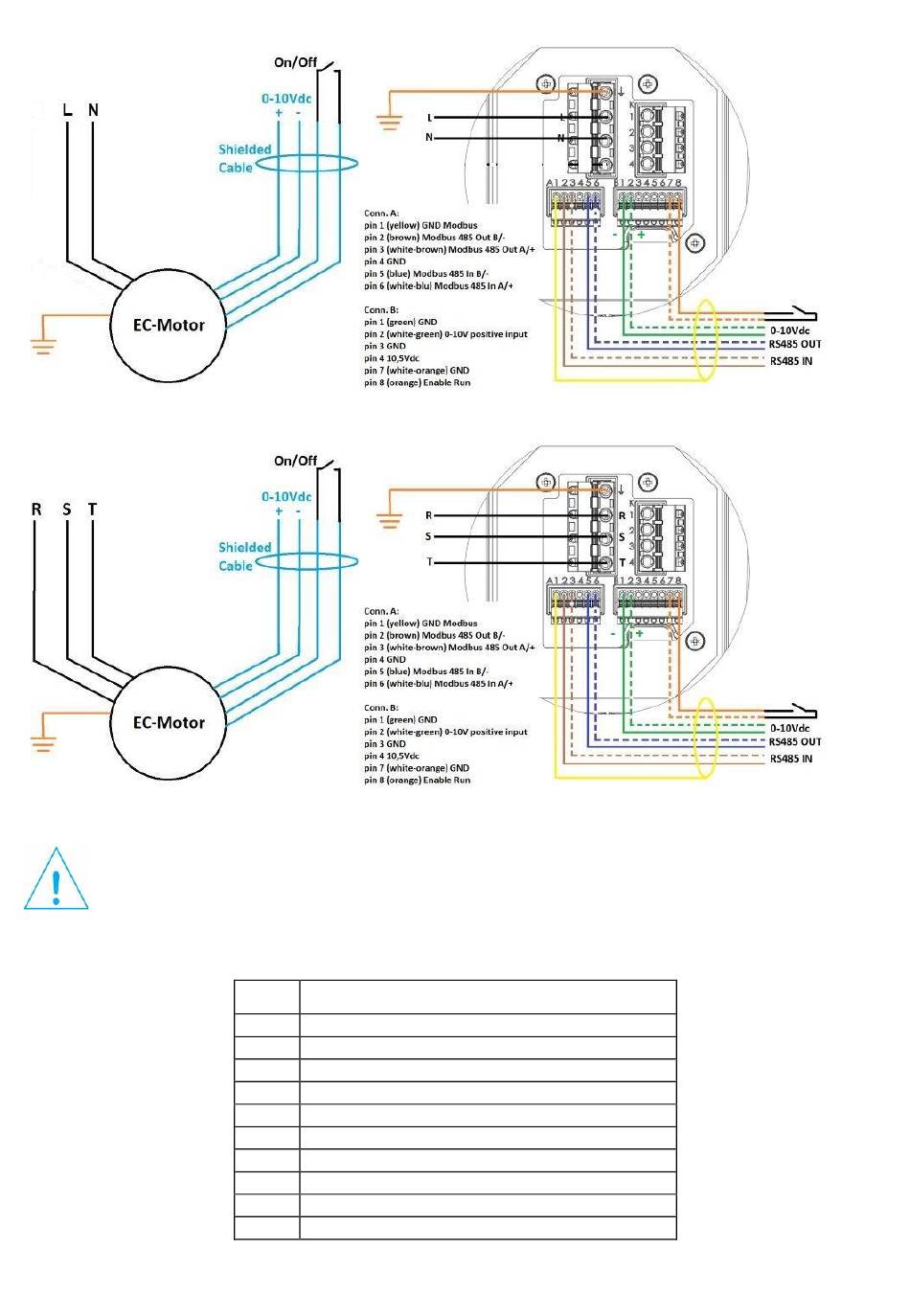

fig.3 wiring diagram for single-phase models
fig.4 wiring diagram for three-phase models
Code Description
1 Over Voltage: device supply voltage too high
2 Under Voltage: supply voltage too low
3 Temperature too high
4 Over Current (lock)
5 Loss of synchronism (lock)
6 Over Current
7 Loss of synchronism
8 Internal communication loss
9 Extra energy dissipated by the braking resistor
10 Broken fuse or loss of phase
