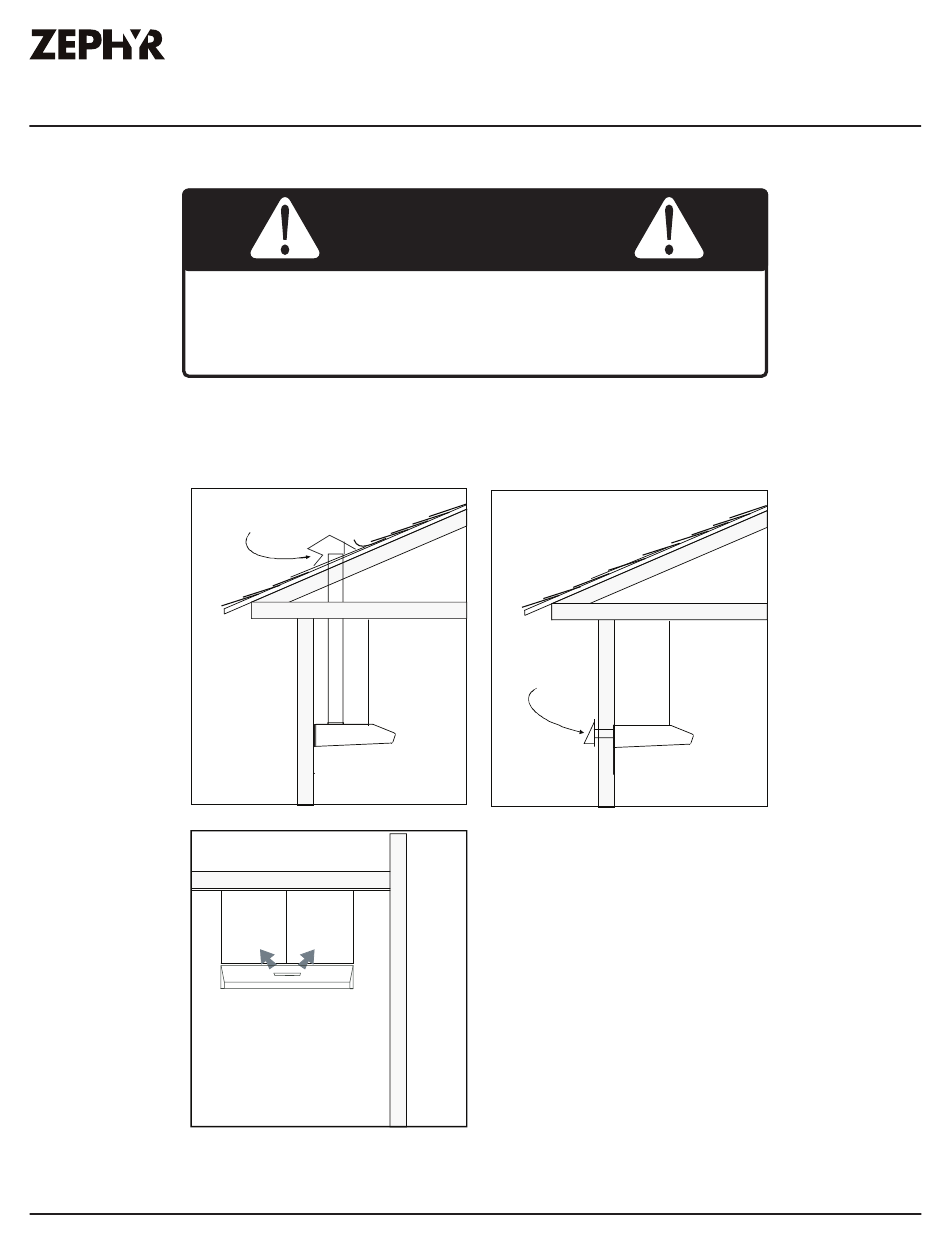

Ducting Options
spaces between walls, crawl spaces, ceilings, attics, or garages.
►
Use single wall rigid metal ductwork only.
►
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Roof Pitch w/
Flashing & Cap
vertical ducting
vertical ducting
(AK12 only)
Breeze I & Breeze II Use, Care, and Installation Guide
WARNING
Fire Hazard: NEVER exhaust air or terminate ductwork into
All exhaust must be ducted to the outside, unless using the
recirculating option.
3-1/4"x10"
7" round
Ductless Recirculation
Installation Instructions
Rear Ducting
horizontal ducting
3-1/4"x10"
