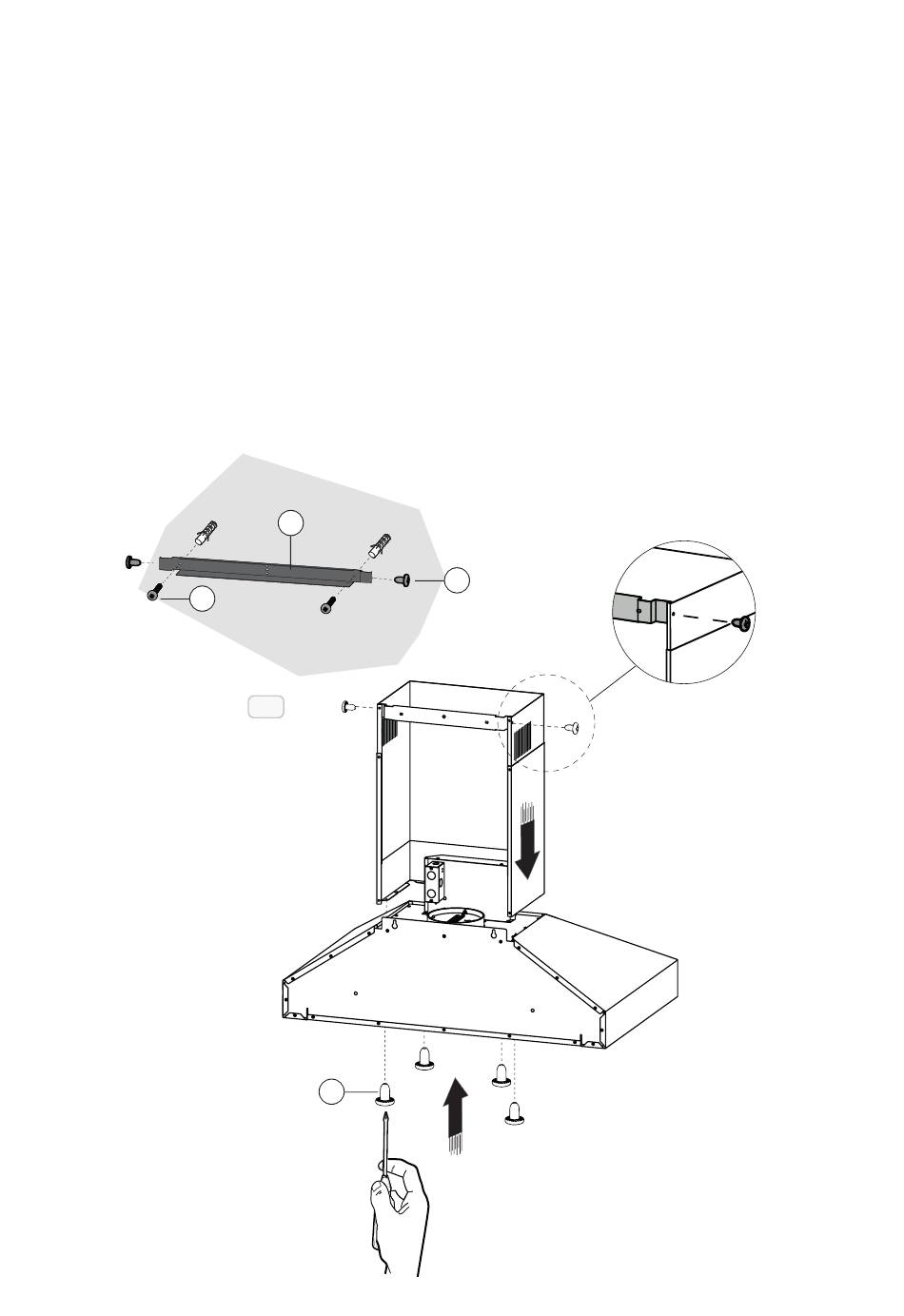

• Mounting the hood to the wall
Position the fixing template on the wall (taking into account the minimum distance
from the hob).
- Drill 4 holes respecting the size indicated on the fixing template.
- Fix the appliance to the wall with screws A and align it horizontally with the wall
units. After adjusting the appliance, fix the hood permanently with screws B. For the
various installations, use screws and dowels suitable for the type of wall (e.g. rein-
forced concrete, plasterboard, etc.). If screws and dowels are supplied with the prod-
uct, check that they are suitable for the type of wall to which the hood is to be fixed.
- Fasten bracket D to the wall so that it is aligned with the hood with screws C .
- Fasten the decorative chimneys to the hood with screws G.
- Slide the upper decorative chimney onto bracket D and fasten it with screws E.
D
E
C
A
G
