Kia J7280ADE00 Instructions De Montage
  1. Manuels
  2. Marques
  3. Kia Manuels
  4. Accessoires de voiture
  5. J7280ADE00
  6. Instructions de montage

Kia J7280ADE00 Instructions De Montage

Masquer les pouces

Publicité

Liens rapides

Télécharger ce manuel

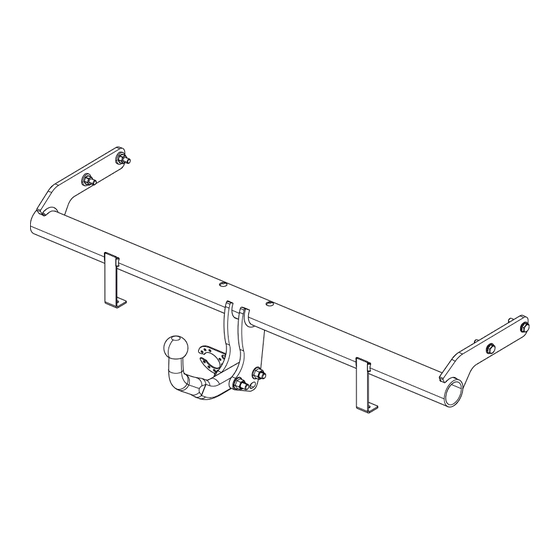

Ceed 5dr
J7280ADE00
Ceed 5dr (CD, MY18-MY21 PE)
Ceed 5dr (CD, PE MY21-)
P 2, 3
P 4
Fig 1-22
E11*55R 0111336
according to ECE Reg. N°55 / ECE-R55
1,5hrs
i
P 17
P 19
Genuine Accessoires developed by MOBIS
P1 / 20
J7280ADE00#22-09-2021 REV03
