Step 3
K-3
B-3
B-3
K-3
"Top View"
D-3
B-3
A-3

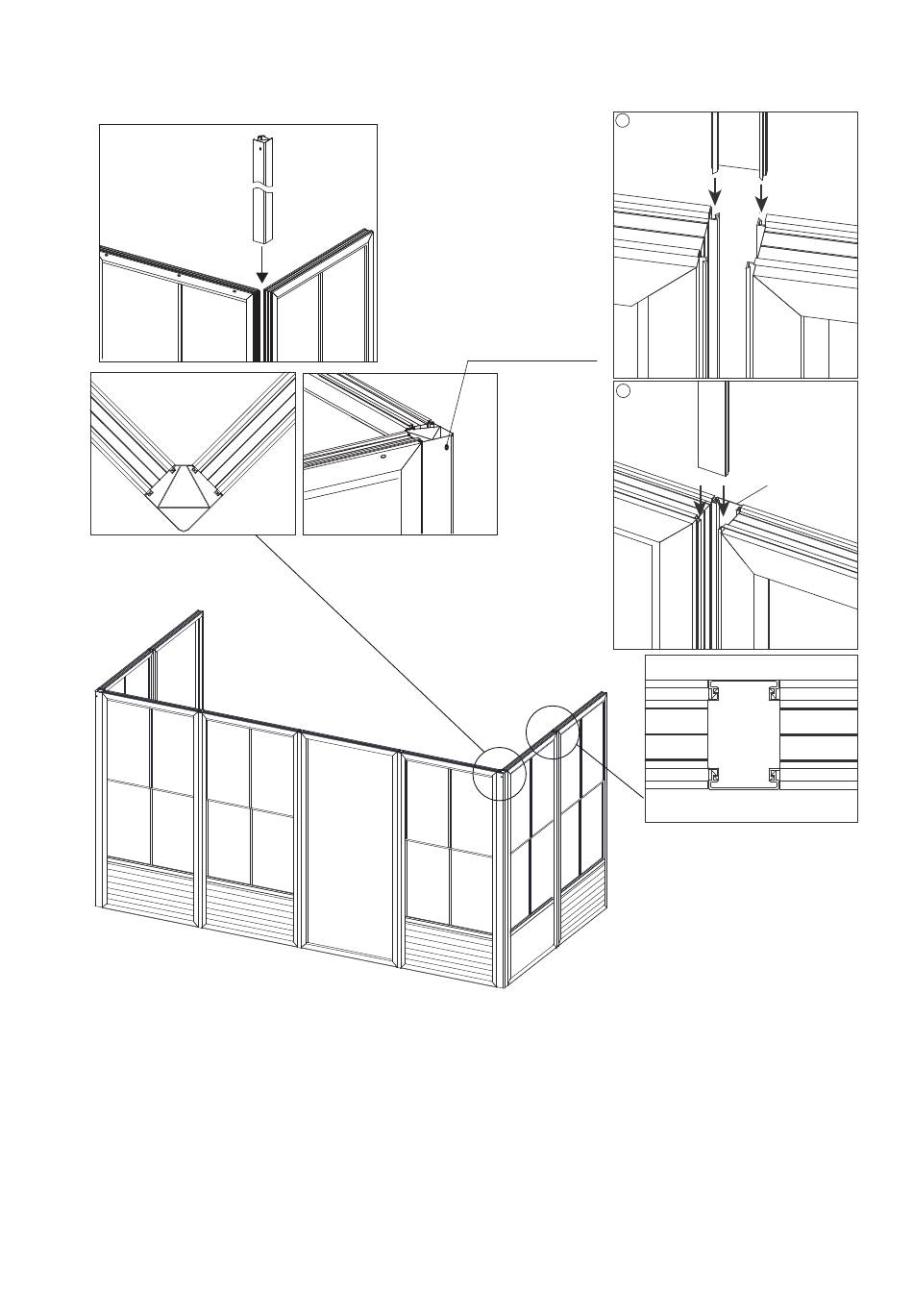

3. Connect the remaining Regular Frame (A-3) with Corner Connector (K-3) and Connecting
Piece (E-3). (See sketch on page 8)
NOTE: When placing the door frame opening, make sure the inserts on the frame are on the
inside and on the upper half of the frame of the solarium because the door will be set on the
inside due to clearance.
A-3
A-3
B-3
A-3
D-3
Note the direction
of the screw hole
A-3
K-3
A-3
B-3
