Sensor connections on 2033 C2
C1 Series

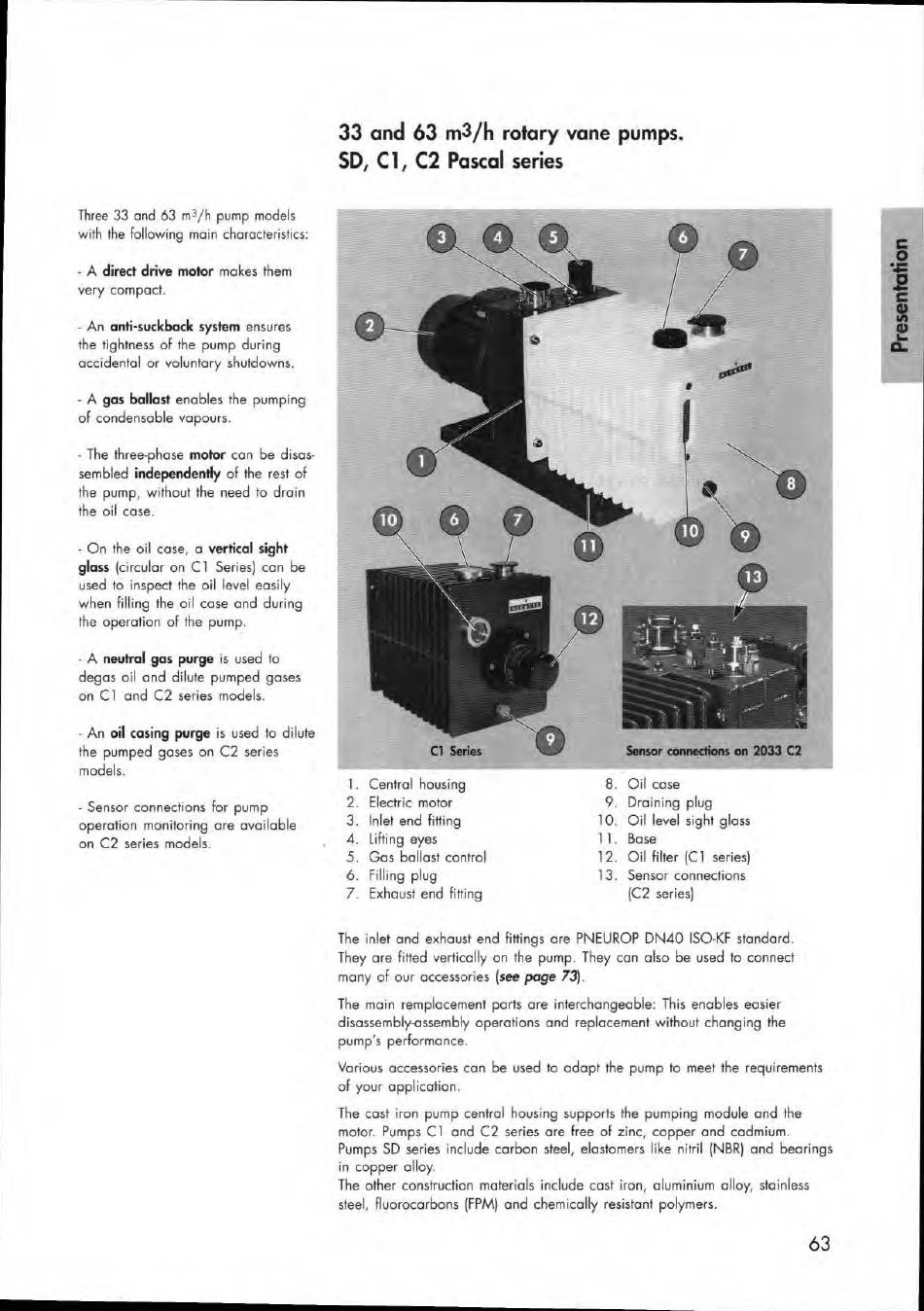

33 and 63 m3/h rotary vane pumps.
SD, Cl, C2 Pascal series
1. Central housing
8. Oil case
2. Electric motor
9. Draining plug
3. Inlet end fitting
10. Oil level sight glass
4. Lifting eyes
1 1. Base
5. Gas ballast control
12. Oil filter (C1 series)
6. Filling plug
1 3. Sensor connections
7. Exhaust end fitting
(C2 series)
The inlet and exhaust end fittings are PNEUROP DN4 0 ISO-KF standard.
They are fitted vertically on the pump. They can also be used to connect
many of our accessories
(see page
73).
The main remplacement parts are interchangeable: This enables easier
disassembly-assembly operations and replacement without changing the
pump's performance.
Various accessories can be used to adapt the pump to meet the requirements
of your application.
The cast iron pump central housing supports the pumping module and the
motor. Pumps Cl and C2 series are free of zinc, copper and cadmium.
Pumps SD series include carbon steel, elastomers like nitril (NBR) and bearings
in copper alloy.
The other construction materials include cast iron, aluminium alloy, stainless
steel, fluorocarbons (FPM) and chemically resistant polymers.
Three 33 and 63 m 3/h pump models
with the following main characteristics:
- A direct drive motor makes them
very compact.
- An anti-suckback system ensures
the tightness of the pump during
accidental or voluntary shutdowns.
- A gas ballast enables the pumping
of condensable vapours.
- The three-phase motor can be disas-
sembled independently of the rest of
the pump, without the need to drain
the oil case.
- On the oil case, a vertical sight
glass (circular on C 1 Series) can be
used to inspect the oil level easily
when filling the oil case and during
the operation of the pump.
- A neutral gas purge is used to
degas oil and dilute pumped gases
on C 1 and C2 series models.
- An oil casing purge is used to dilute
the pumped gases on C2 series
models.
- Sensor connections for pump
operation monitoring are available
on C2 series models.
63
