RIB TOUCH Wi-Fi 2.0 Mode D'emploi page 16

G
B

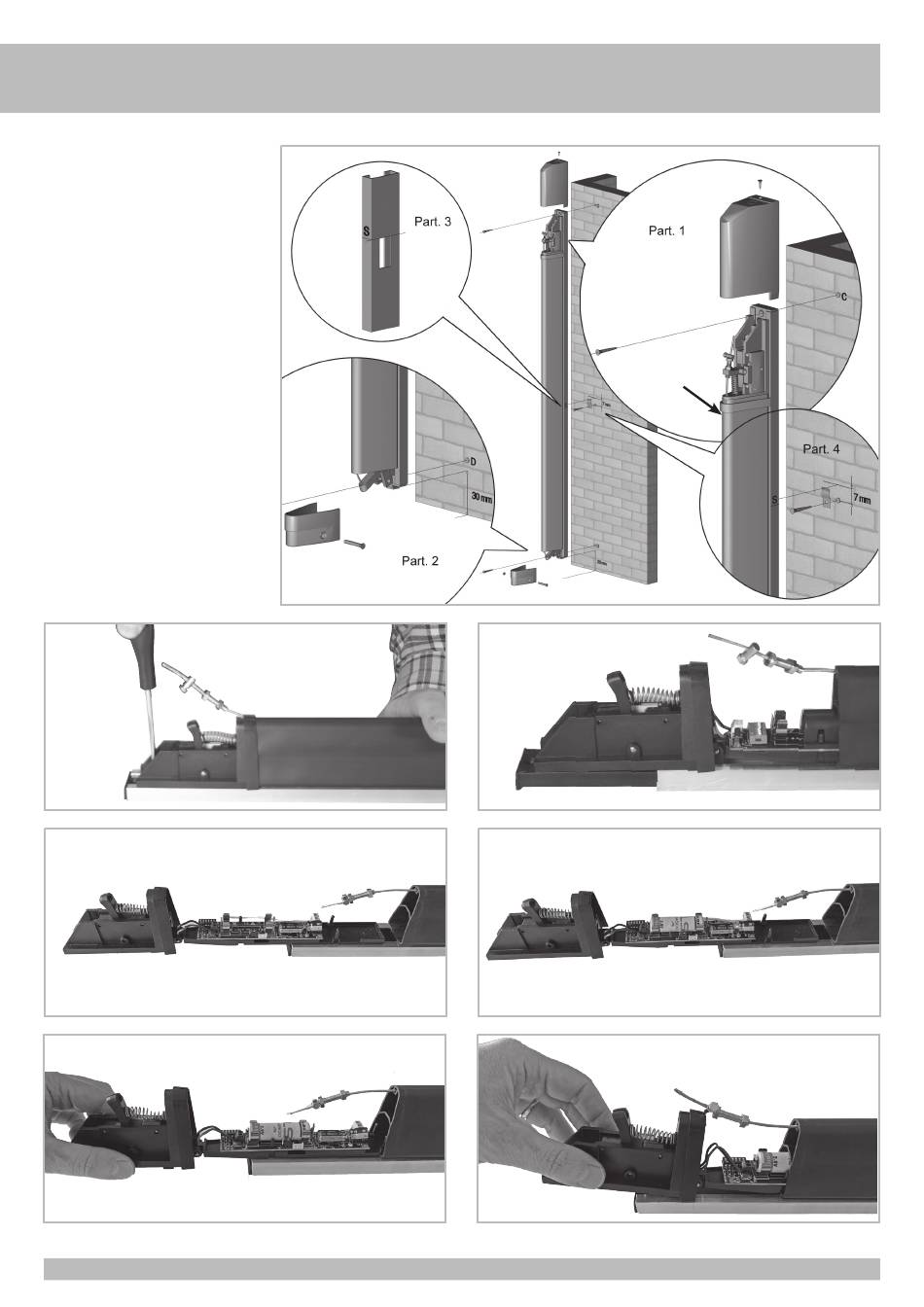

1 - Unscrew fastening screws of upper cover and
remove it (pict. 2 - part. 1).
- Unscrew gland bolts from upper part (pict. 3).
- Remove upper part complete with the adjacent
electronic board (pict. 4-5).
- Insert a lithium type AA battery 3,6V and pay
attention to the polarities (pict. 6).
- Identify and memorize electronic board as
indicated below.
- Insert electronic card with mechanical assembly
into rubber profile (pict. 7-8-9).
- Insert steel cable into appropriate slot on
mechanical assembly (pict. 10).
- Lock mechanical assembly to aluminum profile
using screws loosened previously (pict. 11).
- Insert steel cable into slot located on lever (pict.
12).
* Once the safety edge is fixed, make sure there
are no gaps in between the parts indicated.
The rubber profile and the parts above it, must
perfectly adhere to avoid the passage of rain or
insects.
