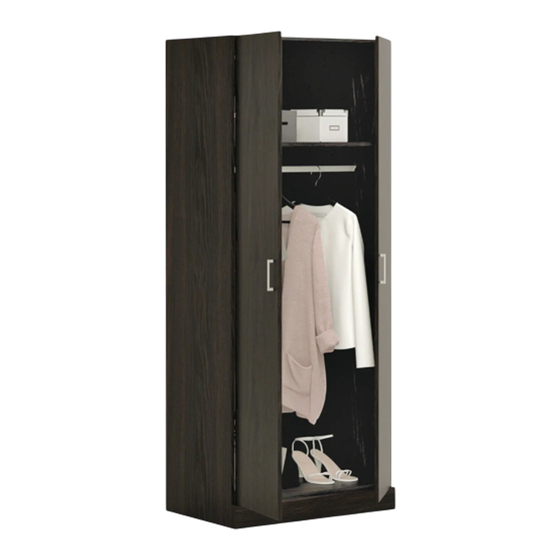

Wardrobe
Model 426928
Sauder.com
Share your journey!
All manuals and user guides at all-guides.com
to order replacement parts, view video assembly tips, or chat with a live rep.
1-800-445-1527
.
WARNING
CHOKING HAZARD - Small Parts
Not for children under 3 years.
Adult assembly required.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-20
Français pg 21-24
Español pg 25-28
Lot # 543100
Purchased: __________________
03/19/20
Publicité
Manuels Connexes pour Sauder 426928
Sommaire des Matières pour Sauder 426928
- Page 1 CHOKING HAZARD - Small Parts Not for children under 3 years. Adult assembly required. Wardrobe NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Model 426928 PLEASE READ AND KEEP FOR FUTURE REFERENCE. Sauder.com English pg 1-20 Français pg 21-24 Español pg 25-28...
- Page 2 Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identification Assembly Steps 5-20 Hammer Not actual size Français 21-24 Español 25-28 Electric drill with 1/8" bit (ONLY in indicated step) Safety 29-30 Warranty Page 2 www.sauder.com/service 426928...
- Page 3 Use this part identification to help identify similar parts. LEFT END (1) BACK (1) BRACE (1) RIGHT END (1) TOP/BOTTOM (2) BACK SKIRT (1) DOOR (2) SHELF (1) FRONT SKIRT (1) 426928 www.sauder.com/service Page 3...
- Page 4 BUMPER CARD - 1 PULL - 2 ROD - 1 ROD HANGER - 2 FURNITURE TIPPING RESTRAINT KIT - 1 1/2" FLAT HEAD SCREW - 48 1-9/16" FLAT HEAD SCREW - 16 15/16" PAN HEAD SCREW - 4 Page 4 www.sauder.com/service 426928...
- Page 5 All manuals and user guides at all-guides.com Step 1 Look for this icon. It means a video assembly tip is available at www.sauder.com/service/tips Find the numbered video or scan the QR code. å Assemble your unit on a carpeted floor or on the empty carton to avoid scratching your unit or the floor.
- Page 6 1-9/16" FLAT HEAD SCREW (6 used in this step) Unfinished edge Unfinished edge i t h f a c S u r h o l h o l i t h f a c S u r Page 6 www.sauder.com/service 426928...
- Page 7 All manuals and user guides at all-guides.com Step 3 å Fasten the BRACE (G) to the LEFT END (A). Use two 1-9/16" FLAT HEAD SCREWS (11) 1-9/16" FLAT HEAD SCREW (2 used in this step) Unfinished edge 426928 www.sauder.com/service Page 7...
- Page 8 Fasten a METAL BRACKET (2) to the BACK SKIRT (H). Use two 1/2" FLAT HEAD SCREWS (10). 1/2" FLAT HEAD SCREW (4 used in this step) å Insert four WOOD DOWELS (1) into the BACK SKIRT (H) (4 used) Page 8 www.sauder.com/service 426928...
- Page 9 SHELF (F), BRACE (G), and BACK SKIRT (H). Use eight 1-9/16" FLAT HEAD SCREWS (11) å NOTE: Be sure the WOOD DOWELS in the BACK SKIRT insert into the ENDS. Unfinished edge 1-9/16" FLAT HEAD SCREW (8 used in this step) 426928 www.sauder.com/service Page 9...
- Page 10 BACK fastened. The unit may collapse. "square". å Fasten the BACK (D) to your unit using the NAILS (4). The NAILS should be 4" apart and 1/4" in from the edges. NAIL 4" (52 used in this step) 1/4" Page 10 www.sauder.com/service 426928...
- Page 11 å Fasten the BACK SKIRT (H) to the TOP/BOTTOM (E) as shown. Use two 1/2" FLAT HEAD SCREWS (10) through the METAL BRACKET and into the TOP/BOTTOM. 1/2" FLAT HEAD SCREW (2 used in this step) 426928 www.sauder.com/service Page 11...
- Page 12 Fasten four METAL BRACKETS (2) to the FRONT SKIRT (J). Use eight 1/2" FLAT HEAD SCREWS (10) Now might be a good time to refresh your drink. 1/2" FLAT HEAD SCREW (8 used in this step) Page 12 www.sauder.com/service 426928...
- Page 13 All manuals and user guides at all-guides.com Step 9 å Fasten the SKIRT (J) to the ENDS (A and B). å NOTE: Be sure the WOOD DOWELS in the ENDS insert into the SKIRT. 426928 www.sauder.com/service Page 13...
- Page 14 All manuals and user guides at all-guides.com Step 10 å Fasten the SKIRT (J) to the ENDS (A and B) and TOP/BOTTOM (E). Use eight 1/2" FLAT HEAD SCREWS (10). 1/2" FLAT HEAD SCREW (8 used in this step) Page 14 www.sauder.com/service 426928...
- Page 15 All manuals and user guides at all-guides.com Step 11 å Fasten the HINGES (3) to the DOORS (C). Use twelve 1/2" FLAT HEAD SCREWS (10). 1/2" FLAT HEAD SCREW (12 used in this step) 426928 www.sauder.com/service Page 15...
- Page 16 NOTE: It is recommended you have someone help you with this step. å Fasten the DOORS (C) to the ENDS (A and B). Use twelve 1/2" FLAT HEAD SCREWS (10). 1/2" FLAT HEAD SCREW (12 used in this step) Page 16 www.sauder.com/service 426928...
- Page 17 Fasten the PULLS (5) to the DOORS (C). Use four 15/16" PAN HEAD SCREWS (12). If you're doing this to help a friend, don't leave without a bite. 15/16" PAN HEAD SCREW (4 used in this step) 426928 www.sauder.com/service Page 17...
- Page 18 Drill 1/8" hole into hole in the strap and into the top a stud in your wall. surface of the TOP/BOTTOM (E). Electric drill with 1/8" bit (ONLY in indicated step) (16 used) To cover SCREWS Page 18 www.sauder.com/service 426928...
- Page 19 å To adjust the DOORS in or out (depth), loosen the mounting screw one turn and move the DOORS in or out, as needed. Tighten the mounting screw after making adjustments. 426928 www.sauder.com/service Page 19...
- Page 20 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. And to celebrate, why not share your success story at sauder.com or 40 lbs. Page 20 www.sauder.com/service...
- Page 21 All manuals and user guides at all-guides.com Modèle 426928 Penderie Utilisez les instructions d’ a ssemblage en français avec les NOUS CONTACTER EN PREMIER schémas étape par étape du manuel d’instruction en anglais. AVANT D'EFFECTUER TOUT RETOUR AU MAGASIN. Chaque étape en français correspond à la même étape en Nous faisons de notre mieux pour nous assurer que votre meuble anglais.
- Page 22 CLOUS devraient être placés avec une séparation de 10 cm et 6 à l'EXTRÉMITÉ GAUCHE (A). Utiliser six VIS TÊTE PLATE 40 mm (11). mm en retrait des chants. ÉTAPE 3 Fixer l’ENTRETOISE (G) à l'EXTRÉMITÉ GAUCHE (A). Utiliser deux VIS TÊTE PLATE 40 mm (11). Page 22 www.sauder.com/service 426928...
- Page 23 Fixer les PORTES (C) aux EXTRÉMITÉS (A et B). Utiliser douze VIS Fixer la PLINTHE (J) aux EXTRÉMITÉS (A et B). TÊTE PLATE 13 mm (10). REMARQUE : S’ a ssurer d’insérer les CHEVILLES EN BOIS dans les EXTRÉMITÉS dans la PLINTHE. 426928 www.sauder.com/service Page 23...
- Page 24 Placer la TRINGLE (9) sur les SUPPORTS DE TRINGLE (8) situés sur les EXTRÉMITÉS (A et B). REMARQUE : Prière de lire les informations importantes sur la sécurité figurant sur les pages arrière du manuel d’instructions. Ceci complète l'assemblage. Nettoyer avec un tissu humide. Essuyer. Page 24 www.sauder.com/service 426928...
- Page 25 EXTREMO IZQUIERDO ..........1 PASADOR DE MADERA .........6 su referencia futura. Si necesita ponerse en EXTREMO DERECHO ..........1 SOPORTE DE METAL ..........5 contacto con Sauder en PUERTA ................2 BISAGRA ................6 cuanto a esta unidad, DORSO .................1 CLAVO ................52 refiérase al número de lote y al número de...
- Page 26 6 mm dentro de los bordes. EXTREMO IZQUIERDO (A). Utilice seis TORNILLOS DE CABEZA PERDIDA de 40 mm (11). PASO 3 Fije la RIOSTRA (G) al EXTREMO IZQUIERDO (A). Utilice dos TORNILLOS DE CABEZA PERDIDA de 40 mm (11). Page 26 www.sauder.com/service 426928...
- Page 27 PASO 9 TORNILLOS DE CABEZA PERDIDA de 13 mm (10). Fije el FALDÓN (J) a los EXTREMOS (A y B). NOTA: Asegúrese de que los PASADORES DE MADERA en los EXTREMOS se inserten en el FALDÓN. 426928 www.sauder.com/service Page 27...
- Page 28 EXTREMOS (A y B). NOTA: Por favor, lea las páginas de atrás del folleto de instrucciones en cuanto a importante información de seguridad. Esto completa el ensamblaje. Limpiar con un trapo húmedo. Seque con un paño. Page 28 www.sauder.com/service 426928...
- Page 29 TOUJOURS décharger les tablettes et les tiroirs, en commençant par les surface supérieures, avant de déplacer le meuble. NE JAMAIS pousser ou tirer un meuble sur de la moquette. Demander à une autre personne de le soulever correctement pour le déplacer et/ou le repositionner. 426928 www.sauder.com/service Page 29...
- Page 30 SIEMPRE descargue los estantes y cajones, empezando con las superficies superiores, antes de moverlo. NUNCA empuje ni tire de los muebles sobre una alfombra. Obtenga que un amigo le ayude a levantarlo correctamente para moverlo y/o reposicionarlo. Page 30 www.sauder.com/service 426928...
- Page 31 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
- Page 32 BEFORE MAKING ANY RETURNS TO THE RETAILER. So, how did it go? Dear Valued Customer: Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built.
