Installation
(Piping)
EN

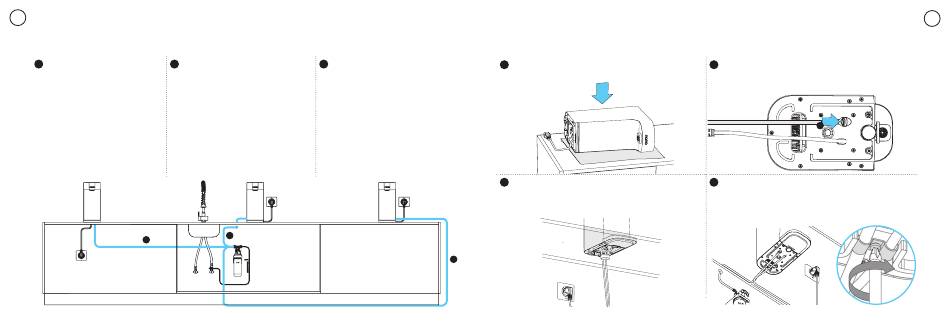

From the under-counter filter, there are several ways to route the 1/4" flexible water pipe to your Nano. Here are three
possible solutions.
Drill a hole under Nano Drill a hole behind Nano
A B
You can fully hide the water pipe and Another solution is to drill a small hole near
even the electrical cord. To do so, you'll the back of the counter to reach the under-
need to drill a hole around 5 cm in counter filter. In this case, you can hide the
diameter. pipe in a cable channel if you want.
1. Before drilling, check to make sure no 1. Drill a hole in the countertop, at least
drawers or hardware will interfere and 7 mm in diameter, to reach the filtration
that the pipe will reach. system.
2. Decide where you want to place your 2. We suggest using angle fittings to direct
Nano and mark the center. Drill a 5 cm the pipe along the counter and through the
diameter hole. hole.
A
8
Go around
C
You can also install Nano without drilling
through the countertop.
1. Below the counter, drill a hole through
the shelf wall or bottom side. Feed the
pipe over the side and through the hole.
2. Use cable channel for fixing and hide
the water pipe.
B
Installation
(Nano)
Connect Nano to the filtration system.
1
Lay the Nano down on a soft cloth to protect it while you
access the inlet water connector on the underside.
For Piping A
A
For A type piping, no need to use the pipe holder part.
C
2
On the bottom, you will find a water inlet connector. There
are two options for leading and fixing the power cable and pipe,
based on your piping installation.
8
For Piping B or C
B
For B or C type of piping, install the pipe holder part to the bot-
tom of Nano. This will fix the power cord and the water pipe in a
right place.
