The indoor unit must be installed such that there is no short
circuit of the cool discharge. Respect the installation
clearance. Do not put the indoor unit where there is direct
sunlight on unit. The location is suitable for piping and
drainage and it must have a large distance between a door
and unit.

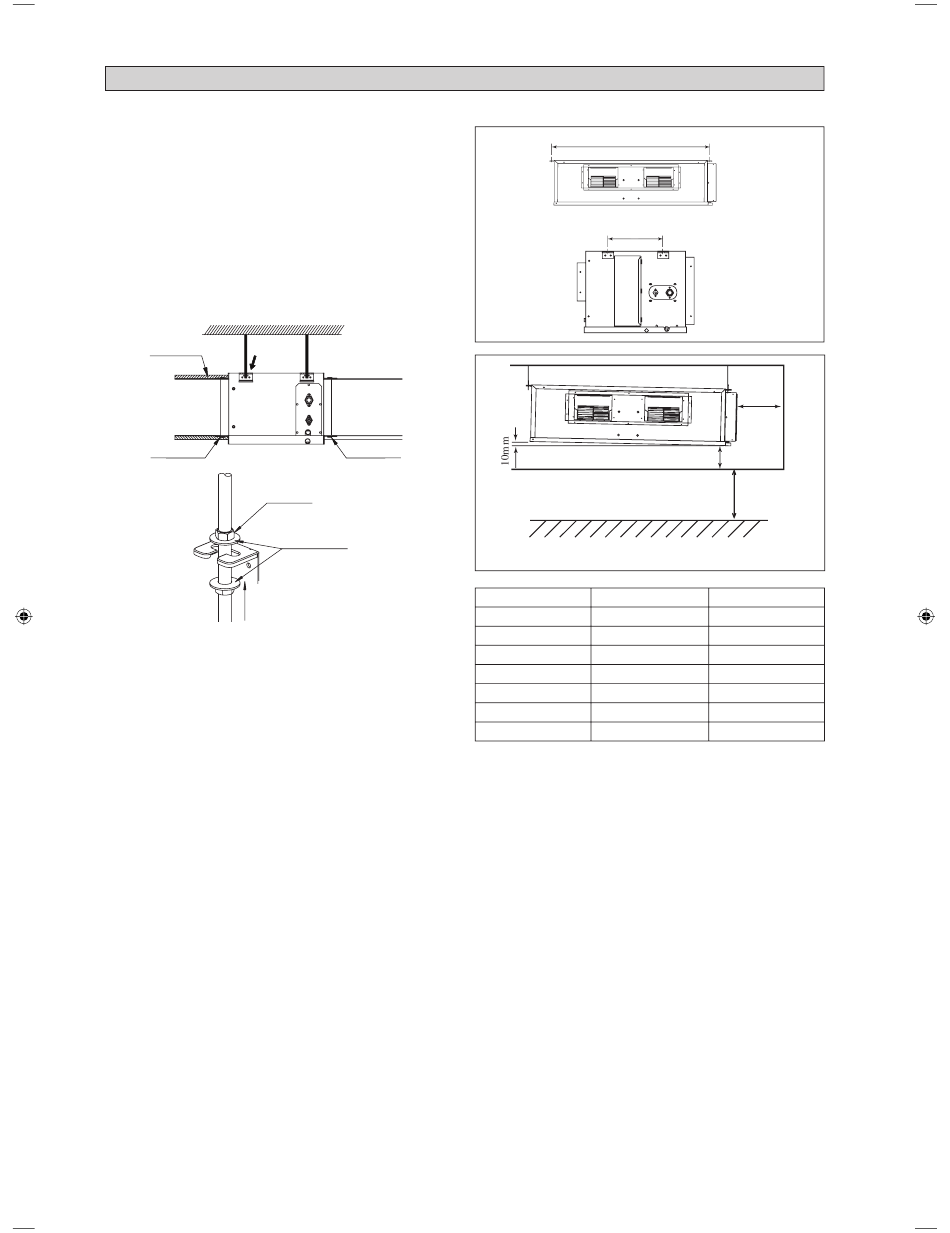

Ceiling Concealed Mounting
• Use the hanger supplied with the unit.
• Make sure that the ceiling is sufficiently strong to
withstand the weight.
See Detail A
Insulation material
(fi eld supply)
Air outlet side
Aluminium tape
(fi eld supply)
Field supply
Tighten
Detail A
All manuals and user guides at all-guides.com
INSTALLATION OF THE INDOOR UNIT
Air inlet side
Aluminium tape
(fi eld supply)
Washer for hanger
bracket (attached)
1-8
Center distance of axle (see drawing below)
A
A
L
L
300mm* or more
2300mm or more
* Can be smaller than 300mm if ceiling is removable.
5CCY A mm (inch)
10/15C/CR 881 (34.7)
20C/CR 1041 (41.0)
25C/CR 1176 (46.3)
28CR 959 (37.8)
38CR 1264 (49.8)
50CR 1326 (52.2)
60CR 1526 (60.1)
Provide clearance for servicing ease and optimal air fl ow as
shown in the diagram.
300mm
or more
Ceiling
Floor
L mm (inch)
225 (8.9)
225 (8.9)
225 (8.9)
339 (13.3)
401 (15.8)
266 (10.5)
266 (10.5)
