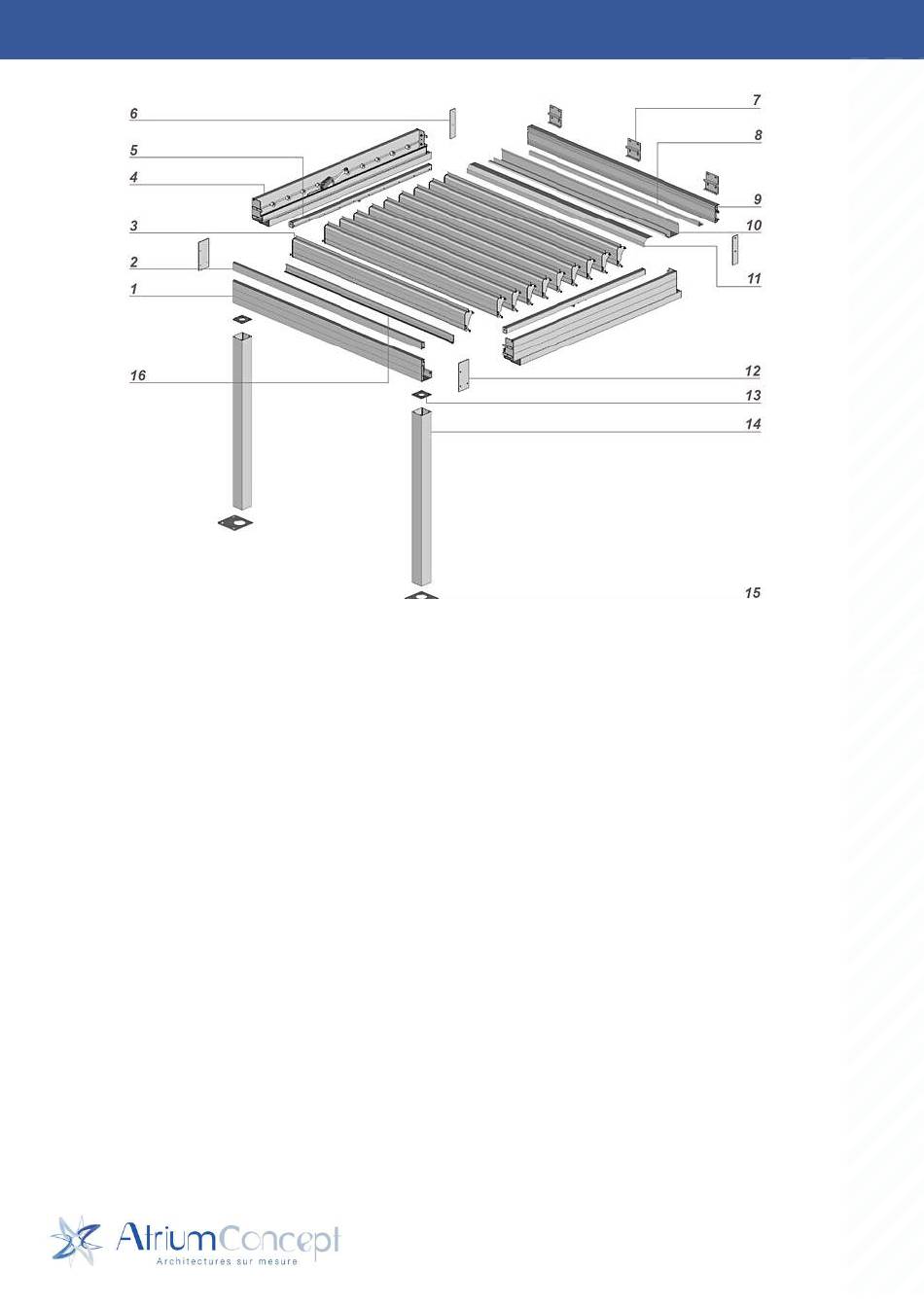

VUE ÉCLATÉE SIMPLE TRAVÉE - FUTUR ADOSSÉE
REPÈRE DÉSIGNATION
Profil coffre avant
1
2
Profil haut coffre avant
3
Lames
4
Chevron support de lame
5
Profil de manoeuvre
Joue de finition coffre
6
mural
7
Support mural
Profil de finition coffre
8
mural
REPÈRE DÉSIGNATION
Profil mural
9
10
Profil de recouvrement
Profil capot du profil de
11
recouvrement
12
Joue de finition coffre avant
13
Platine raccord coffre avant
Profil poteau
14
15
Platine de fixation 90° au sol
16
Profil de finition coffre avant
43
