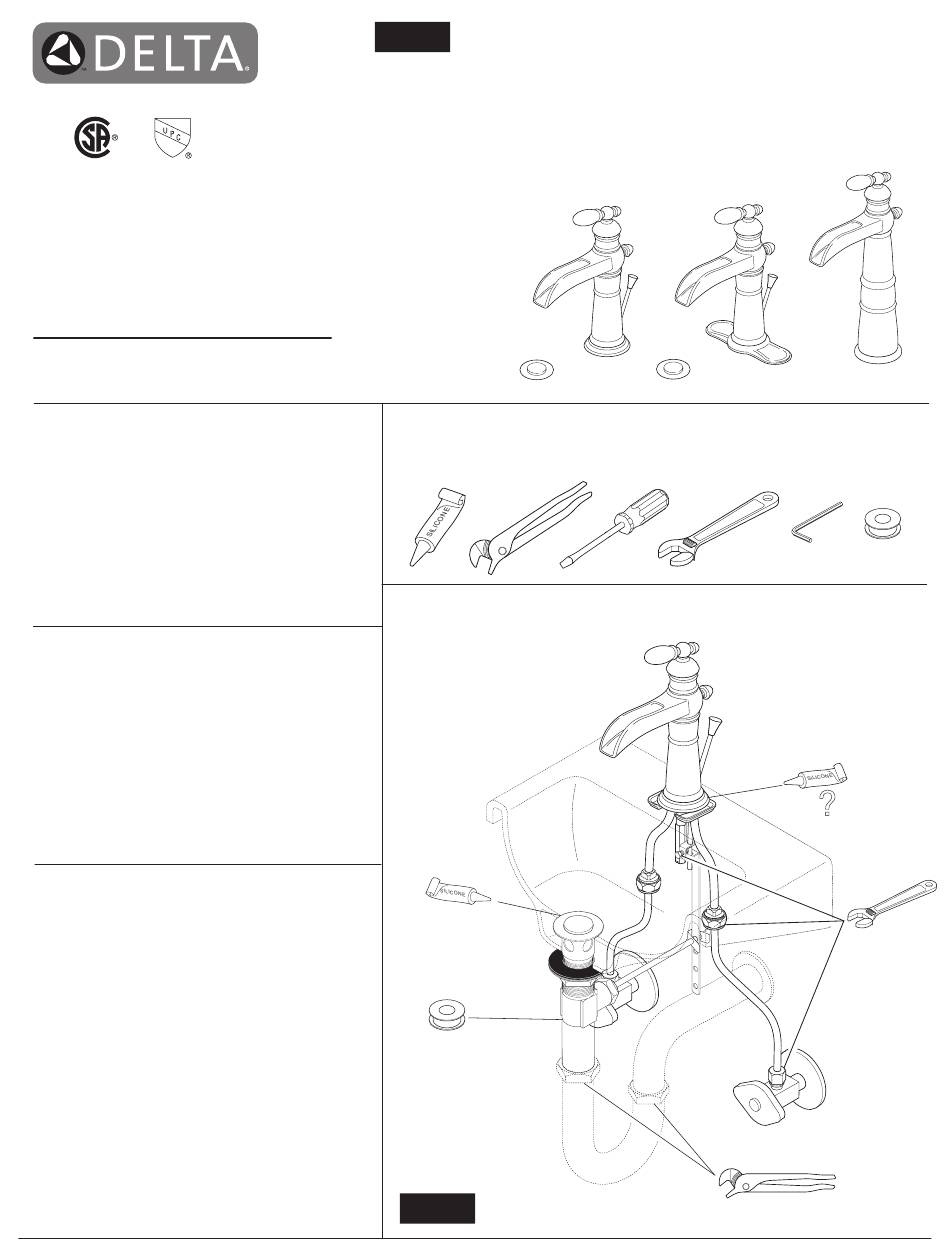

ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
Model/Modelo/Modèle
554 & 754
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para
el suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
SINGLE HANDLE LAVATORY
52931
CENTERSET FAUCETS
LLAVES MONOCONTROL DE MONTURA
DE CENTRO PARA LAVAMANOS
ROBINETS À ENTRAXE COURT À
UNE POIGNÉE
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
52931
1
T E FLO N
3/32" (2.38mm)
10/08/11
Rev. D
Publicité
Manuels Connexes pour Delta 554
Sommaire des Matières pour Delta 554
- Page 1 • To READ ALL warnings, care, and maintenance information. 3/32" (2.38mm) • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
- Page 2 1/2" (12.70mm) IPS 1/2 po (12.70mm) IPS Supply Line Connections Faucet Installation Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any Position faucet (1) with single or three hole escutcheon (2) and baseplate debris that could cause damage to internal parts.
- Page 3 Step 3b Step Pop-Up Installation Step 3c Remove stopper (1) and flange (2). Apply silicone to underside of flange (1). Insert Remove pivot nut (1). Install horizontal rod body (2) into sink. Screw flange (1) into body (2). (2) and stopper (3) as removable (4) or Screw nut (1) all the way down.
- Page 4 3/32" (2.38mm) Maintenance If faucet leaks from under handle: Remove handle and ensure bonnet nut (1) is tight. If leak persists: SHUT OFF WATER SUPPLIES. Replace valve cartridge (2) RP50261 or valve adapter (3) RP51737. If faucet leaks from spout outlet: SHUT OFF WATER SUPPLIES. Replace valve cartridge (2) RP50261.
- Page 5 RP51731▲ Handle Kit Juego de herrajes de la Manija Manette en kit RP51735 Bonnet Nut Bonete Tapón RP51736 Chapeau RP51732▲ Stem Adapter Lift Rod Assembly Adaptador para Espigas (Non Riser Model Only) Rallonge de tige RP50265 Barra de Alzar Valve Cartridge Tige de Manoeuvre Válvula de Cartucho RP51737...
- Page 6 MAKE ANY OTHER WARRANTY OF ANY KIND, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use & service. Replacement This warranty excludes all industrial, commercial &...
