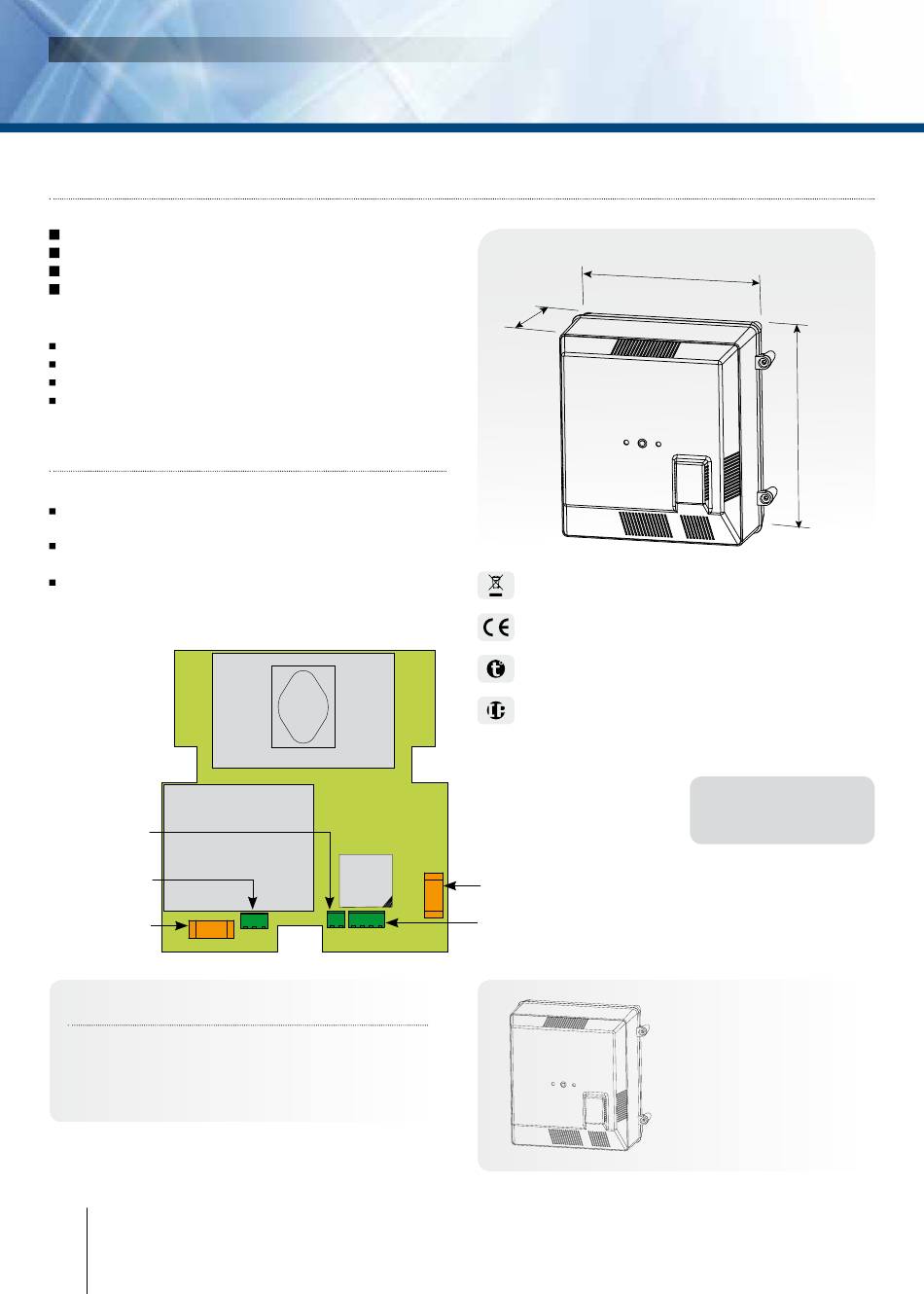

INSTALLATION MANUAL
AL500
Regulated/protected PSU (Optional: 12V battery)
PRODUCT PRESENTATION
Primary and secondary protection by fuses.
VO polycarbonate casing: fire-retardant.
4-screw mounting on all surfaces.
Optional: uninterruptible by adding a B/6.0
battery in a BB/2 casing.
Input voltage: 230V ± 10%, 50/60 Hz.
Power consumption: 0.43A.
Output: 12V dc.
Maximum load current: 4A.
INSTALLATION
When mounting on the wall, use the screw holes
at the four corners of the casing.
Pass the wires through the hole designed
for this purpose.
Option to operate as an uninterruptible
PSU by connecting an external 12V 7A/h
battery to the "BAT" input.
+ -
BAT
230V ac
TIME-DELAY
1A FUSE
COMPLIANT WITH EUROPEAN STANDARDS
EN 55022
EN 61000-4-2
EN 61000-3-2
EN 61000-4-3
EN 61000-3-3
EN 61000-4-4
This product must be installed in accordance
with the local safety standards.
cdvi.com
2
cdvigroup.com
5A FUSE
0V / 0V / 12V / 12V
+
-
0V 0V
12V 12V
Regulated output
BAT
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
92
60
WEEE & RoHS
CE Certification
0°C to +40°C
IP30
142
Do not adjust
the factory-set
potentiometer
Position the PSU
as on the left,
with the label
horizontal.
