About your new timer
• Line voltage selector switch (120/208/240V)
• Can function as a regular switch or as a programmable timer
• Up to 7 programs (7 on settings / 7 on settings) per week
• A single-pole switch can be connected to the timer to control the
load similar to a 3-way installation. For example, the timer can be
installed outside whereas the switch can be located remotely (e.g.,
inside the house)
• Can be used in various applications (see table below)
Load type Maximum load
Resistive
30 A
load
Inductive
10 A
load
1.5 hp @ 120 VAC
Motor
2.0 hp @ 240 VAC

Installation

Cut power at the main electrical panel to avoid electric shock.


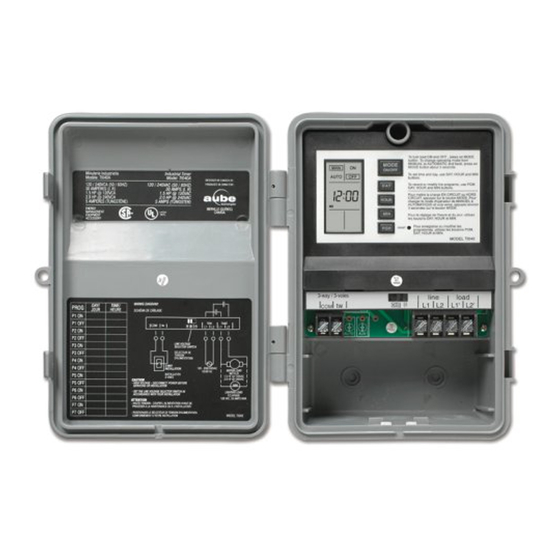

Open the TI040 door and remove the plastic cover to access the
mounting holes and wire terminals.

Install the TI040 to a vertical surface such as a wall by means of
three screws (not supplied).
WARNING: To prevent rain infiltration or any other liquid from
the top, the TI040 must be installed in the upright position as
shown above.

Remove the necessary knockouts at the bottom of the housing.

Install strain-relief bushings over the knockouts, pass the wires
through the bushings and secure them in place.

Perform the connections as shown on the wiring diagram.
NOTE: For a 3-way installation only, connect a regular single-
pole switch to the 3-way terminals of the timer as shown on the
wiring diagram.
TI040
All manuals and user guides at all-guides.com
Examples
• incandescent lights
• halogen lights
• block heater
• fluorescent lights
• compact fluorescent lights (CFL)
• sodium lamps
• electronic ballasts
• pool filter pumps
• fans
Knock-out

Select the proper input voltage by means of the voltage selector
1.
switch. (WARNING: Failure to do so can damage the product.)

Reinstall the plastic cover and apply power at the main electrical
panel.
Single-pole switch
(for 3-way installation)

Power-up
Mode display
2.
Program number
At power-on, 0:00 should flash. Otherwise, press reset using a paper
clip. If the display is blank, verify the power supply.

Setting the clock
NOTE: The switch displays the time in 24-hour format by default or
following a reset.

To change to 12-hour format (or vice versa), proceed as follows:
a) Press the MODE button to ensure the MAN or AUTO indica-
tor is displayed.
b) Press the MIN and HOUR buttons simultaneously and briefly
(0:00 display = 24-hour, 12:00 display = 12-hour).

Set the time using the HOUR and MIN buttons. If you have
selected the 12-hour format, ensure that PM appears on the
screen when an afternoon time is displayed.

Set the day by using the DAY button.

Press the MODE button to return to normal operation.
Installation and User Guide
Industrial Indoor / Outdoor Timer
Line voltage
selector
switch
Power supply
(120/208/
240 VAC)
On/Off display
• Briefly press the button to
turn the load On or Off.
• Press the button for 3
seconds to switch
between Automatic mode
and Manual mode.
Insert a paperclip
to reset the timer.
TI040
Motor
Lighting
3.
4.
