2. FRONT PANEL AND REAR PANEL ILLUSTRATION

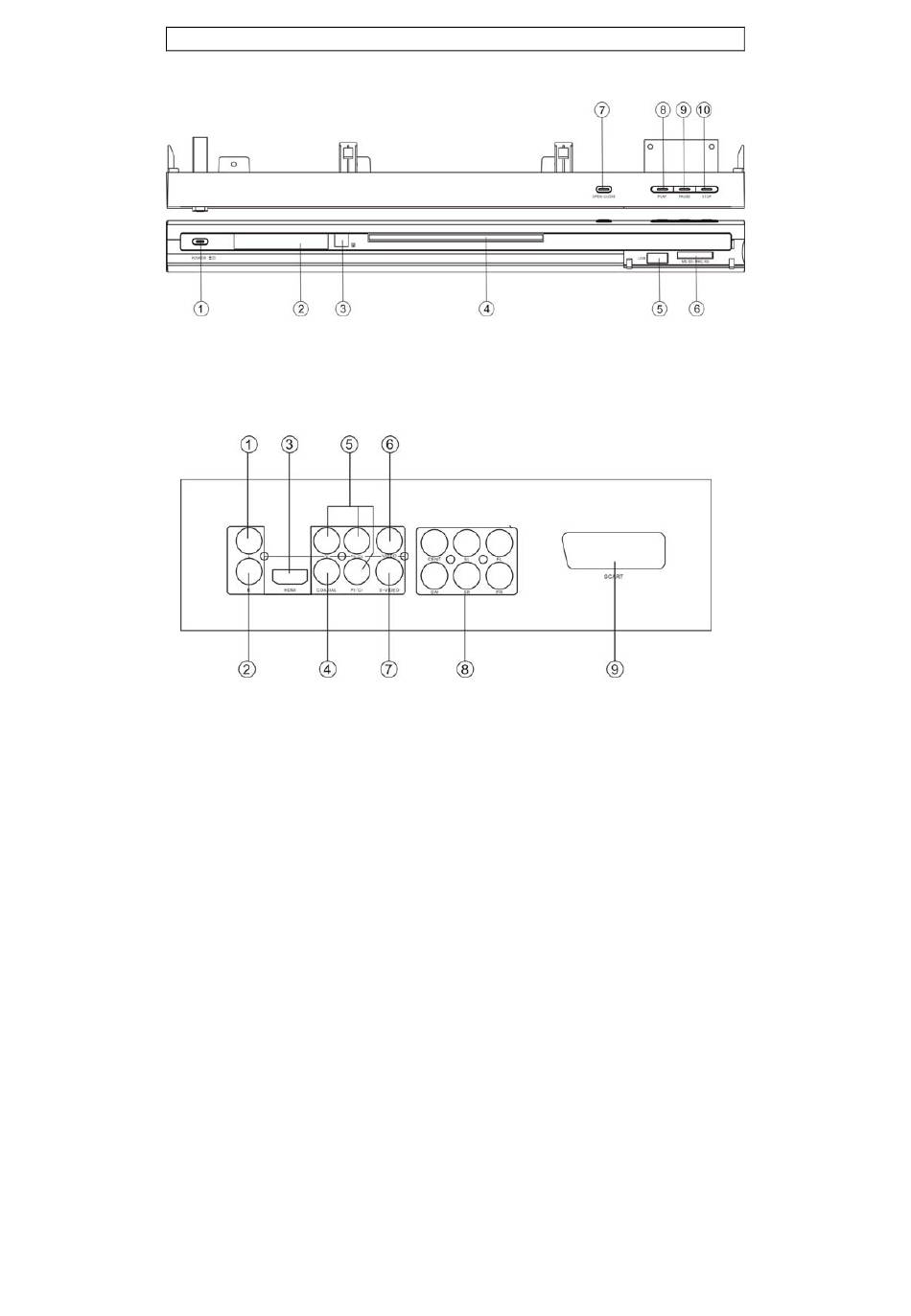

Front panel
① Power ON/OFF ② LED Screen ③ Sensor ④ Disc Tray ⑤ USB Card Reader
⑥ 4 in 1 Card Reader ⑦ Open/Close ⑧ Play ⑨ Pause ⑩ STOP
Rear panel
① Downmix Left ② Downmix Right ③ HDMI Output ④ Coaxial Output
⑤ Component Video Output ⑥Composite Video Output ⑦ S-video Output
⑧ 5.1 Channel Audio Output ⑨Scart Output
