Reference
EFFI-LASE-PSV
-XXX
EFFI-LASE-FAN
LED version
LX1
MX1
MX2
MX3
Maintenance
Regardless of maintenance, the product must be switch off. For more information, please refer to the datasheet.
CHANGE THE MASK
Optical Head
Unscrew the optical head (2x screws)
1
Place the new mask (here, L03)
4
To handle the optical components, wearing gloves is strongly recommended.
To clean the optical components: Use compressed air duster if there is dust.
To remove marks on the lens or the window, just a drop or two wiped of alcohol-based lens cleaning fluid in a gentle circular motion
with a cleaning tissue. Always apply the fluid to a tissue rather than the lens itself.
All manuals and user guides at all-guides.com
Structured LED lighting
-YYY
Wavelength (nm)
385 / 395 / 405
465
525
625
850
000 (White)
C-mount
Unscrew the C-mount & ring
2
Place delicately the cover & ring
5
Mini Parc du Verger – Bâtiment E
1 Rue de Terre Neuve
91940 LES ULIS, FRANCE
-ZZZ
Type of mask
L01 (1 line 50µm)
L02 (1 line 100µm)
L03 (1 line 10µm)
L04/05 (3 lines 50 µm)
L06 (5 lines 50µm)
L07 (100 lines 45µm)
L08 (22 line 50µm)
L09 (1 line 5µm)
L41 (1 line 75µm 40 lines 45 µm)
G01 (Round 50µm)
G02 (Round 50µm)
G03 (Grid 40*40 lines 50µm)
G04 (Grid 50*50 lines 50µm)
G05 (Squares 50*50µm²)
C02 (Cloud of dots 50%)
C03 (Cloud of dots 17%)
A01 (Cross 50µm)
A02 (Concentric circles)
A03 (Square 50µm)
EFFM-SPANNER-WRENCH
Tel: +33 9 72 38 17 80
Fax: +33 9 72 11 21 69
Email: contact@effilux.fr

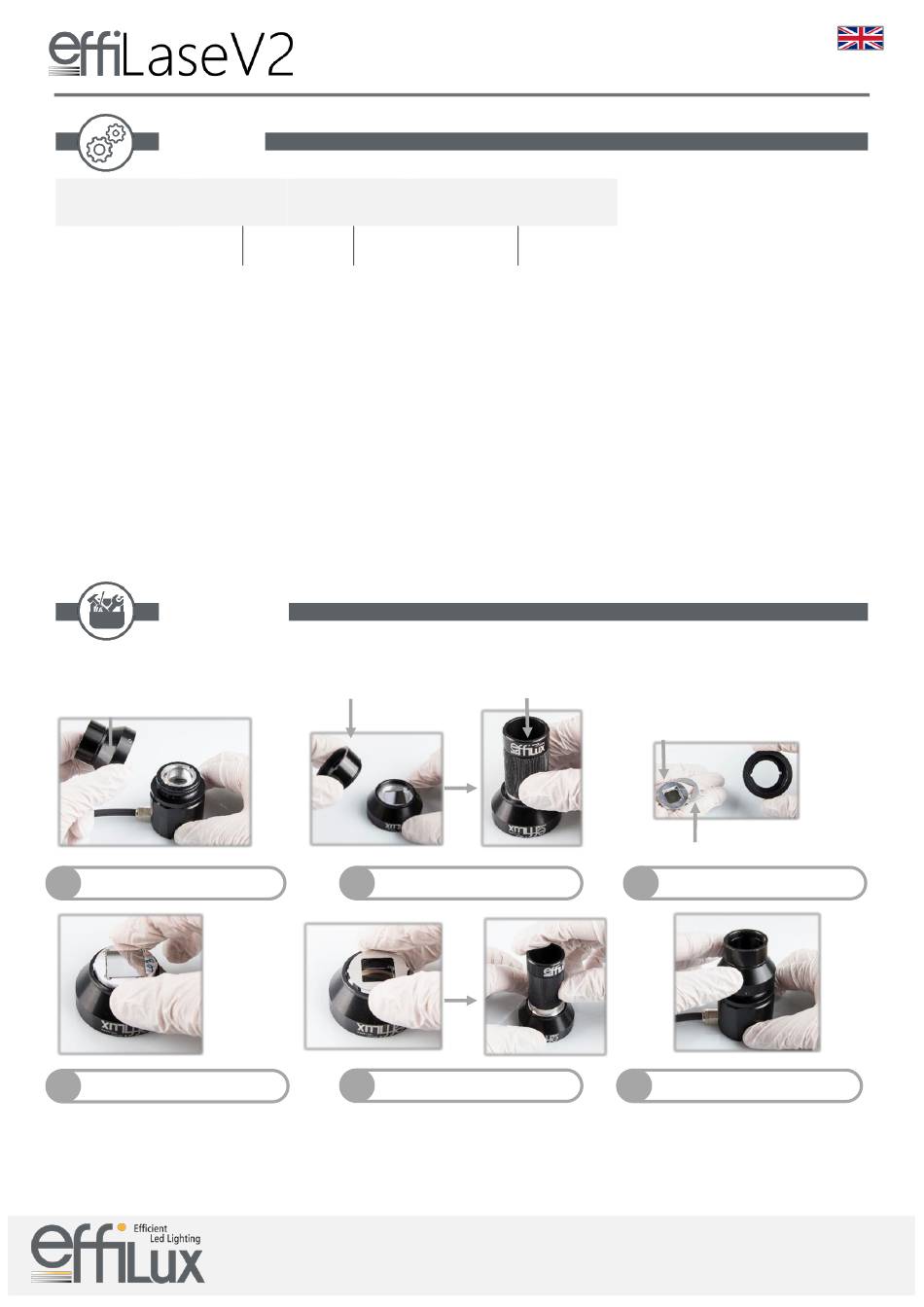

USER'S GUIDE EFFI-LASE-V2
Version 2.0.2017
Last update: August 17, 2017
Mask
Cover
Remove the mask & cover
3
Screw the C-mount & optical head
6
