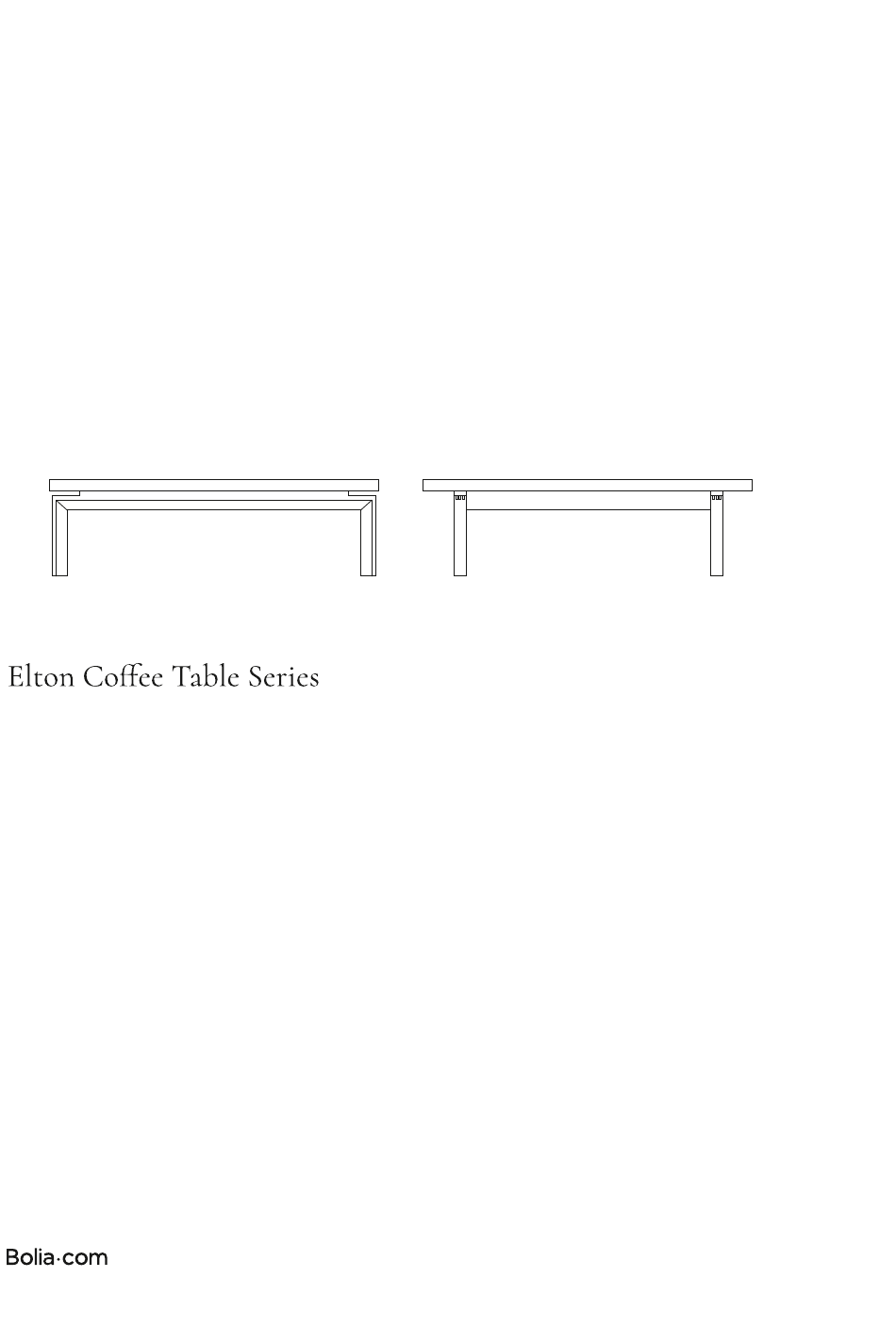

- Page 1 Product Manual Designed by Glismand & Rüdger Version 004 - Sep/2023 Vaerkmestergade 11-13 8000 Aarhus C, Denmark 51 50 51 22...
- Page 2 Always use recommended care and cleaning products. Never cover wet products. If a wet product is covered, it can be damaged. Further information can be found on our website: Bolia.com Technical information As we are constantly developing and improving our products, design and technical changes may...
- Page 3 Warnings GB: Please tighten the screws/legs after 4-5 weeks of use and then subsequently every 4-5 month. DK: Spænd skruerne/benene efter 4-5 ugers brug og derefter hver 4.-5. måned DE: Ziehen Sie die Schrauben/Beine nach 4 bis 5 Wochen Gebrauch und anschließend alle 4 bis 5 Monate nach.
- Page 4 Warnings GB: DANGER OF TIPPING OVER – do not use furniture as a climbing assist DK: FARE FOR AT VÆLTE – brug ikke møbler som klatrehjælp DE: KIPPGEFAHR – Möbel nicht als Aufstiegshilfe verwenden NO: VELTEFARE – ikke bruk møblene som klatrehjelp SE: TIPPRISK –...
- Page 5 Fittings and product parts B x 4 pcs C x 4 pcs D x 4 pcs A x 4 pcs Barrel nut Screw Nut M8 Spacer M8 x x mm M8 x 60 mm F x 1 pcs E x 4 pcs Gx 8 /10 pcs H x 8 / 10 pcs Allen screw...
- Page 6 Assembly steps STEP 01 STEP 02 Page 6 of 11...
- Page 7 Assembly steps STEP 03 Page 7 of 11...
- Page 8 Assembly steps STEP 04 DETAIL 01 DETAIL 01 STEP 04.1 Page 8 of 11...
- Page 9 Assembly steps STEP 05 Page 9 of 11...
- Page 10 Assembly steps STEP 06 Page 10 of 11...
- Page 11 Elton Coffee Table Series. Measurements & Maximum load max. 20 kg. / 44 lb. 20 kg 44 lb W x D x H W x D x H 624 x 624 x 420 mm 624 x 624 x 280 mm...
