Champlain ACM-125 Installation page 2

ACM-125 / ACM-125C
Universal Pool Light

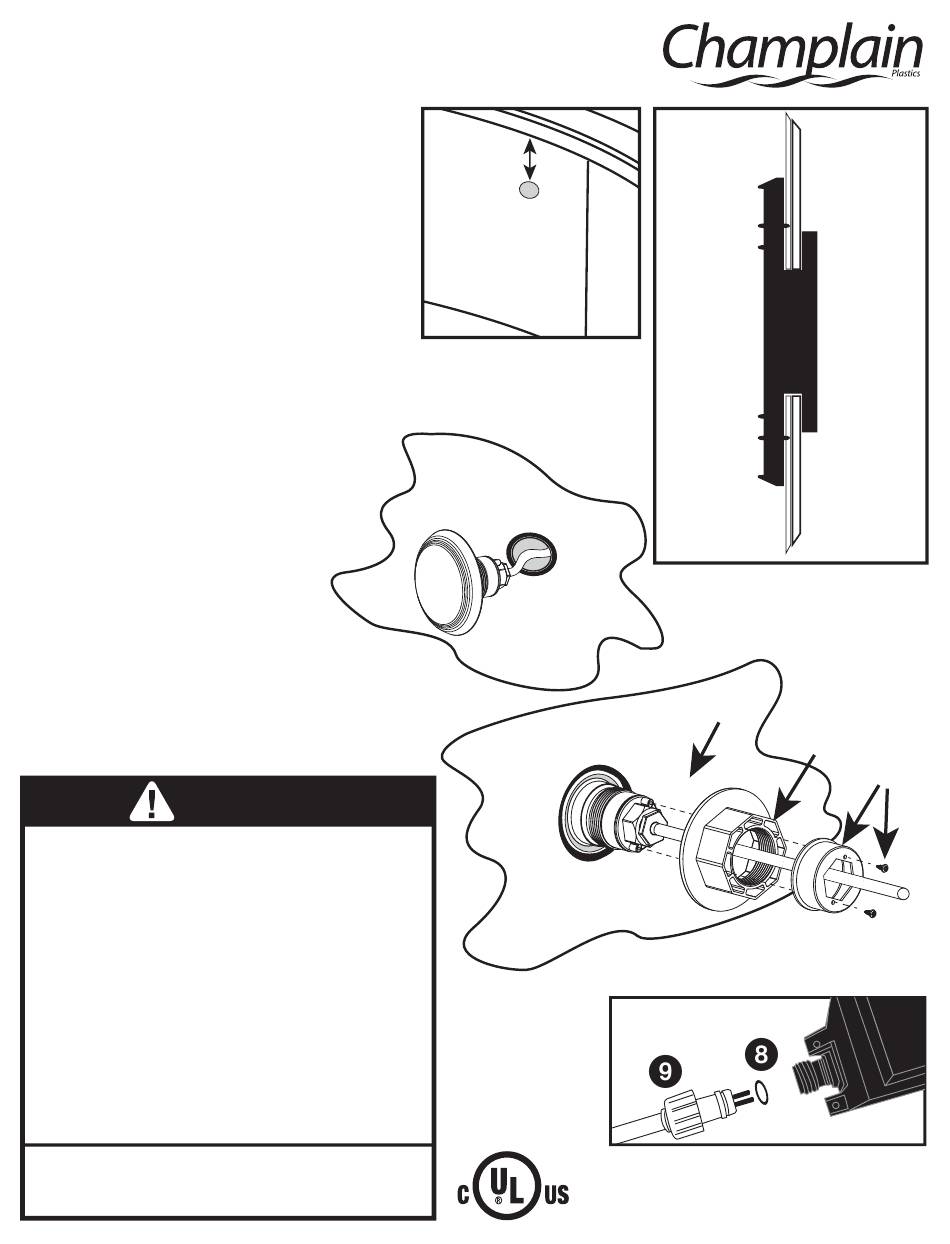

INSTALLATION ON WALL
ABOVE-GROUND POOL
To be performed by an authorized
dealer ONLY
*GASKET SOLD SEPARATELY
1) Lower the water level of the pool.
2) Using a 2" (50.8mm) cutting devise,
drill a hole through the pool wall and liner.
3) Insert the gasket from the inside of the pool through
the 2" hole in the wall, having the large diameter inside
the pool and the small diameter on the outside.
4) Thread the electrical cord through
the hole (as per drawing).
5) Insert the plastic washer.
6) Secure the light with the plastic nut.
DO NOT OVERTIGHTEN.
7) Secure the plastic nut with
safety cap and the supplied screws.
8) Make sure the transformer is out
of the water. Slide plastic O-ring onto
transformer plug.
9) Insert pins into transformer outlet and secure with cap.
10) The transformer should be plugged into
a GFCI outlet.
WARNING
• Risk of electrical shock, if instructions are not
followed. Connect only to a grounded GFCI outlet that
is a minimum of 10 feet (3 m) away from the pool. DO
NOT USE EXTENSION CORDS.
• The light shall be installed in or on a wall of the pool,
with the top of the lens opening NO LESS THAN 18"
(45CM) BELOW THE NORMAL WATER LEVEL OF THE
POOL, EXCEPT when light is installed in an area of the
swimming pool that is not used for swimming and the
lens is adequately protected to prevent anyone from
coming in contact with it.
• Do not let children use this device unsupervised.
• For use on permanent above-ground pools only.
• Do not use the light if the lens, transformer or cord is
damaged.
WINTER STORAGE: Freezing weather may damage
light fixture. Disconnect light and remove from the
pool. Store in dry space at room temperature.
All manuals and user guides at all-guides.com
·
• 2" diameter hole.
• More than 18"
(45cm) below
normal water level.
¿
Pool Liner
18" +
»
Large side of
gasket* on
INTERIOR
of pool.
Pool Liner
*GASKET SOLD SEPARATELY
´
87 Pillsbury Road, Rouses Point, NY 12979
Pool wall
Small side of
gasket* on
EXTERIOR
of pool.
Pool wall
²
¶
Champlain Plastics Inc.
(INS-ACM125-rev2)
