The Traynor YCV20
Introduction
The Traynor YCV20 is a professional all-tube guitar combo. It draws on the rich tradition of
Traynor guitar amplifiers and combines the best of vintage design combined with modern
principles, manufacturing techniques, and technology.
Features
• 100% Designed & Manufactured in North America!
• All-tube design with two 6BQ5 and three 12AX7A Premium tubes.
• A Single 12-inch Celestion® speaker for great classic sound and performance.
• Using all plywood for the construction of the cabinet guarantees the durability and rigidity
that made Traynor famous.
• Classic Long-Style Accutronics® Reverb, with dual springs, for authentic vintage sound.
• A special DC powered filament supply on preamp tubes ensures reduced hum.
• Cathode bias for the classic tone.
• Fully regulated power supply ensures ultra low noise.
• The best warranty in the business: a 2-year unlimited, transferable
"even if you break it" warranty (
• Traynor TFS-2B latching dual-footswitch, with 10-foot cable included.
• External Speaker jack and selectable defeat for disabling the internal speaker.
• Headphone jack for silent practicing.
• D.I. Output for connections straight to the 'board.
Channel 1
1

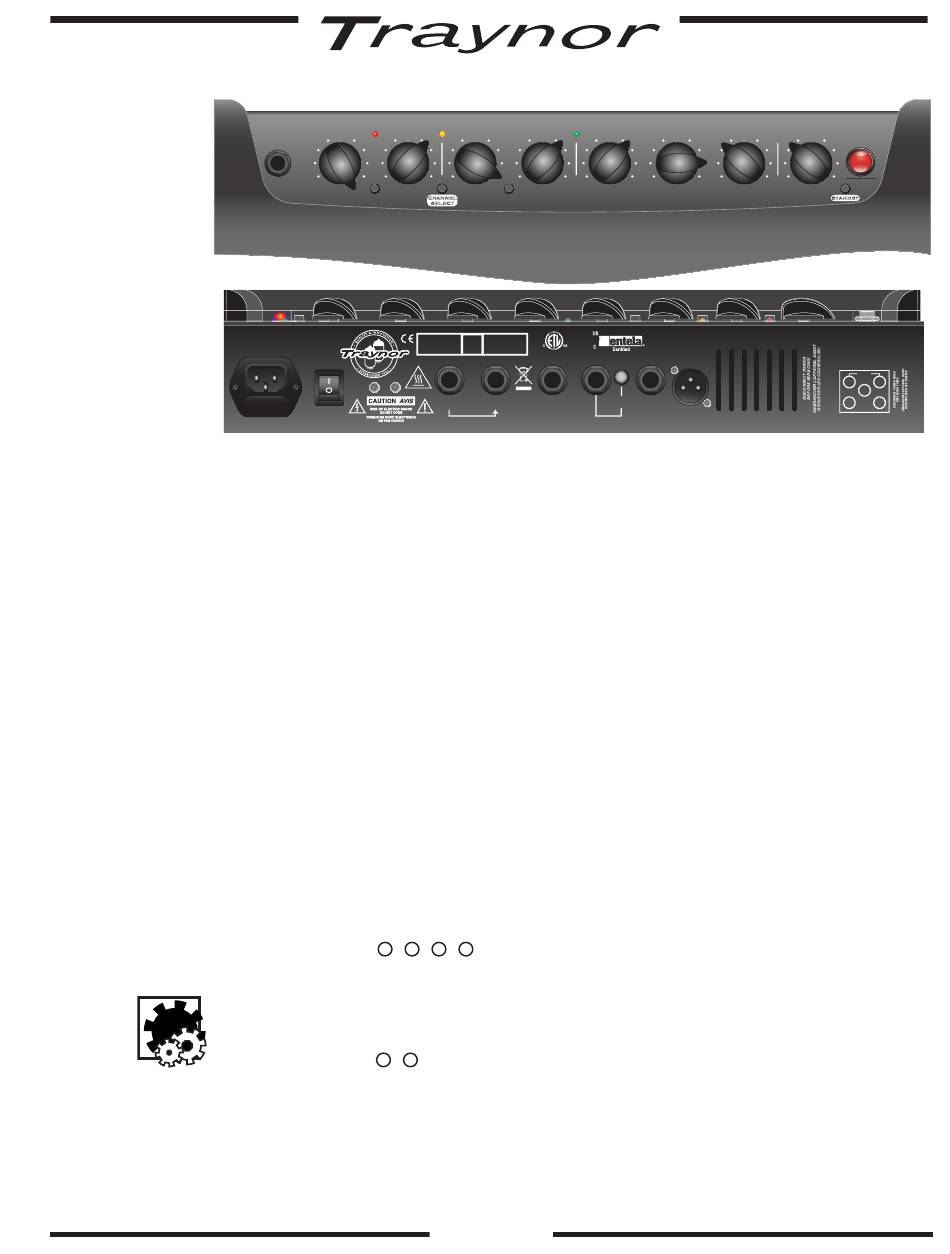

Channel 1 is the lead/overdrive channel and is selected either by the Channel Select switch on
the control panel or by the Channel Select button on the footswitch* pedal. A Yellow LED located
next to the Channel 1 Volume control illuminates when Channel 1 is active.
Note: Plugging in the footswitch deactivates the panel-mounted Channel and Boost controls.
Boost Switch (C
1)
h
3
4
A boost circuit is provided to help achieve a-bit-more overdrive, especially for leads. The
boost can be selected by the front panel switch or through the footswitch. A Red LED
illuminates to indicate when the boost is active.
2
Gain
Volume
5
5
10
0
10
0
10
CHANNEL
BRIGHTNESS
SELECT
MODEL TYPE: YS1006
A-Z532R / 2v0
CH. Select
Ext. Spkr
EFX / Line
/ Boost
Send
Return
Footswitch
valid in the USA and Canada only
2
5
6
1
Bass
Middle
Treble
5
5
5
0
10
0
10
0
10
DESIGNED & MANUFACTURED BY
YORKVILLE SOUND • Toronto, CANADA
Phones
D.I. Out
Int. Spkr
Defeat
).
Reverb
5
Power
0
10
STANDBY
Custom
Valve
TRAYNOR YCV20 II
PREAMP
12AX7
12AX7
SPLITTER
V2
V1
12AX7
V3
POWER
POWER
6BQ5
6BQ5
V4
V5
